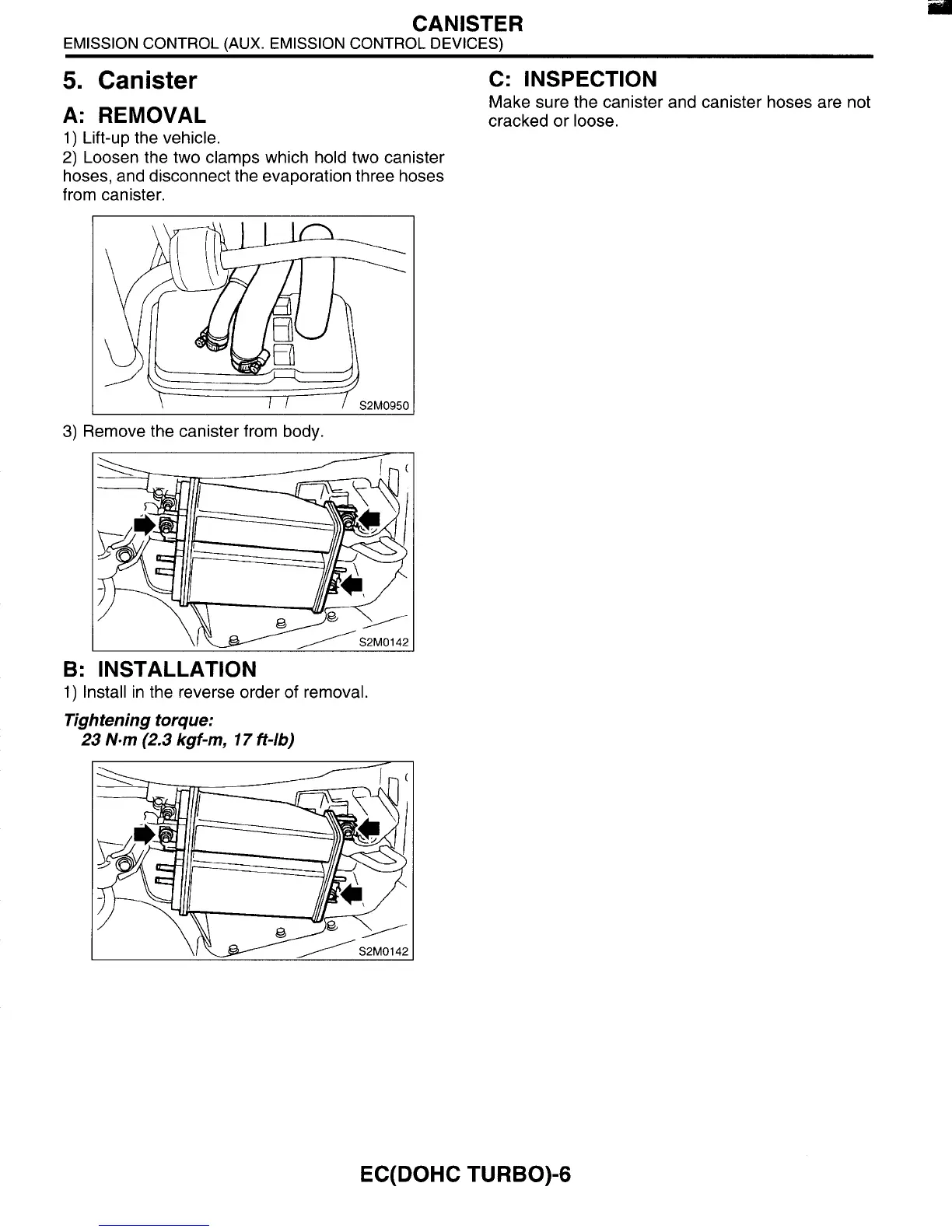

CANISTER
EMISSION CONTROL
(AUX.
EMISSION CONTROL DEVICES)
5.
Canister C: INSPECTION
A:
REMOVAL cracked or loose.
1)
Lift-up the vehicle.
2)
Loosen the two clamps which hold two canister
hoses, and disconnect the evaporation three hoses
Make sure the canister and canister hoses are not
from canister
\
II
/
S2M0950
3)
Remove the canister from body.
B:
INSTALLATION
1)
Install in the reverse order of removal.
Tightening torque:
23 N.m (2.3 kgf-m,
17
ff-lb)
EC(D0HC TURBO)-6
