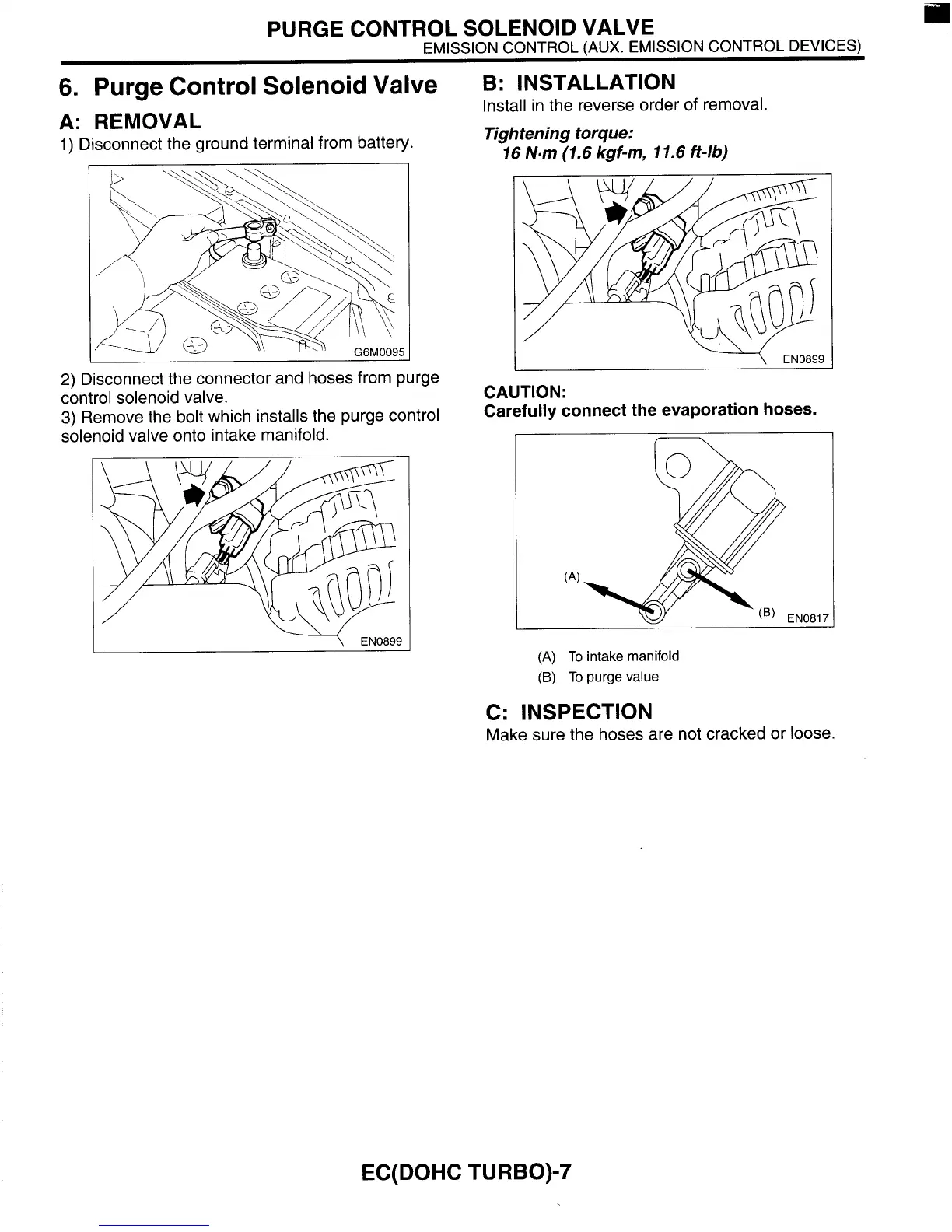

PURGE CONTROL SOLENOID VALVE
EMISSION CONTROL
(AUX.
EMISSION CONTROL DEVICES)
6.
Purge Control Solenoid Valve
A:
REMOVAL
1)
Disconnect the ground terminal from battery.
2)
Disconnect the connector and hoses from purge
control solenoid valve.
3)
Remove the bolt which installs the purge control
solenoid valve onto intake manifold.
EN0899
B: INSTALLATION
Install in the reverse order
of
removal.
Tightening torque:
76
N.m
(7.6
kgf-m,
7
7.6
ft-16)
9
EN0899
CAUTION:
Carefully connect the evaporation hoses.
(A)
To
intake manifold
(B)
To
purge value
C: INSPECTION
Make sure the hoses are not cracked or loose.
EC(D0HC TURBO)-7
