FUEL TANK PRESSURE SENSOR
EMISSION CONTROL
(AUX.
EMISSION CONTROL DEVICES)

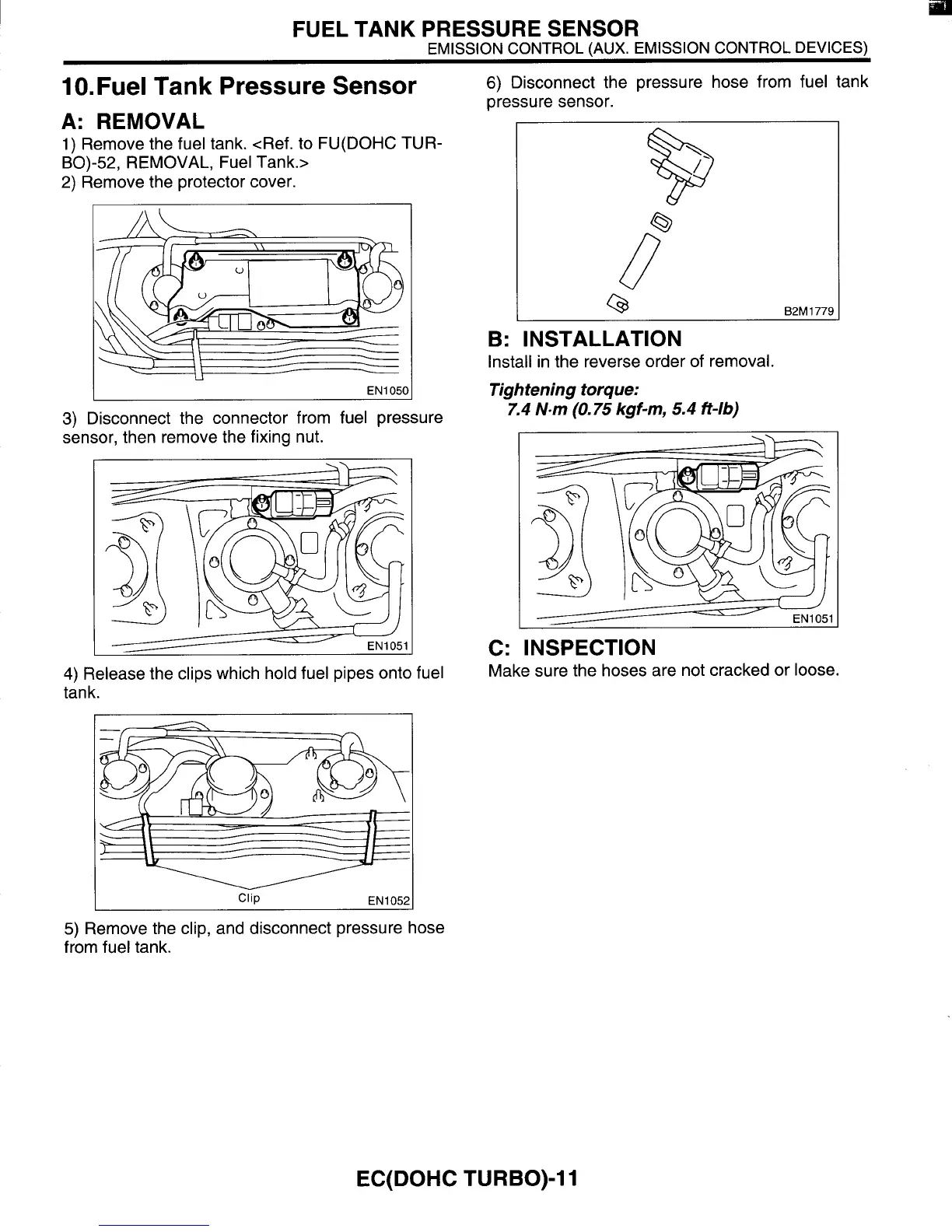

10.Fuel Tank Pressure Sensor
A:
REMOVAL
1)
Remove the fuel tank. <Ref. to FU(D0HC TUR-
BO)-52,
REMOVAL,
Fuel Tank.>
2)
Remove the protector cover.
EN1
0%
3)
Disconnect the connector from fuel pressure
sensor, then remove the fixing nut.
4)
Release the clips which hold fuel pipes onto fuel
tank.
I
Clip
EN1
052
I
5)
Remove the clip, and disconnect pressure hose
from fuel tank.
6)
Disconnect the pressure hose from fuel tank
pressure sensor.
G3
B2M
1779
B: INSTALLATION
Install in the reverse order of removal.
Tightening torque:
7.4 N-m (0.75 kgf-m, 5.4
ft-lb)
C: INSPECTION
Make sure the hoses are not cracked or loose.
EC(D0HC TURBO)-I 1
To Next Page
