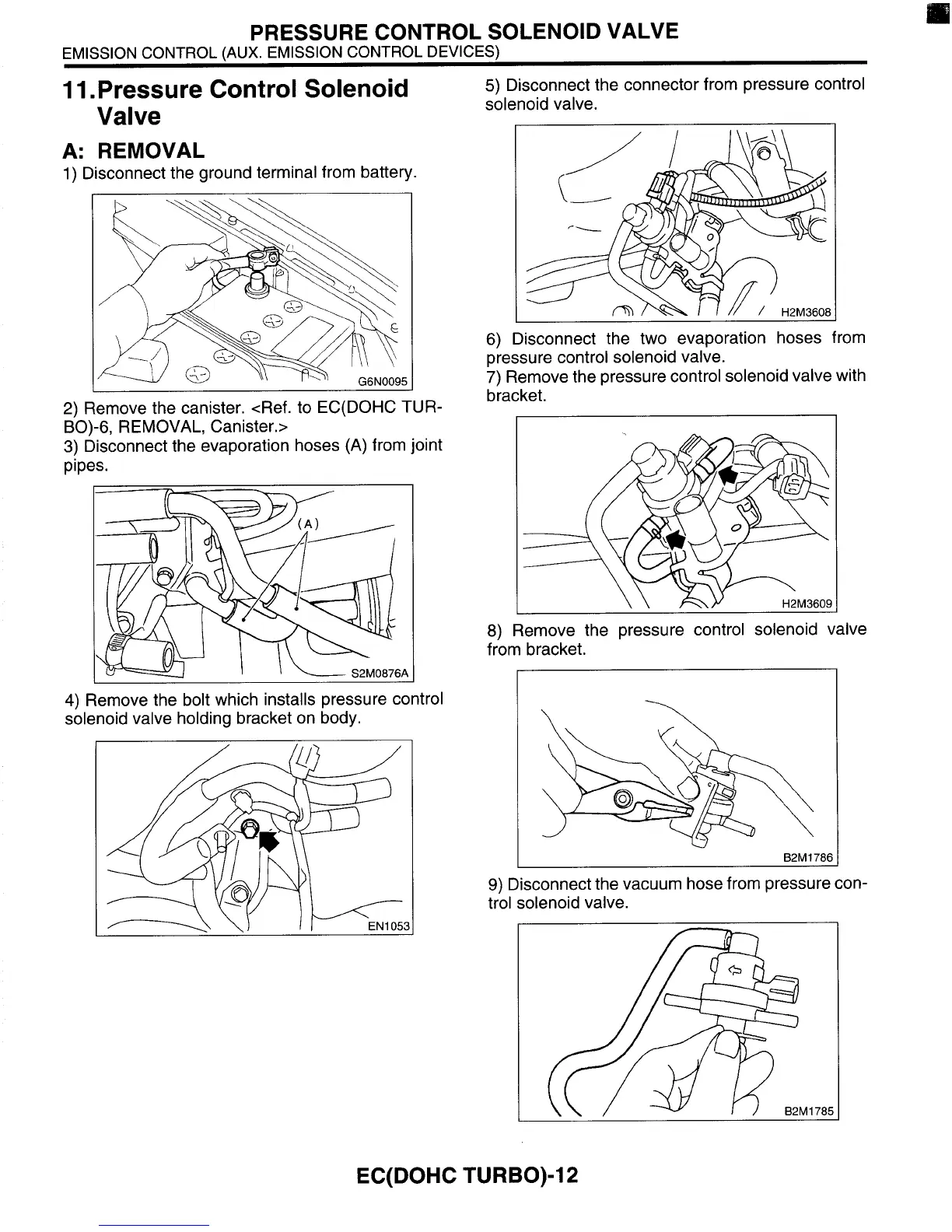

PRESSURE CONTROL SOLENOID VALVE
EMISSION CONTROL
(AUX.
EMISSION CONTROL DEVICES)
11
.Pressure Control Solenoid
Valve
A:
REMOVAL
1
)
Disconnect the ground terminal from battery.
2)
Remove the canister. <Ref. to EC(D0HC
TUR-
BO)-6,
REMOVAL,
Canister.>
3)
Disconnect the evaporation hoses
(A)
from joint
pipes.
4) Remove the bolt which installs pressure control
solenoid valve holding bracket on body.
5)
Disconnect the connector from pressure control
solenoid valve.
6)
Disconnect the two evaporation hoses from
pressure control solenoid valve.
7)
Remove the pressure control solenoid valve with
bracket.
8)
Remove the pressure control solenoid valve
from bracket
.
>
I
B2M1786
I
9)
Disconnect the vacuum hose from pressure con-
trol solenoid valve.
EC(D0HC TURBO)-I
