DRAIN FILTER
EMISSION CONTROL
(AUX.
EMISSION CONTROL DEVICES)

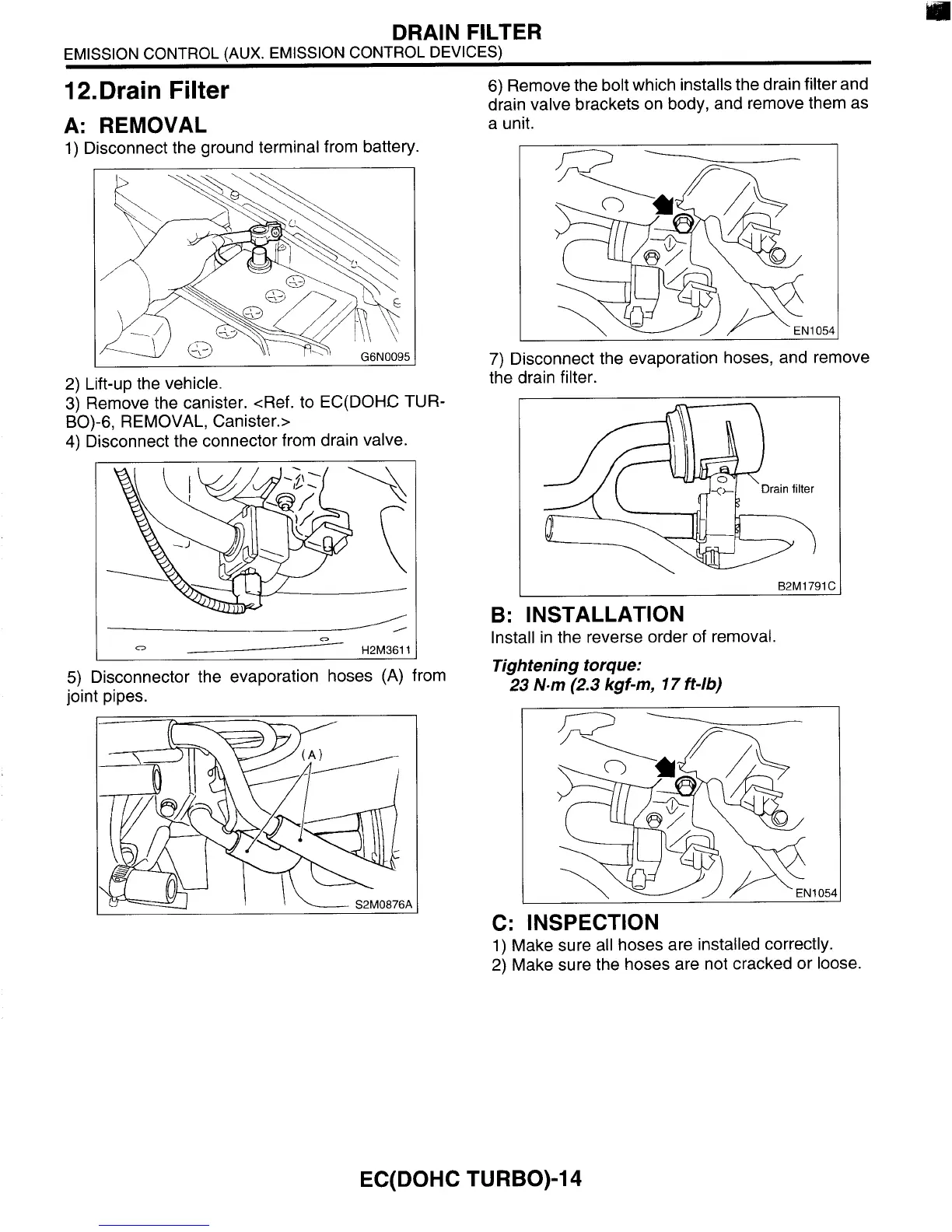

12.Drain Filter
A:
REMOVAL
1)
Disconnect the ground terminal from battery.
2)
Lift-up the vehicle.
3)
Remove the canister. <Ref. to EC(D0HC TUR-
BO)-6,
REMOVAL, Canister.>
4)
Disconnect the connector from drain valve.
/
0
H2M3611
5)
Disconnector the evaporation hoses (A) from
joint pipes.
6)
Remove the bolt which installs the drain filter and
drain valve brackets on body, and remove them as
a unit.
7)
Disconnect the evaporation hoses, and remove
the drain filter.
I
B2M
1791
C
B: INSTALLATION
Install in the reverse order of removal.
Tightening torque:
23
N-m
(2.3
kgf-m,
17
ff-lb)
C: INSPECTION
1)
Make sure all hoses are installed correctly.
2)
Make sure the hoses are not cracked or loose.
EC(D0HC TURBO)-14
