DRAIN VALVE
EMISSION CONTROL
(AUX.
EMISSION CONTROL DEVICES)

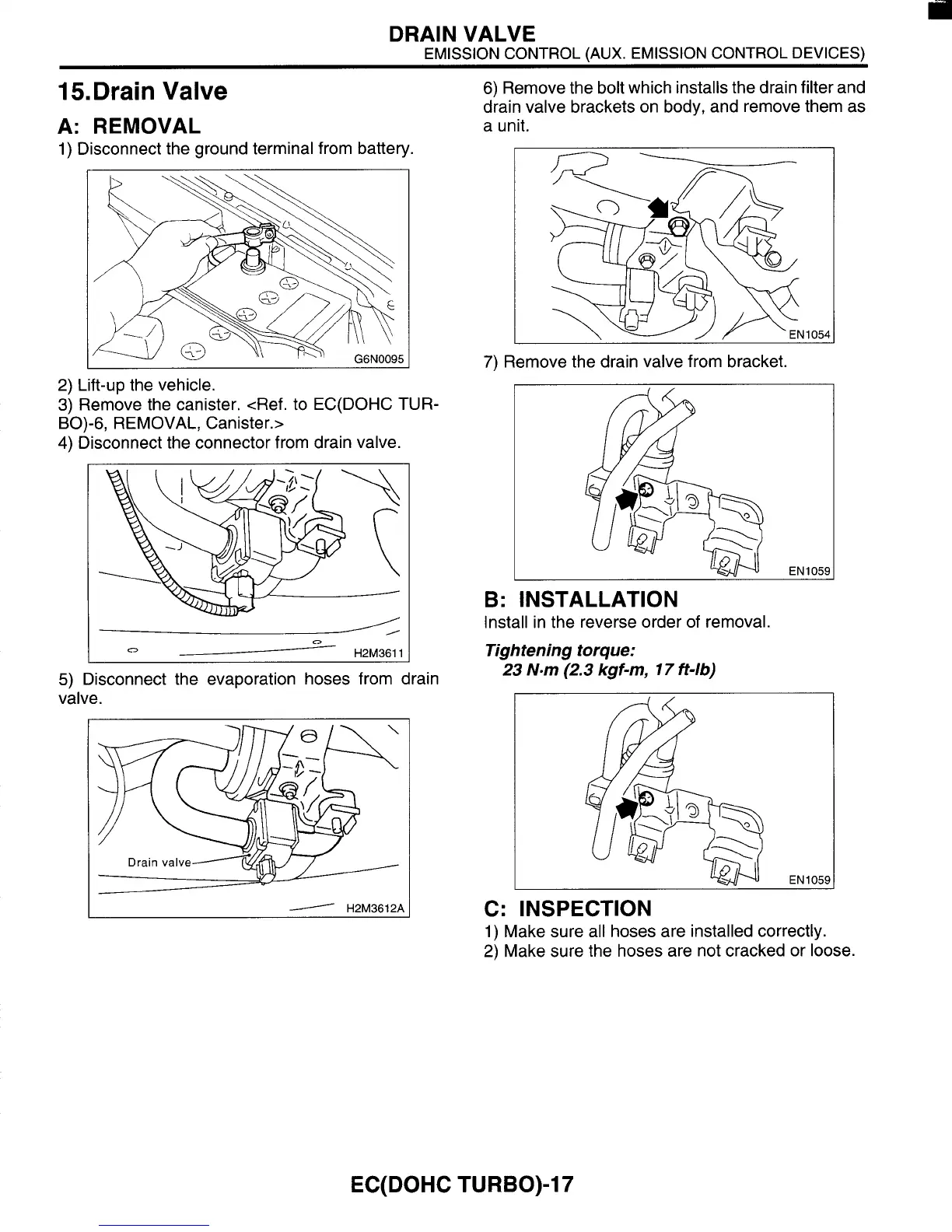

15.Drain
Valve
A:
REMOVAL
1)
Disconnect the ground terminal from battery.
6)
Remove the bolt which installs the drain filter and
drain valve brackets on body, and remove them as
a unit.
2)
Lift-up the vehicle.
3)
Remove the canister. <Ref. to EC(D0HC
TUR-
BO)-6,
REMOVAL, Canister.>
4) Disconnect the connector from drain valve.
B:
7)
Remove the drain valve from bracket.
/
0
0-
H2M3611
5)
Disconnect the evaporation hoses from drain
valve.
-------
H2M3612AI
INSTALLATION
Install in the reverse order of removal.
Tightening torque:
23
N-m
(2.3
kgf-m,
17
ft-16)
EN1055
EN1055
C: INSPECTION
1)
Make sure all hoses are installed correctly.
2)
Make sure the hoses are not cracked or loose.
EC(D0HC TURBO)-17
