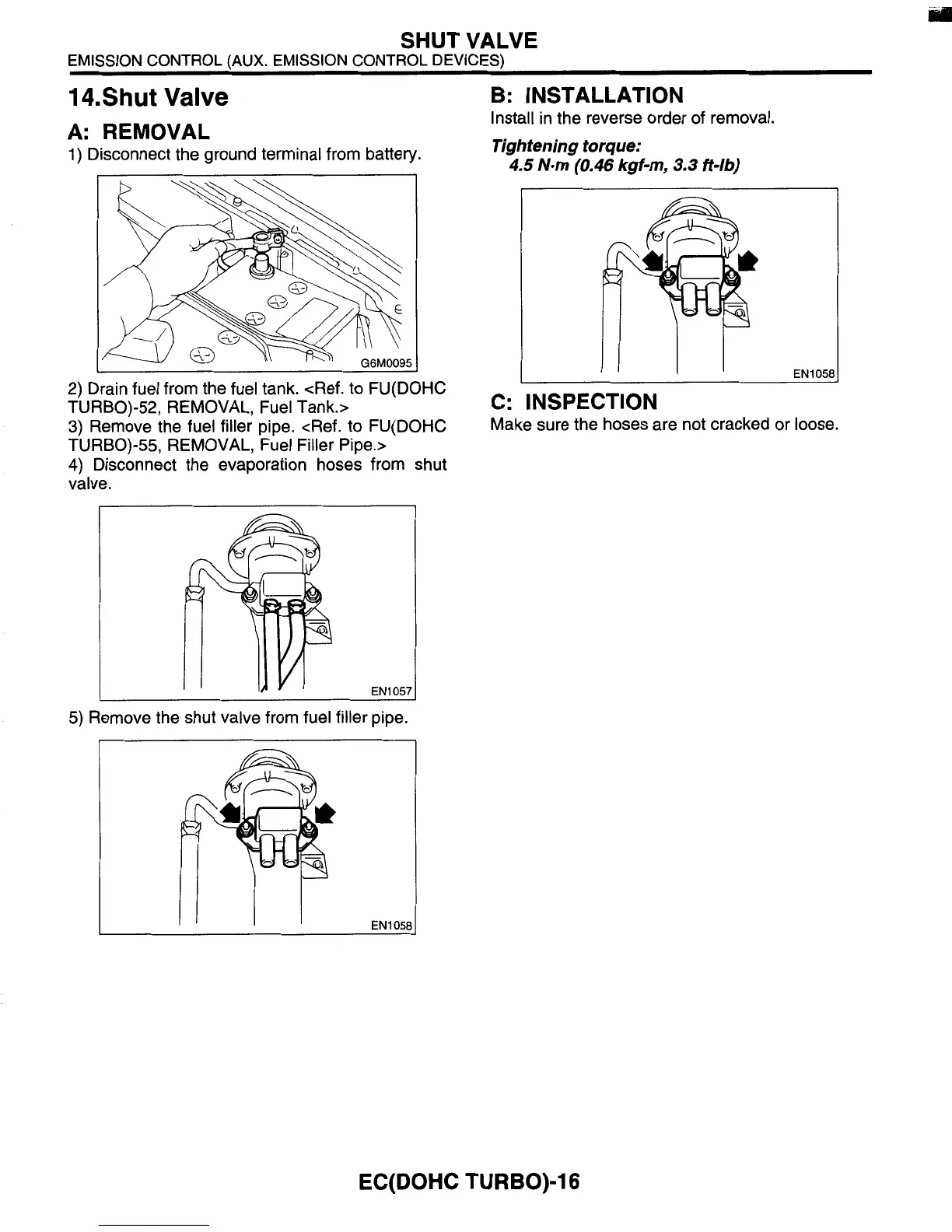

SHUT VALVE
EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES)
14.Shut Valve B: INSTALLATION
Install in the reverse order of removal.
Tightening torque:
A: REMOVAL
1) Disconnect the ground terminal from battery.
4.5 N.m (0.46 kgf-m, 3.3 ft-lb)
2) Drain fuel from the fuel tank. <Ref. to FU(D0HC
TURBO)-52, REMOVAL, Fuel Tank.>
3) Remove the fuel filler pipe. <Ref. to FU(D0HC
TURBO)-55, REMOVAL, Fuel Filler Pipe.>
4) Disconnect the evaporation hoses from shut
valve.
EN1 057
5) Remove the shut valve from fuel filler pipe.
EN105.5
I I
EN1
I
- 5E
-
C: INSPECTION
Make sure the hoses are not cracked or loose.
EC(D0HC TURBO)-16
