I

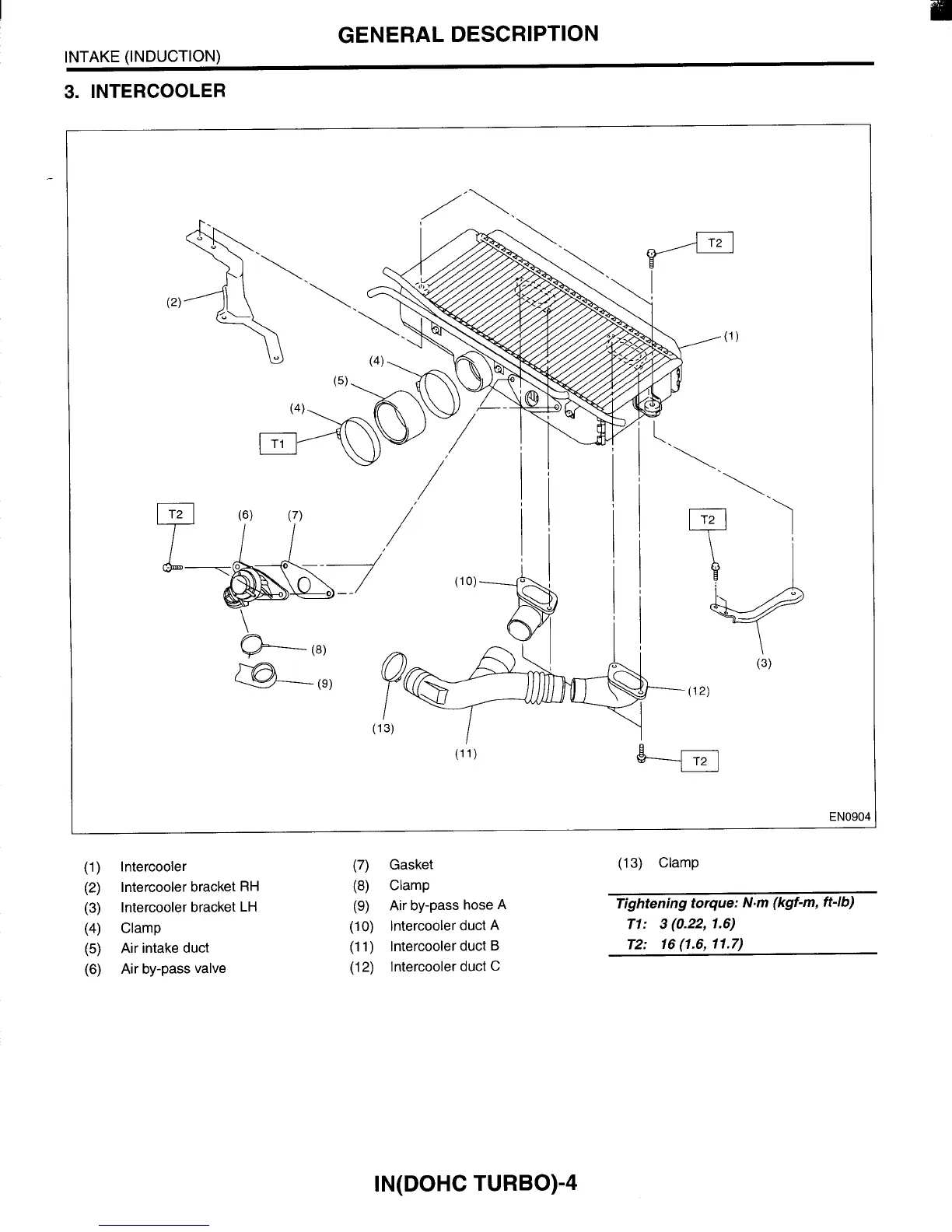

GENERAL DESCRIPTION
INTAKE (INDUCTION)
3. INTERCOOLER
/
.
GL
\
/
EN090,
(1) Intercooler
(7) Gasket (13) Clamp
(2) Intercooler bracket RH (8) Clamp
(3) Intercooler bracket
LH (9) Air by-pass hose A
(4) Clamp
(IO) Intercooler duct A
(5) Air intake duct
(1 1) Intercooler duct B
(6) Air by-pass valve
(12) Intercooler duct C
Tightening torque: N.m (kgf-m, ft-lb)
T1: 3 (0.22, 1.6)
T2: 16 (1.6, 11.71
IN(D0HC TURBO)-4
