INTAKE (INDUCTION)
GENERAL DESCRIPTION
4. TURBOCHARGER
-/ I
&. I-
EN111E

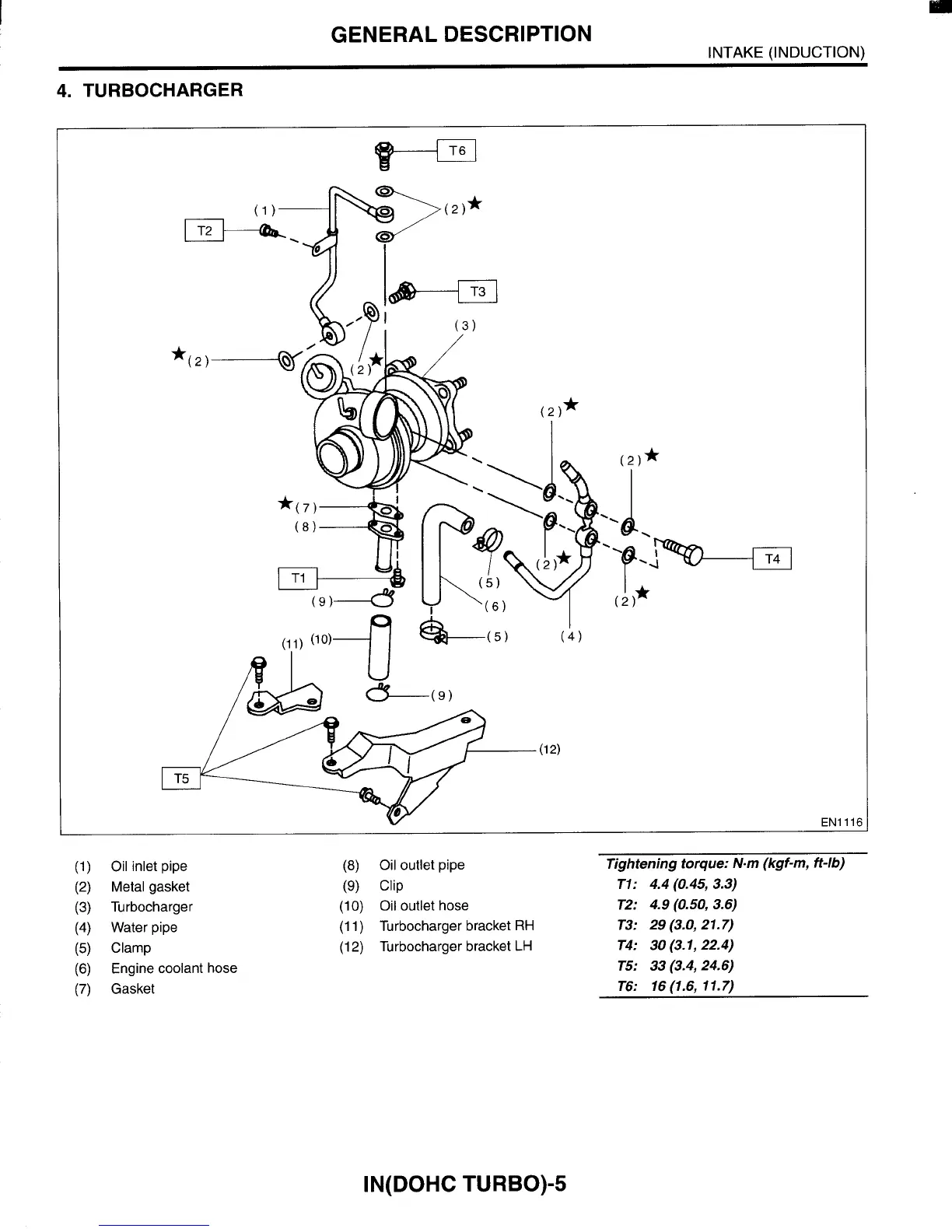

(1) Oil inlet pipe
(2) Metal gasket
(3) Turbocharger
(4) Water pipe
(5) Clamp
(6) Engine coolant hose
(7) Gasket
(8) Oil outlet pipe
Tightening torque: N.m (kgf-m, ft-lb)
(9) Clip
Tl: 4.4 (0.45, 3.3)
(10) Oil outlet hose
T2: 4.9 (0.50, 3.6)
(1 1) Turbocharger bracket RH T3: 29 (3.0, 21.7)
(12) Turbocharger bracket LH T4: 30 (3.1,22.4)
T5: 33 (3.4,24.6)
T6: lS(1.6, 11.7)
