3-18 Sun Fire X4100/X4100 M2 and X4200/X4200 M2 Servers Service Manual • August 2009

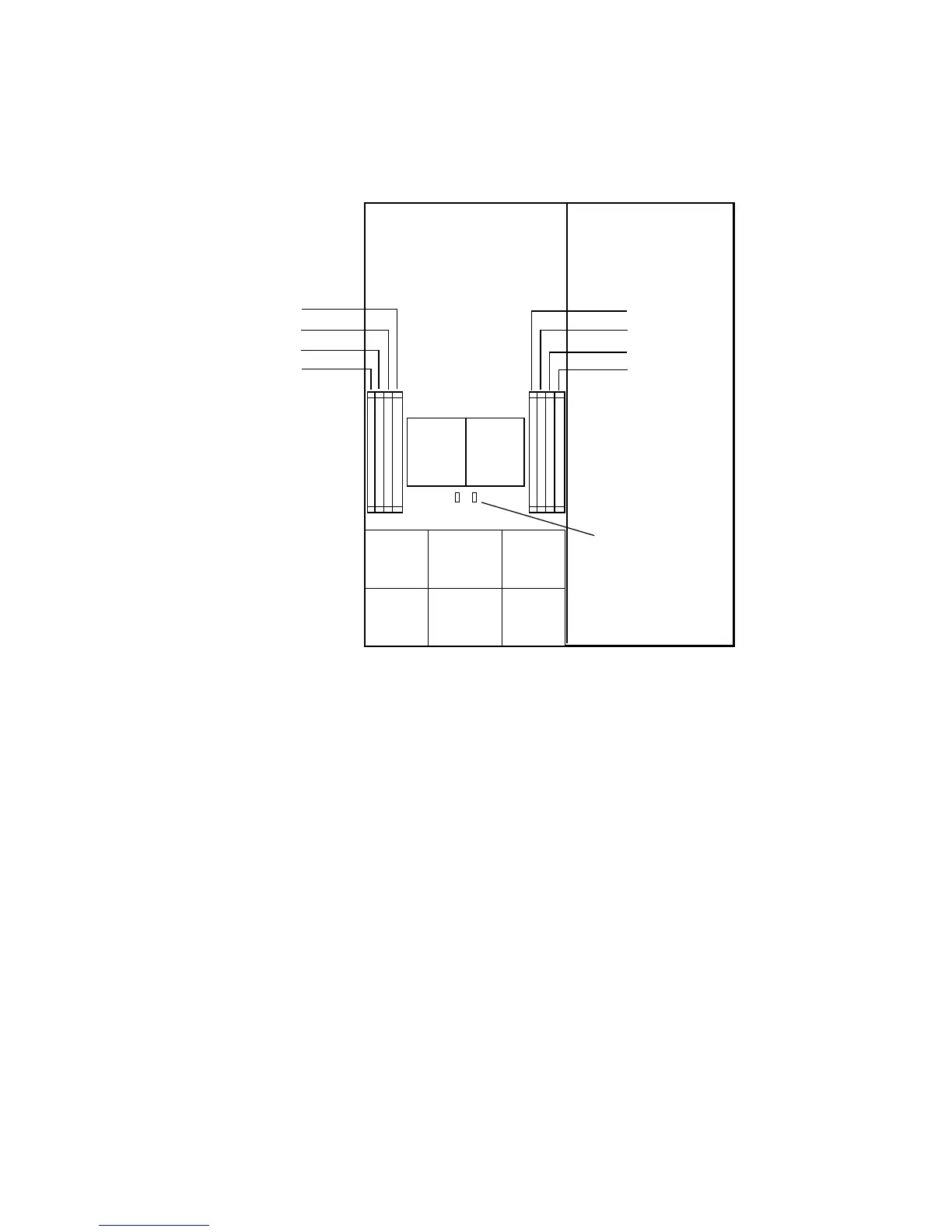

FIGURE 3-10 Designation of CPUs
FT1
FM0
FT1
FM1
FT1
FM2
FT0
FM0
FT0
FM1
FT0
FM2
CPU1 CPU0
DIMM 0
DIMM 2
DIMM 1
DIMM 3
DIMM 0
DIMM 2
DIMM 1
DIMM 3
Front panel of server
Back panel of server
CPU 1:
CPU 0:
CPU fault LEDs (2)
