1-8 Sun Fire X4100/X4100 M2 and X4200/X4200 M2 Servers Service Manual • August 2009
FIGURE 1-4 shows the locations of the Sun Fire X4100 M2 server replaceable
components, with the top covers removed.
1.2.4 Sun Fire X4200/X4200 M2 Server Front Panel
FIGURE 1-5 shows the features of the front panel.

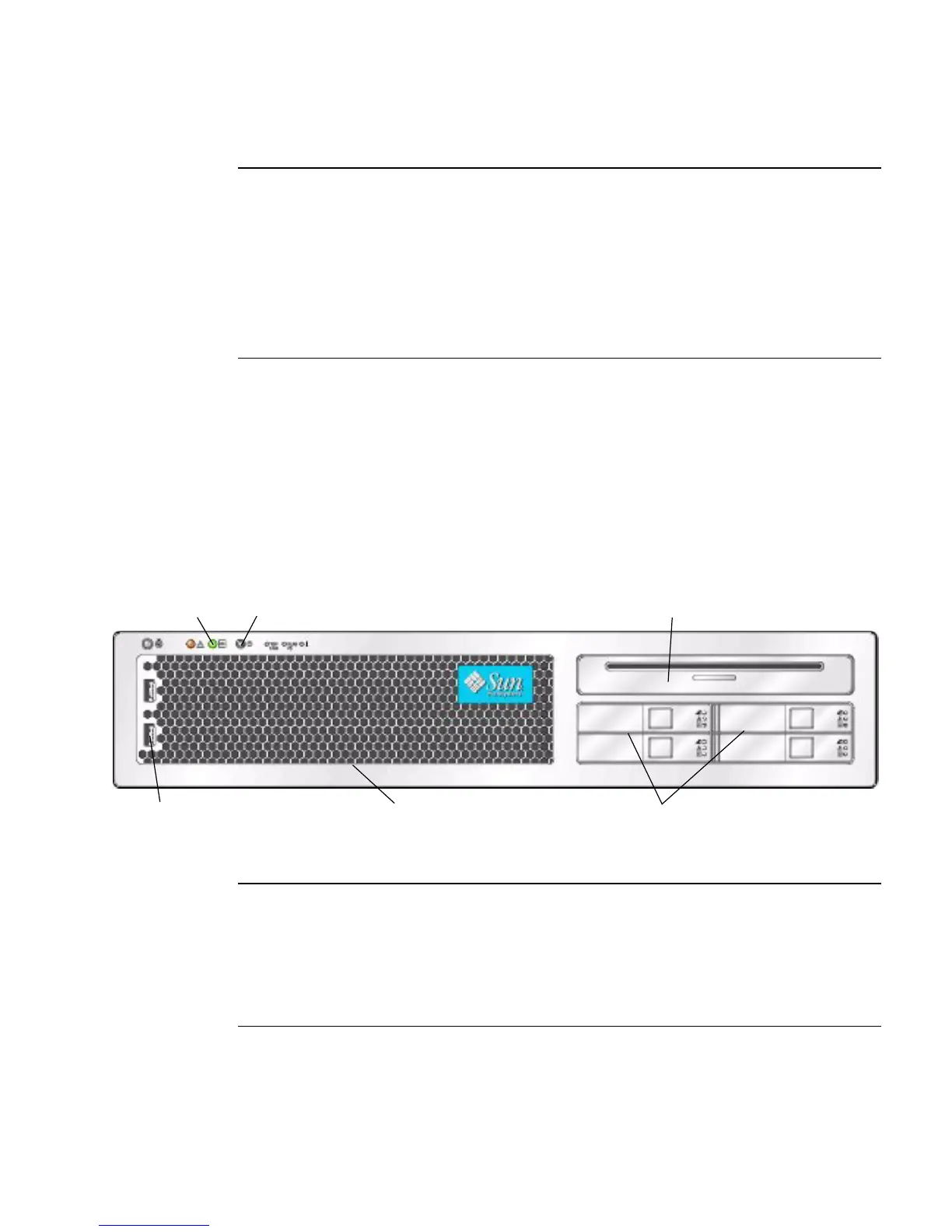

FIGURE 1-5 Sun Fire X4200/X4200 M2 Server Front Panel
9 PCI-X card slot (2)
10 Graphics-redirect and service processor (GRASP) board
11 Motherboard
12 Battery
13 DIMMs (up to 4 for each CPU)
14 CPUs and heatsinks (2)
15 Front I/O board
16 Front panel indicator board
Figure Legend
1 Power/OK LED
2 Power button
3 DVD-ROM drive
4 USB ports (2)
5 Serial number sticker on bezel
6 Hard disk drives (4)
Figure Legend
2
1
3
4
6
5
