2-6 Sun Fire X4100/X4100 M2 and X4200/X4200 M2 Servers Service Manual • August 2009
■ Sun Fire X4100: PCIE Slot 0, PCIE Slot 1
■ Sun Fire X4200: PCIE Slot 0, PCIE Slot 1, PCIE Slot 3, PCIE Slot 4, PCIX Slot 2
2.3.3 Ethernet Port Device and Driver Naming
These servers each have four 10/100/1000BASE-T Gigabit Ethernet ports. The chassis
labeling of the physical ports is shown in
FIGURE 2-3.

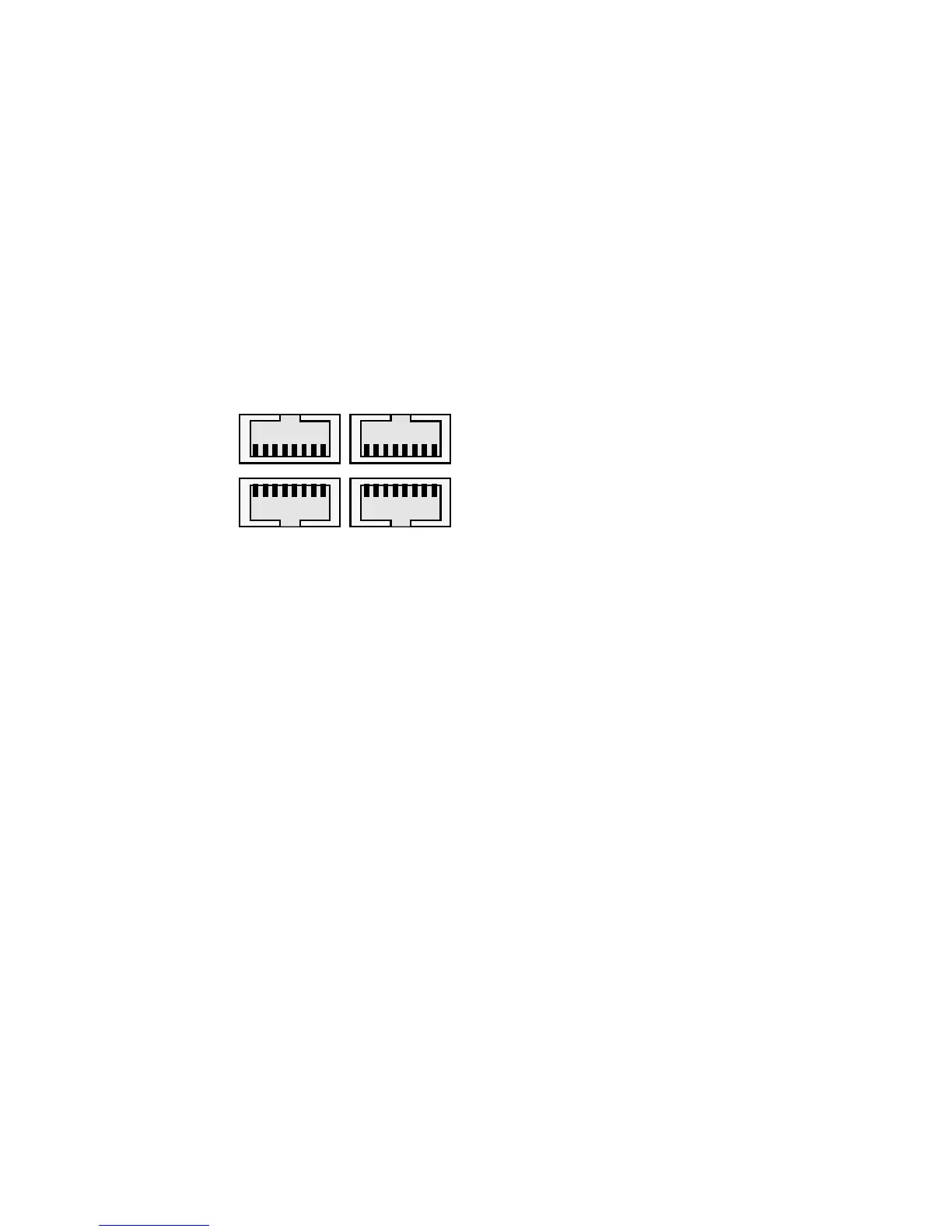

FIGURE 2-3 Ethernet Port Chassis Labeling Designations
The device naming for the Ethernet ports differ according to the OS. Refer to the
section below that applies to your server:
■ “Sun Fire X4100/X4200 Ethernet Port Mapping” on page 6
■ “Sun Fire X4100 M2/X4200 M2 Ethernet Port Mapping” on page 7
NET 2
NET 1
NET 3
NET 0
