Chapter 3 Maintaining the Sun Fire Servers 3-51

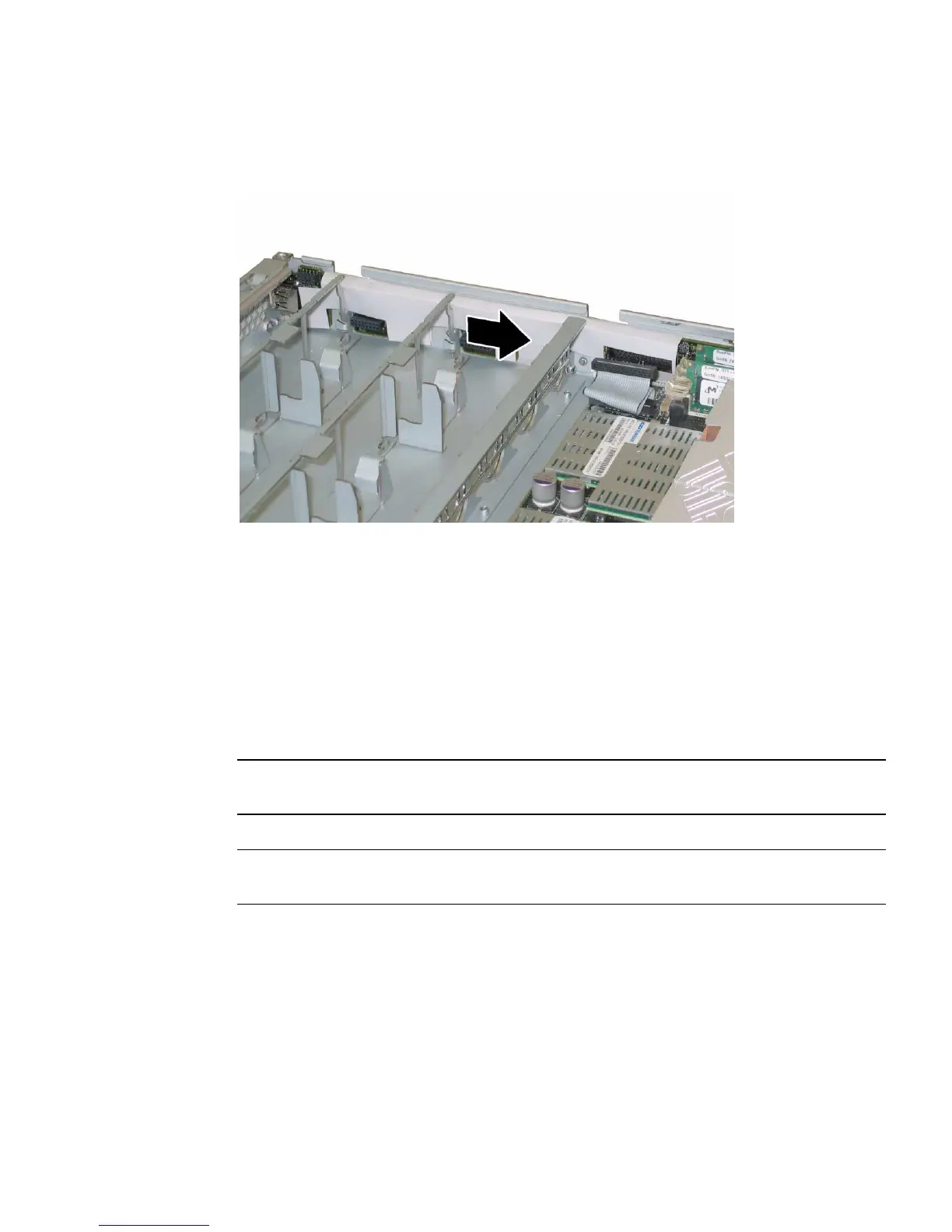

FIGURE 3-42 Releasing the Front I/O Board From the Chassis Locating Tabs (Sun Fire
X4200 Server Shown)
15. Lift the front I/O board straight up and out of the chassis.
Installation is the reverse of this procedure. When reinstalling screws, tighten to
7 in-lbs (0.8 Nm) using an adjustable torque driver.
3.12.10 Replacing the Graphics Redirect and Service
Processor (GRASP) Board
Note – Sun Fire servers use different versions of the GRASP board. These are not
interchangeable.
Note – This component is an FRU and should be replaced only by qualified service
technicians. Contact your Sun Service representative for assistance.
Supported components and their part numbers are subject to change over time. For
the most up-to-date list of replaceable components for these servers, refer to:
http://sunsolve.sun.com/handbook_pub/Systems
1. Click the name and model of your server.
2. On the product page that opens for the server, click Full Components List to
view a list of components.
