1-6 Sun Fire X4100/X4100 M2 and X4200/X4200 M2 Servers Service Manual • August 2009
1.2.3 Sun Fire X4100/X4100 M2 Server Components
FIGURE 1-3 shows the locations of the Sun Fire X4100 server replaceable components,
with the top covers removed.

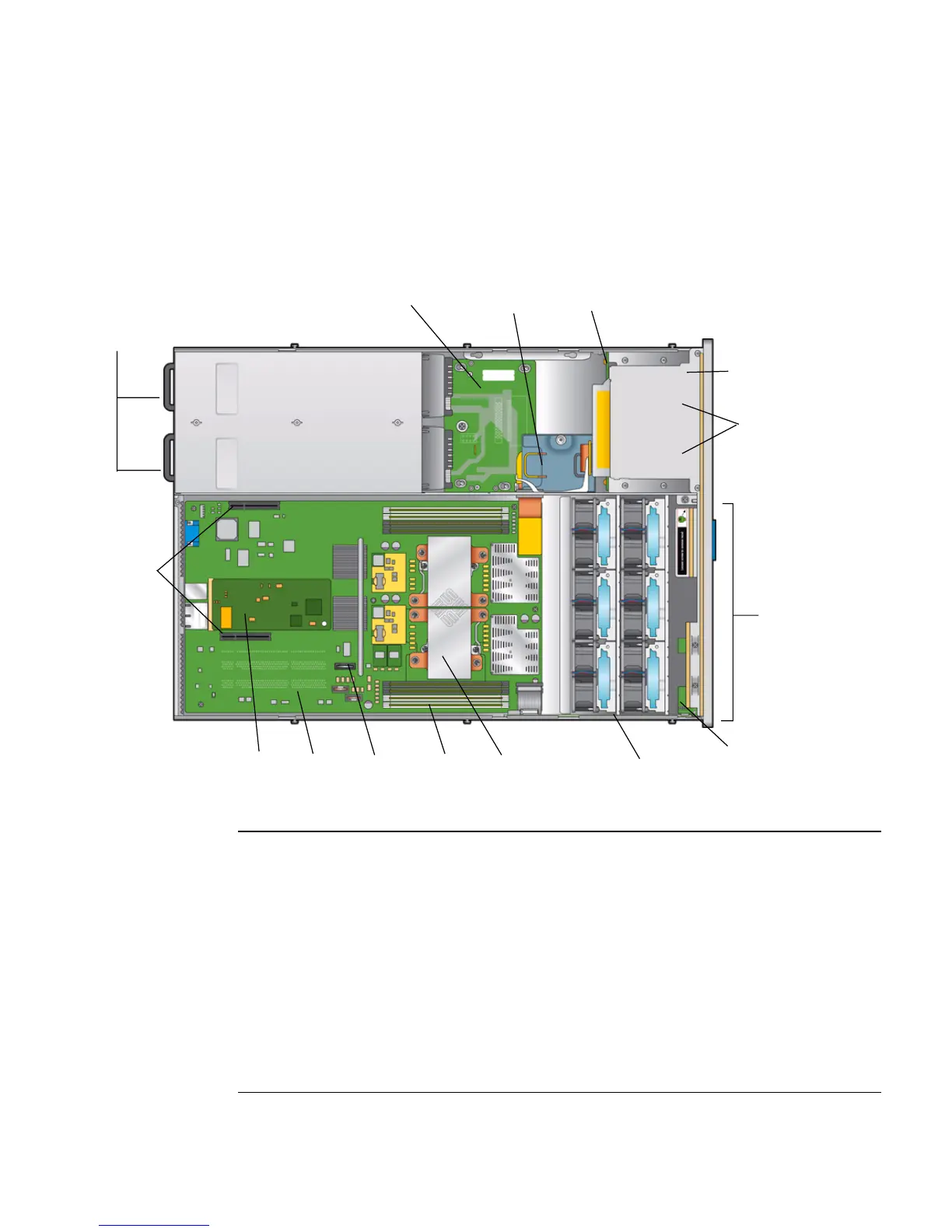

FIGURE 1-3 Sun Fire X4100 Replaceable Component Locations
Figure Legend
1 Power supplies (2)
2 Power distribution board
3 Flex cable (underneath cable retainer)
4 Hard disk drive backplane
5 DVD-ROM drive
6 Hard drives (2) (4-drives option available with no DVD-ROM)
7 Fan modules (6)
8 Fan connector boards (2) (not visible—underneath fan modules)
9 PCI-e card slot (2)
10 Graphics-redirect and service processor (GRASP) board
11 Motherboard
1
5
12 14
6
8
7
15
16
10
4
1311
9
23
