1-10 Sun Fire X4100/X4100 M2 and X4200/X4200 M2 Servers Service Manual • August 2009
1.2.6 Sun Fire X4200/X4200 M2 Server Components

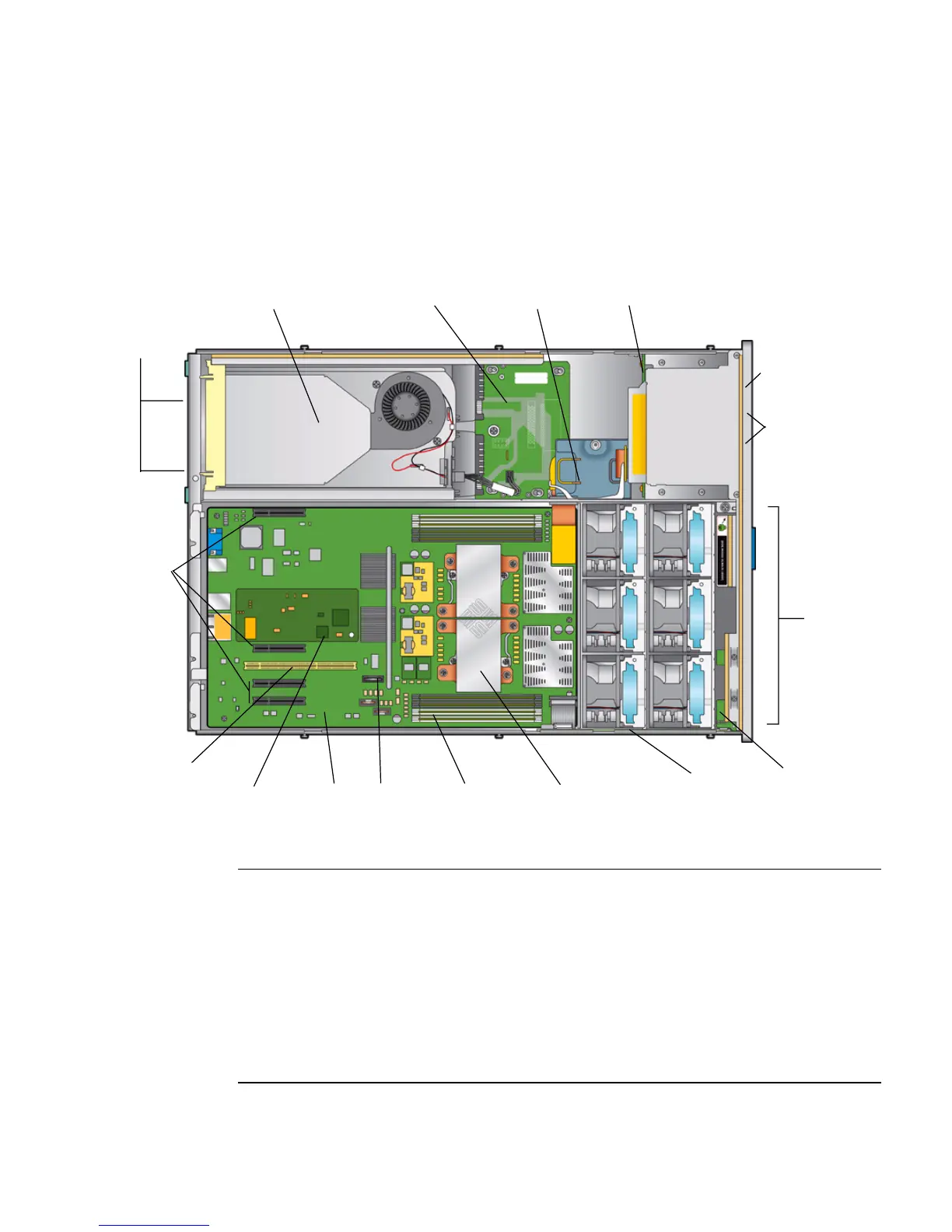

FIGURE 1-7 shows the locations of the Sun Fire X4200 server replaceable components,
with the top covers removed.
FIGURE 1-7 Sun Fire X4200 Replaceable Component Locations
Figure Legend
1 Rear fan tray
2 Power supplies (2)
3 Power distribution board
4 Flex cable (underneath cable retainer)
5 Hard disk drive backplane
6 PCIe card slots (4)
7 DVD-ROM drive
8 Hard drives (4)
9 Fan modules (6)
2
7
14
8
16
10
9
17
18
12
5
1513
6
34
1
11
