1.2.5 Sun Fire X4200/X4200 M2 Server Back Panel

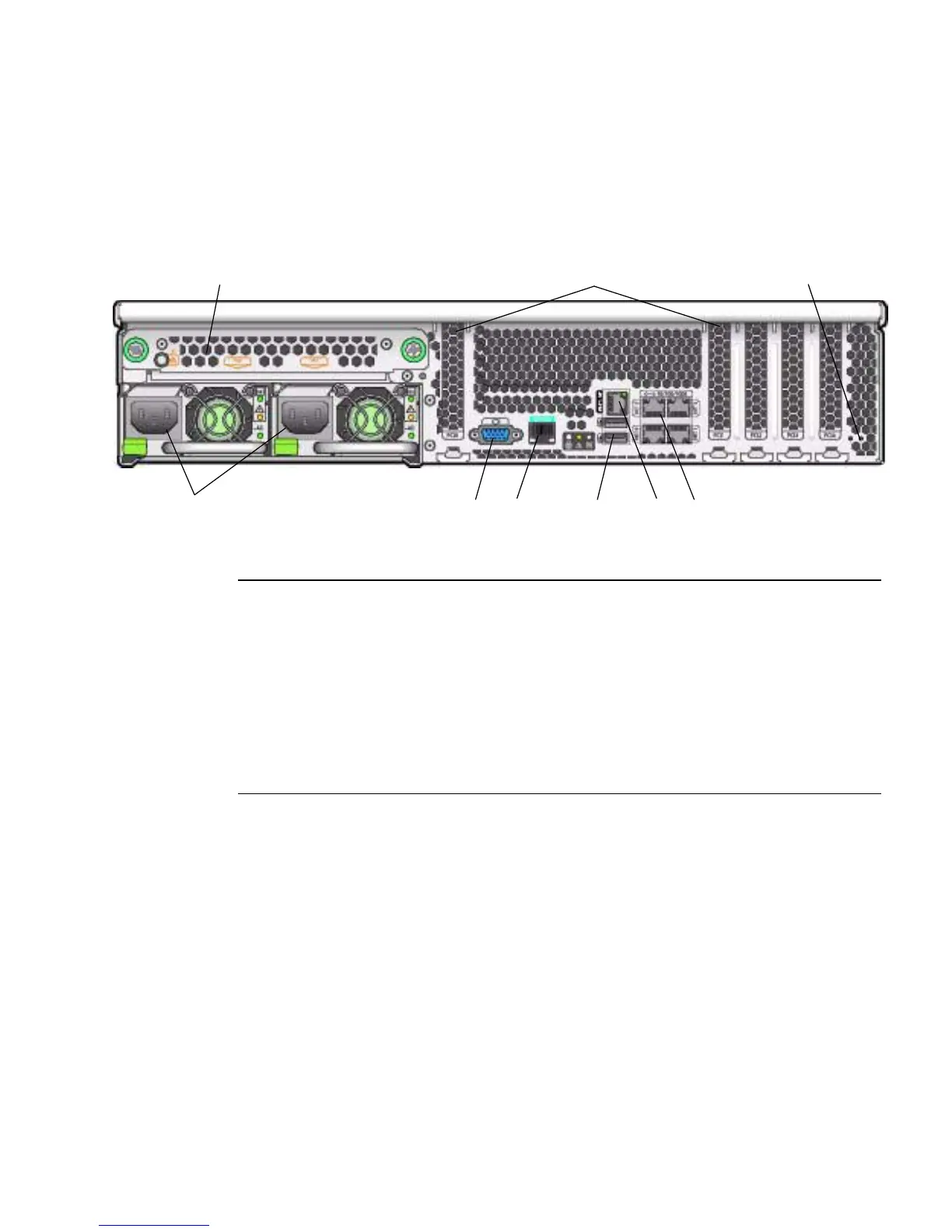

FIGURE 1-6 shows the features of the back panel.
FIGURE 1-6 Sun Fire X4200/X4200 M2 Server Back Panel
Figure Legend
1 Rear fan tray
2 PCI card slots (5)
3 Grounding post
4 Power supplies (2)
5 Video connector
6 Serial management port
7 USB connectors (2)
8 10/100/1000 gigabit Ethernet ports (4)
9 10/100 Ethernet port for net management
4
98675
21
3
