3.6 Removing the Front Bezel of the Sun Fire
X4100/X4100 M2 Server
Remove the bezel from the front of the chassis by following these steps:
1. Open the fan bay door and use a No. 2 Phillips screwdriver to unfasten the
captive screw that locks the bezel in place. See
FIGURE 3-4.
2. Pull the bezel away from the chassis.
Note – Be careful to avoid bending the bezel by loosening it from the middle and
both end sockets simultaneously.

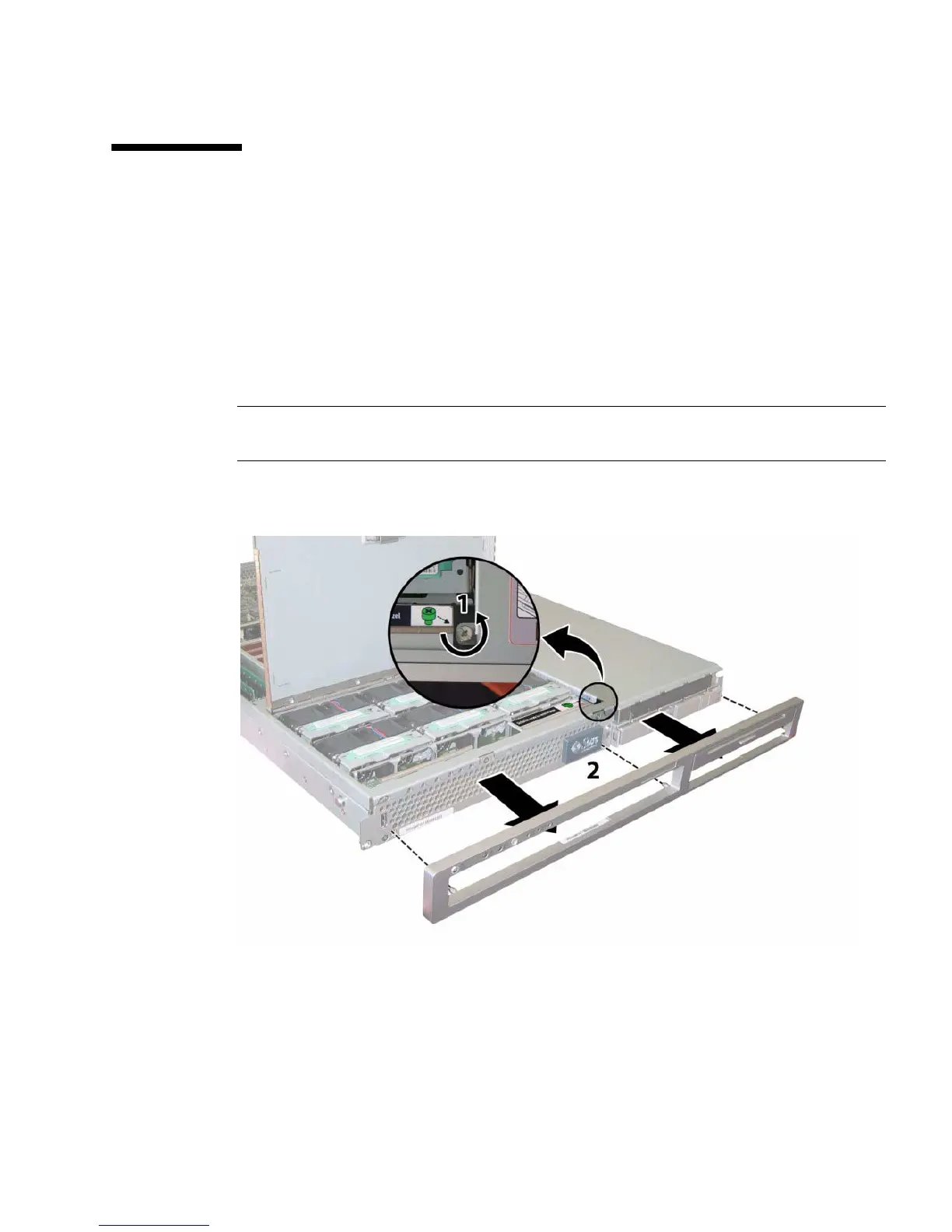

FIGURE 3-4 Unfastening the Front Bezel Locking Screw
