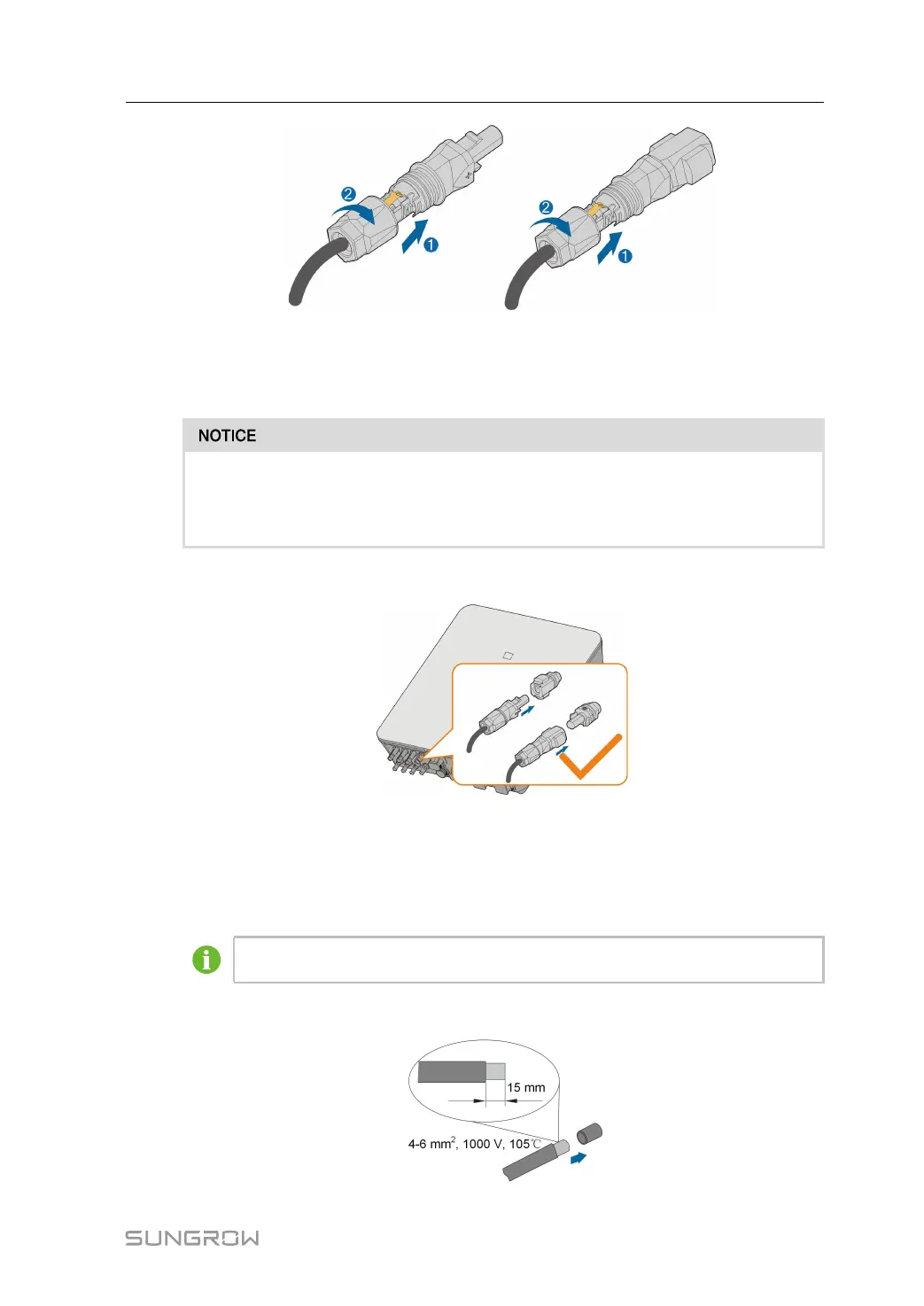

6.9.1.2 Installing the SUNCLIX Connector
Only connect these connectors with other SUNCLIX connectors. When making the
connections, always observe the specifications regarding nominal voltage and
nominal current. The smallest common value is permissible.
step 1 Plug the connectors into BAT+ and BAT- terminals.
step 2 Ensure that the connectors are securely in place.
- - End
6.9.1.3 Assembling Evo2 Compatible Connector
The connector type is subject to the actual received device.
step 1 Strip 15 mm of the insulation layer from each PV cable.
