Initial Settings
1/3
Time
Country
Initial Settings
2/3
Zero-export
Reactive Power
Initial Settings
3/3
Exit
Earth Fault
Battery Usage Time

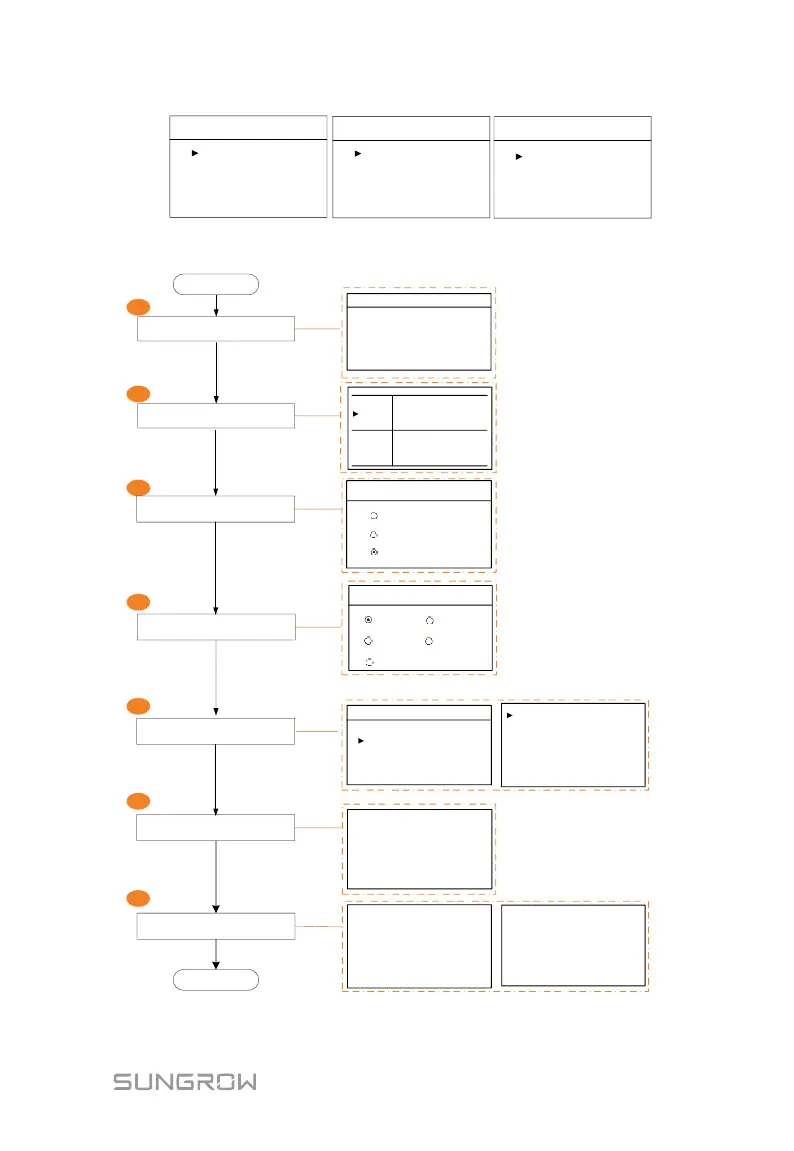

6. Refer to Fig. 7-1 for button operations and complete all initial settings
according to the procedure in Fig. 7-2.
Set the time
Set the country code
1
2
4
3
5
6
7
Set zero-export
Test earth fault alarm
Date
Time
22 / 02 / 15
07 : 38 : 08
hh : mm : ss
DD / MM / YY
Testing earth fault
relay and buzzer
inside alarm . . .
End
Start
Zero-export
ON
OFF
Partial
1/2
Confirm Exit?
Incorrect configura-
tion may cause a
fault!
Complete initial settings and
exit
Set the reactive power
Set battery usage time
Weekend Usage
Weekday Usage
Bat Usage Time
Start Time1
End Time1
00:00
24:00
Start Time2
End Time2
00:00
24:00
(1) The time setting is very important,
which directly affects data logging.
(2) DD, MM, and YY stand for day,
month, and year r espectively.
(3) hh, mm, and ss stand for hour,
minute, and second respectively.
ON: no power will be exported to grid.
OFF: all output power will be exported
to grid.
Partial: you can set the export power.
* Automatically return to main menu
after 3s.
Initializing...
Reactive Power
PF
OFF
Q(U)
Q(P)
Qt
Country
Country：
[ DE ]
OFF: Disable the function
PF: Fixed power factor mode
Q(t): Fixed reactive power mode
Q(P): Characteristic PF curve for
power response mode
Q(U): Volt-var response mode
Fig. 7-2 Procedure for Initial Settings
