FUEL SYSTEM 5-13
THROTTLE CONTROL CABLE
Installation and Adjustment

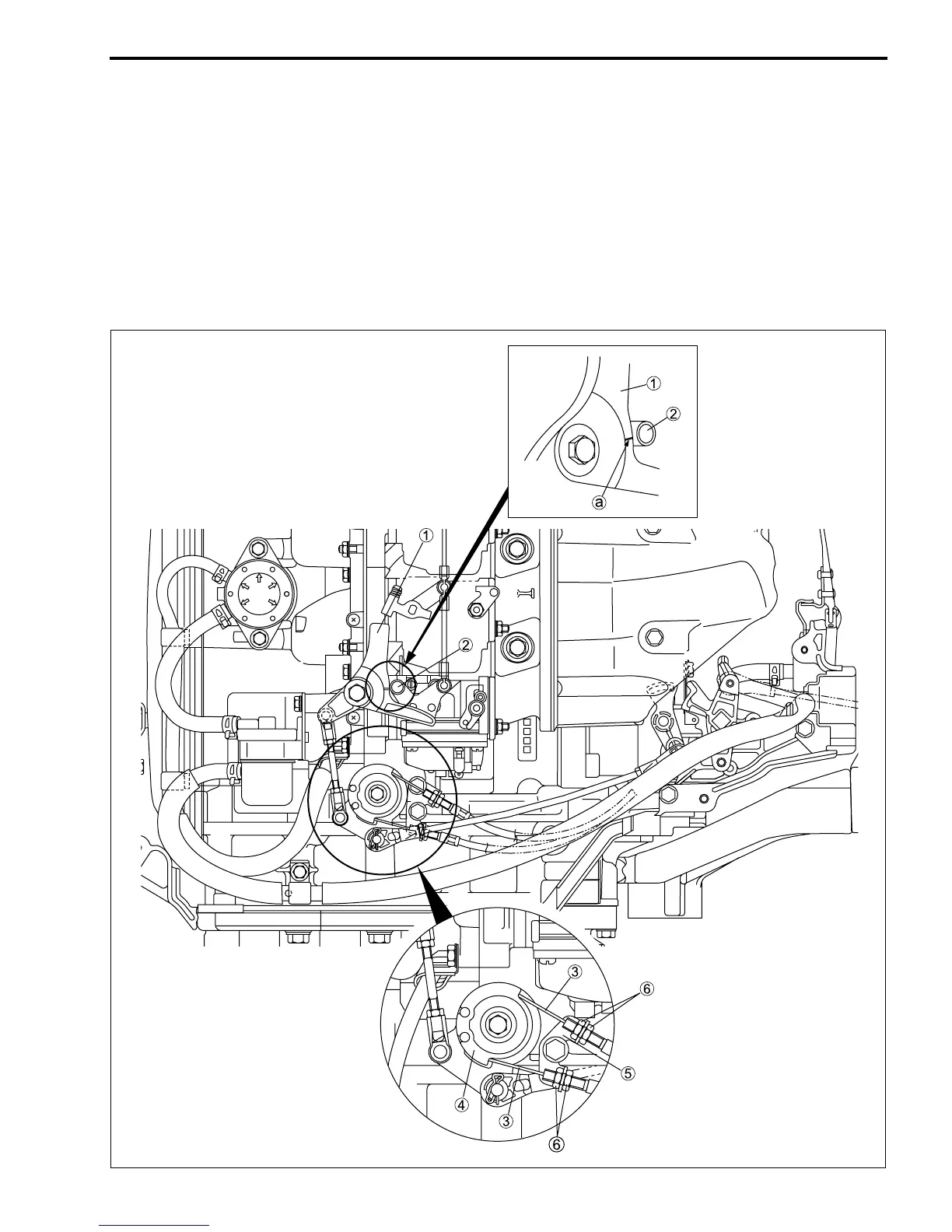

1. Rotate throttle control grip to bring the throttle to full close.
2. Align the match mark a on throttle cam 1 with the center of throttle lever roller 2 and hold this position.
3. Install throttle control cables 3 to throttle drum 4 and cable holder 5.
4. Turn lock nut 6 in the appropriate direction to install inner cable with no sag.
5. Tighten the lock nut to secure throttle cable to cable bracket.
6. Rotate the throttle control grip from fully closed position to fully open position several times.
With the throttle control grip at full close, make sure the match mark a on throttle cam 1 aligns with the
center of throttle lever roller 2.
