ELECTRICAL 4-13
INSTALLATION
Installation is reverse order of removal with special attention to
the following steps.
• Install starter motor and tighten starter motor mounting bolts
securely.
Starter motor mounting bolt :
6 mm 11 N
.
m (1.1 kg-m, 8.0 Ib.-ft.)
8 mm 23 N
.
m (2.3 kg-m, 16.5 Ib.-ft.)
!
5. Remove two bolts 6 , starter motor 7 , spacers 8 and dowel
pins 9.

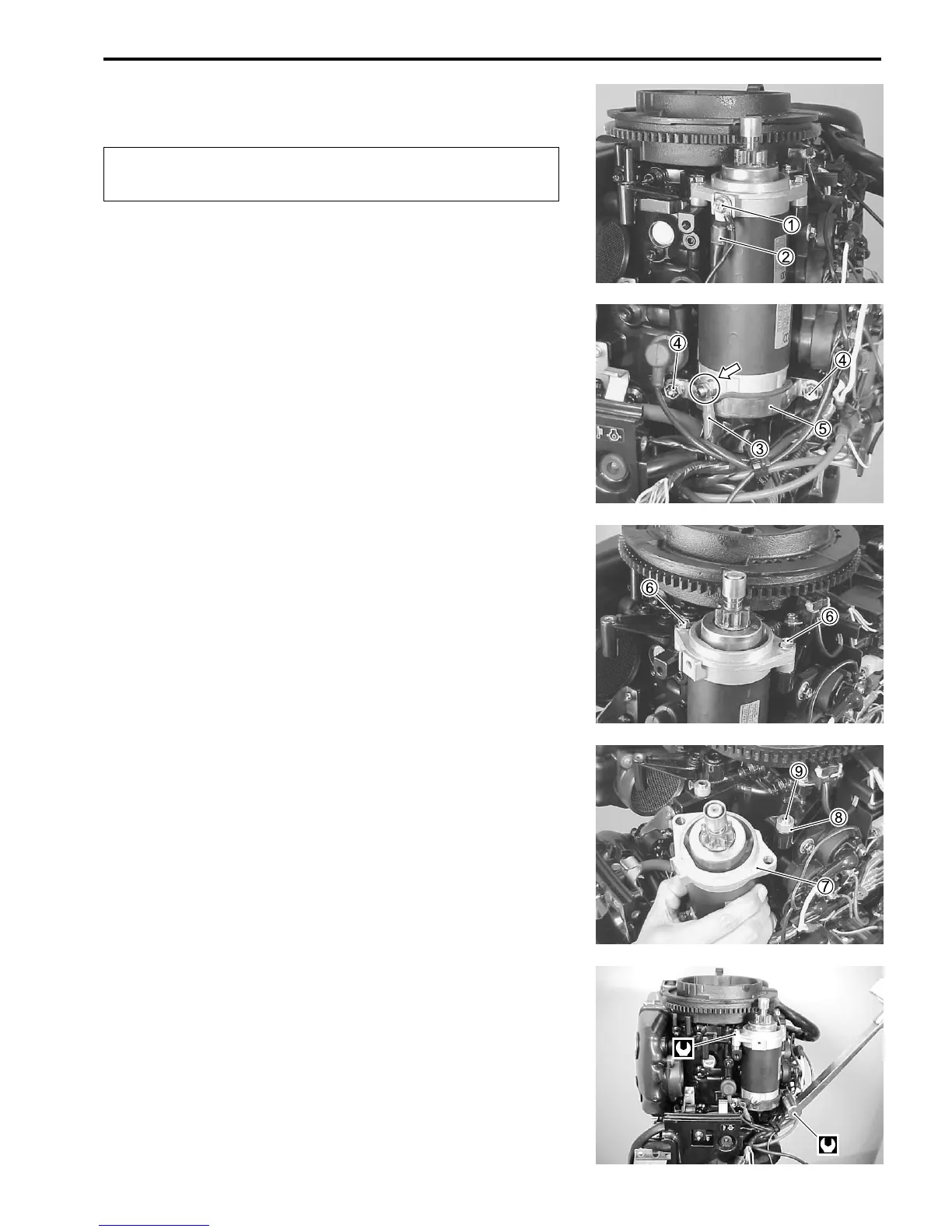

STARTER MOTOR
REMOVAL
Prior to removing starter motor :
• Disconnect battery cables from battery.
1. Remove three bolts and flywheel cover.
2. Remove bolt 1 and negative - battery cable 2.
3. Remove starter motor sub cable 3.
4. Remove two bolts 4 and starter motor band 5.
To Next Page
