5-6 FUEL SYSTEM
INSTALLATION
Installation is the reverse order of removal with special atten-
tion to the following steps.
Do not re-use gaskets, as sealing abilities will be in-
sufficient. Air leakage will induce a lean air / fuel mix
which will result in severe engine damage.

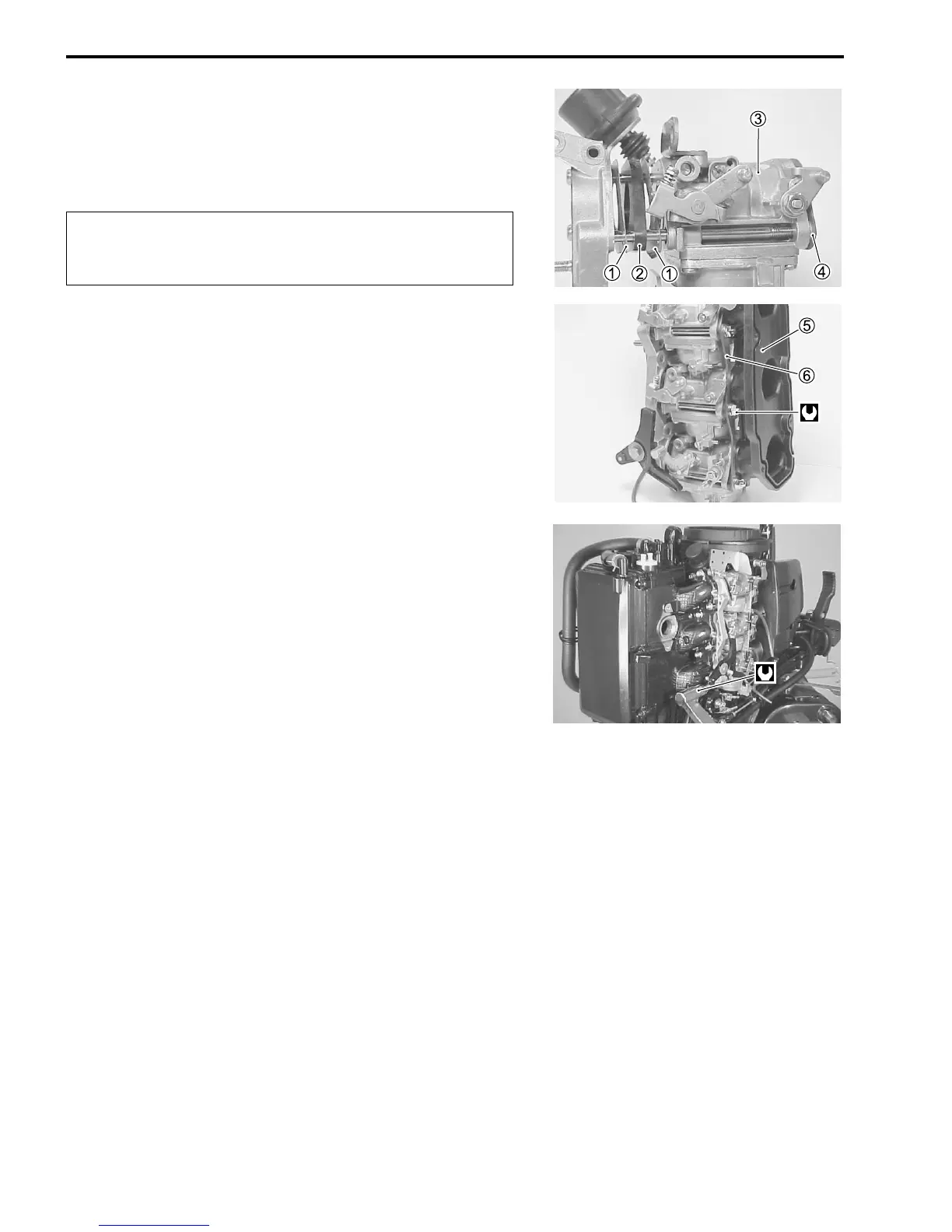

• Install carburetor gaskets 1, insulators 2, gaskets 1, car-
buretors 3, gaskets 4 , silencer pipe 5 and plates 6, then
tighten carburetor mounting nuts to specified torque.
! Carburetor mounting nut : 10 N
.
m (1.0 kg-m, 7.0 lb.-ft.)
FINAL ASSEMBLY CHECK
Perform the following checks to ensure proper and safe opera-
tion.
• All parts removed have been returned to their original posi-
tions.
• No fuel leakage is evident when fuel system is pressurized.
( See page 5-3)
• Check the carburetor synchronization.
(See the “SYNCHRONIZING THROTTLE VALVES” section
on page 2-13)
• Install carburetor / inlet case assembly to intake manifold,
then tighten mounting bolts and nuts securely.
! Inlet case bolt / nut : 11 N
.
m (1.1 kg-m, 8.0 lb.-ft.)
