5-14 FUEL SYSTEM
FUEL PUMP
REMOVAL / INSTALLATION
"
Before servicing the fuel system, read and understand
“PRECAUTION ON FUEL SYSTEM SERVICE” in the pre-
vious section.
REMOVAL

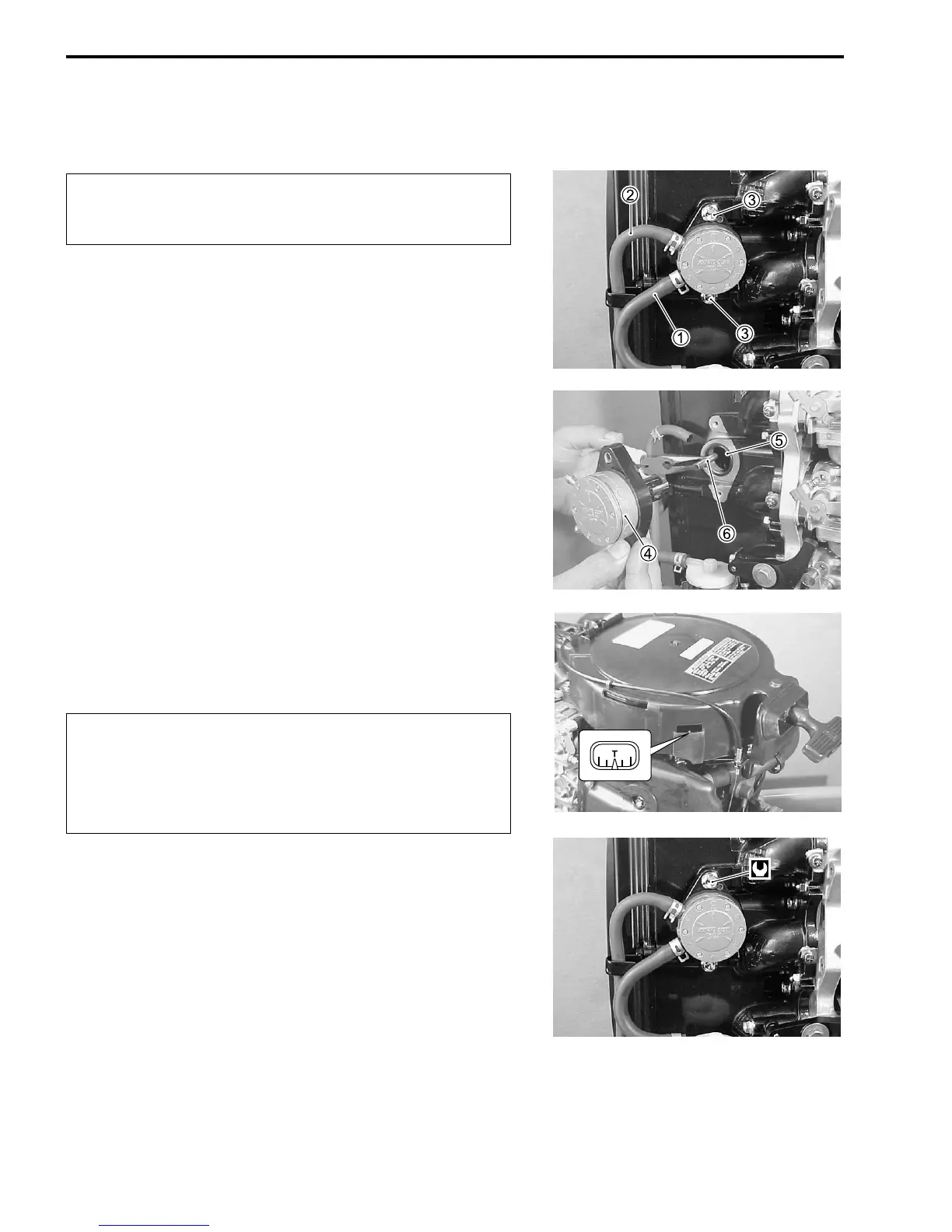

1. Disconnect inlet hose 1 and outlet hose 2 from fuel pump.
2. Remove two bolts 3.
• Before installing fuel pump, rotate the crankshaft to
bring No.1 (top cylinder) piston to Top Dead Center
on compression stroke.
• Discard O-rings after removal. always use new O-
ring to ensure proper sealing.
! Fuel pump bolt : 10 N
.
m (1.0 kg-m, 7.0 lb.-ft.)
INSTALLATION
Installation is reverse order of removal with special attention to
the following steps.
3. Remove fuel pump 4 and O-ring 5.
Note position before removing pump rod 6.
To Next Page
