POWER UNIT 7-7
INSTALLATION
Installation is reverse order of removal with special attention to
the following steps.
Do not re-use gasket and O-ring.
Always replace with new parts.

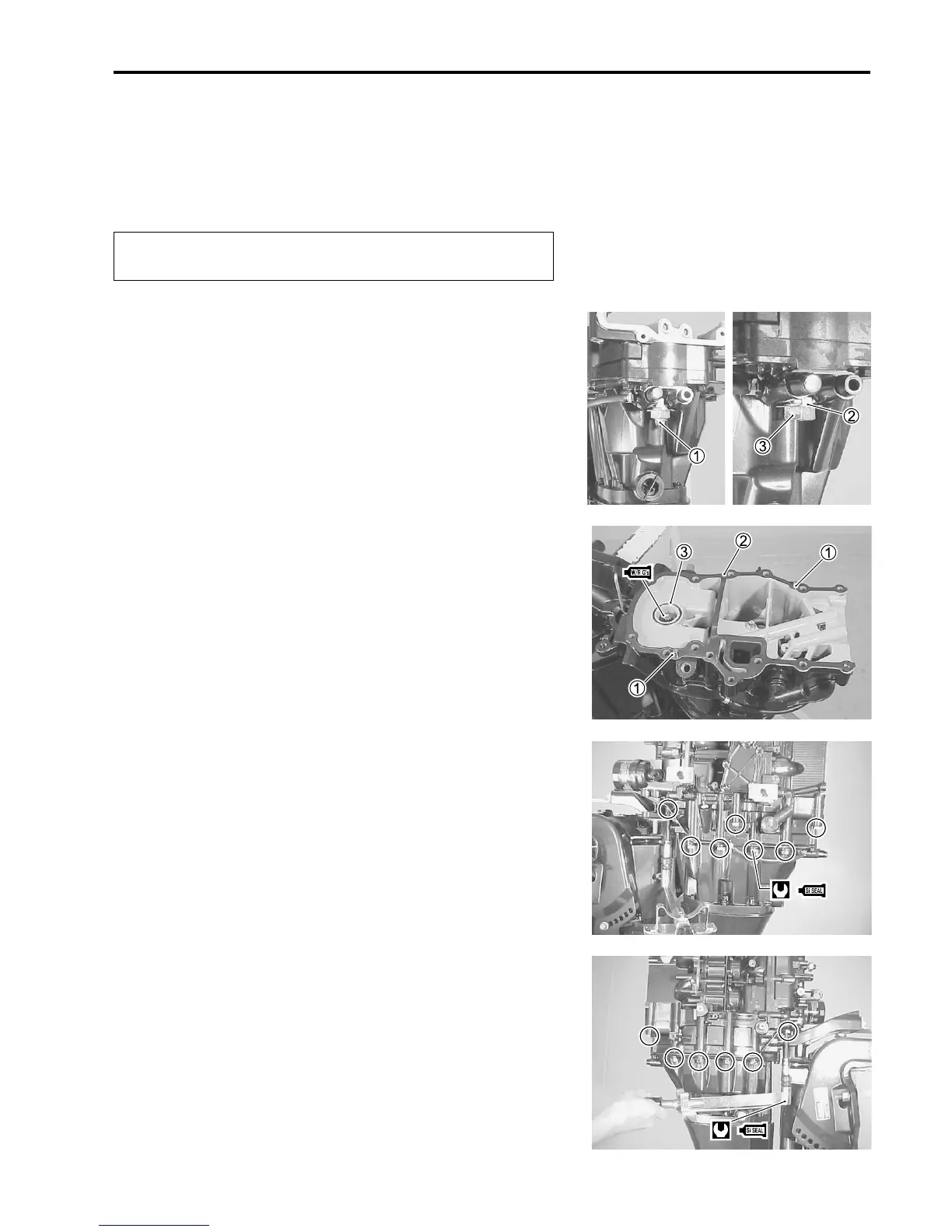

BEFORE INSTALLATION
Remove plug 1.
Using screw driver, drive locking edges of lock washer 2 up-
ward, and then remove oil pump stopper 3 from oil pan.
POWER UNIT
Install dowel pins 1 , gasket 2 and O-ring 3 .
Apply Suzuki Water Resistant Grease to driveshaft splines.
M 99000-25160 : Suzuki Water Resistant Grease
Lower the power unit onto engine holder.
NOTE :
Rotate crankshaft to aid alignment of driveshaft and crankshaft
splines.
Apply Suzuki Silicone Seal to power unit mounting bolts and
tighten bolts to specified torque.
L 99000-31120 : Suzuki Silicone Seal
! Power unit mounting bolt :
8 mm 23 N
.
m (2.3 kg-m, 16.5 lb.-ft.)
10 mm 50 N
.
m (5.0 kg-m, 36.0 lb.-ft.)
