Suzuki DF 30 - Wire Routing

DF25/30 “K3” (2003) MODEL 12-15
WIRE ROUTING
DF25Q/DF30Q, DF25QE/DF30QE
Starter switch
(QE model only)
Emergency stop & engine stop switch

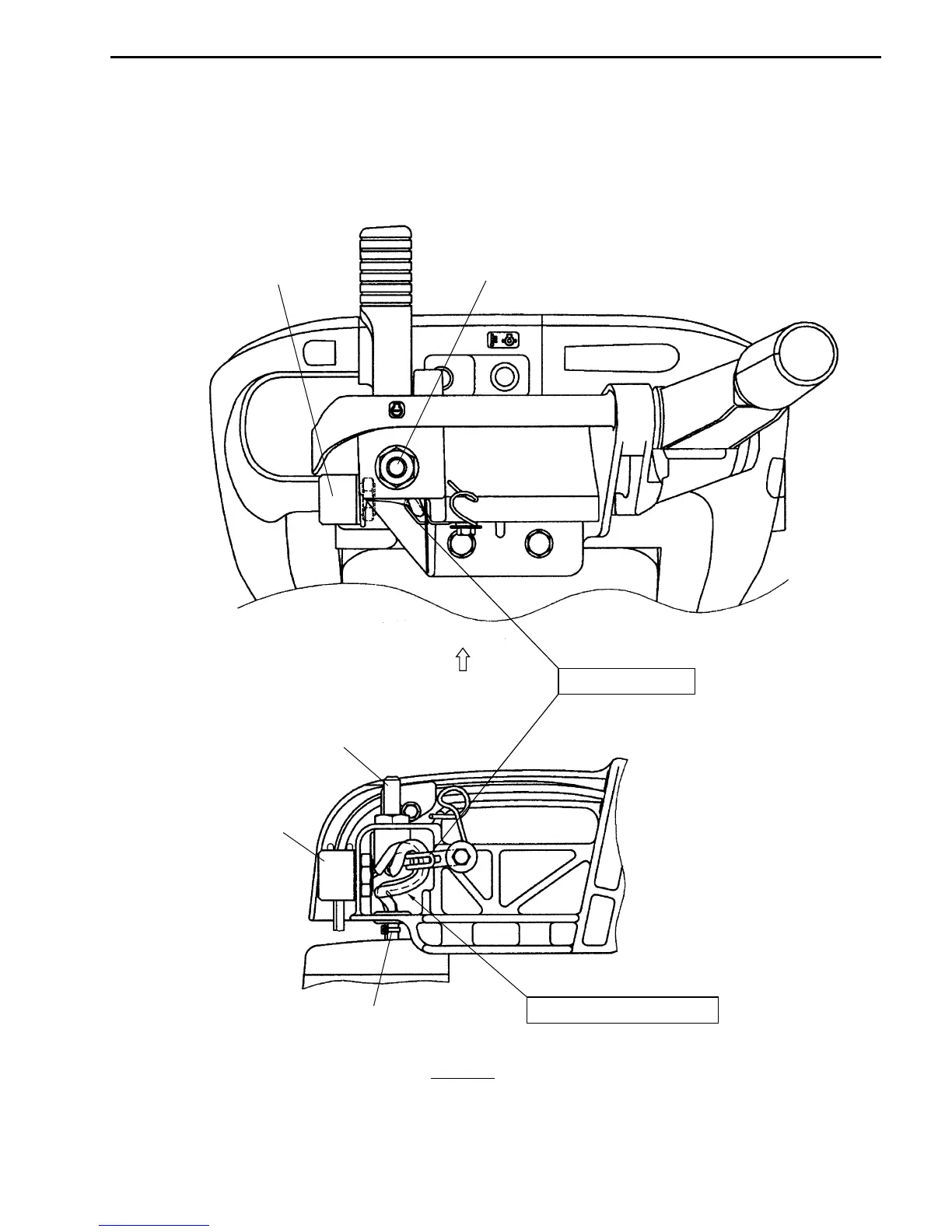

Clamp:
Fix wire(s) with clamp.
Slack off wire(s) around 30 mm.
Clamp
Starter switch
(QE model only)
Emergency stop &
engine stop switch
VIEW X
X
