POWER TRIM AND TILT 9-3
A Manual release valve
SERVICE PROCEDURE

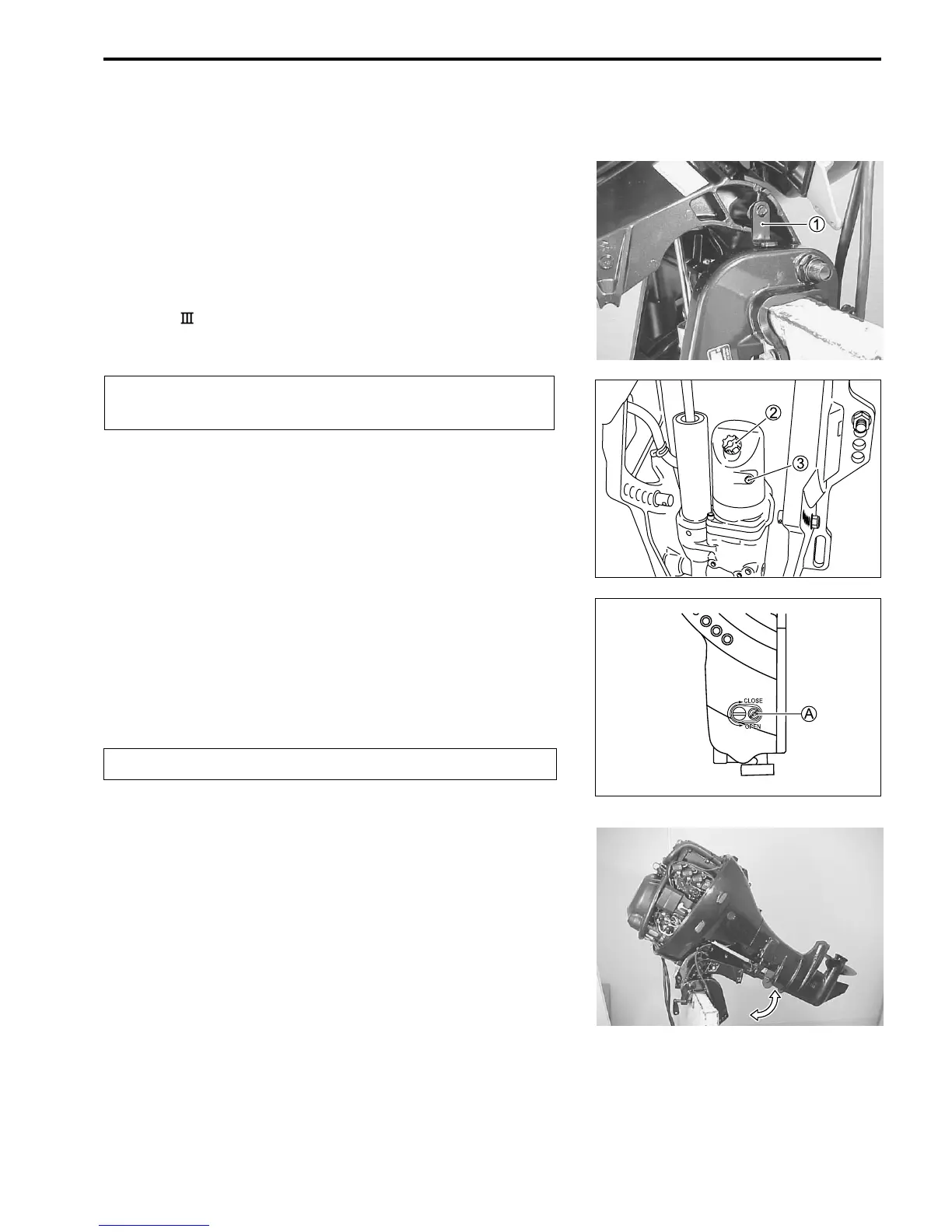

OIL LEVEL
To check the oil level :
1. Raised the engine to a full-tilt position.
2. Lower the manual tilt lock lever 1.
3. Remove the oil filler plug 2 and oil level plug 3.
4. If oil can be seen at level plug hole level, the unit is full.
5. If oil level is low, refill with the recommended oil.
Recommended oil :
Dexron automatic transmission fluid or equivalent
To ensure consistent pump operation, do not mix dif-
ferent types of oil.
6. Reinstall oil level plug and oil filler plug.
AIR BLEEDING
1. Check that the manual release valve is tightened to the speci-
fied torque.
!!
!!
! Manual release valve : 1.8 N
.
m (0.18 kg-m, 1.3 lb.-ft.)
Do not over-tighten manual release valve.
Counterclockwise = open
Clockwise = close
2. Operate the PTT switch, raising and lowering the motor up
and down (full tilt position to full trim down position) 4 to 5
times.
3. Check oil level, topping off if necessary.
4. Reinstall oil filler plug and oil level plug.
