Suzuki DF 30 - Troubleshooting

4-8 ELECTRICAL
TROUBLESHOOTING
NOTE:
Before troubleshooting the electric starter system, make sure of the following :
• Battery is fully charged.
• All cables / wires are securely connected.
• Shift is in “NEUTRAL” position.

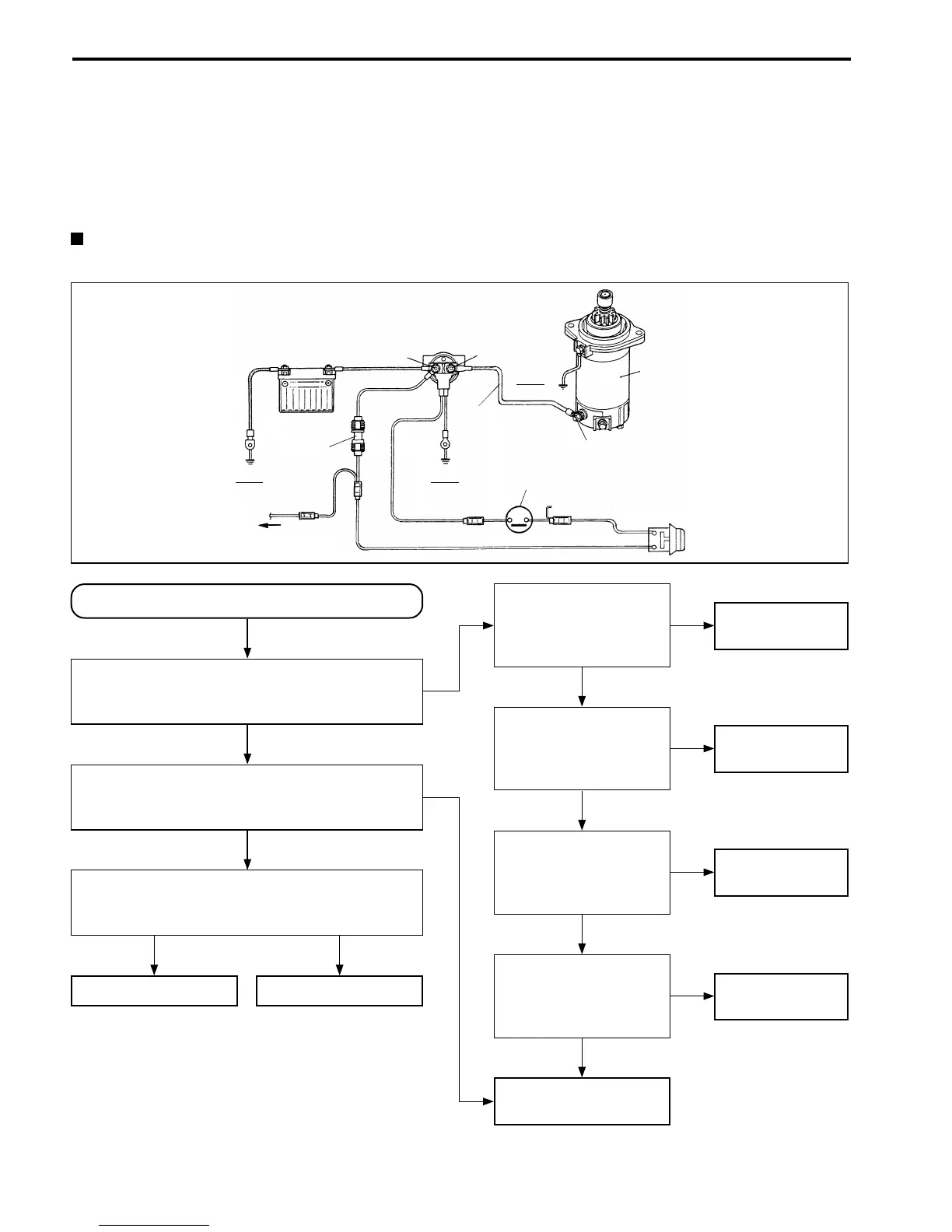

Tiller handle model
Circuit check schematic
Check starter motor.
(See page 4-16.)
Starter motor
Sub cable
1
+
-
Starter motor
GND
Starter switch
Neutral switch
GND
Fuse
GND
Battery
Starter motor relay
2
Starter motor will not run.
Check for relay “click” sound when starter but-
ton depressed.
Is there “click” sound?
Measure voltage at terminal 2 with starter
button depressed. It must be above 12 V.
Is result OK?
Measure voltage at terminal 3 with starter
button depressed. It must be above 12 V.
Is result OK?
Starter motor failure Sub cable failure
Measure voltage at
terminal 1. It must
be above 12V.
Is result OK?
Check 25A fuse and
fuse case.
(See page 4-4.)
Is result OK?
Check starter switch
function.
(See page 4-10.)
Is result OK?
Check starter motor
relay.
(See page 4-12.)
Starter motor relay
failure
Battery cable
failure
25A fuse or
fuse case failure
Starter switch
failure
Neutral switch
failure
YES
YES
YES
NO
YES
YES
YES
NO
NO
NO
NO
NO
NO
Check function of
neutral switch.
(See page 4-11.)
Is result OK?
To Rectifier & Regulator
W
W/R
W/R
Y/G
W/R
Br
3
YES
