POWER UNIT 7-37

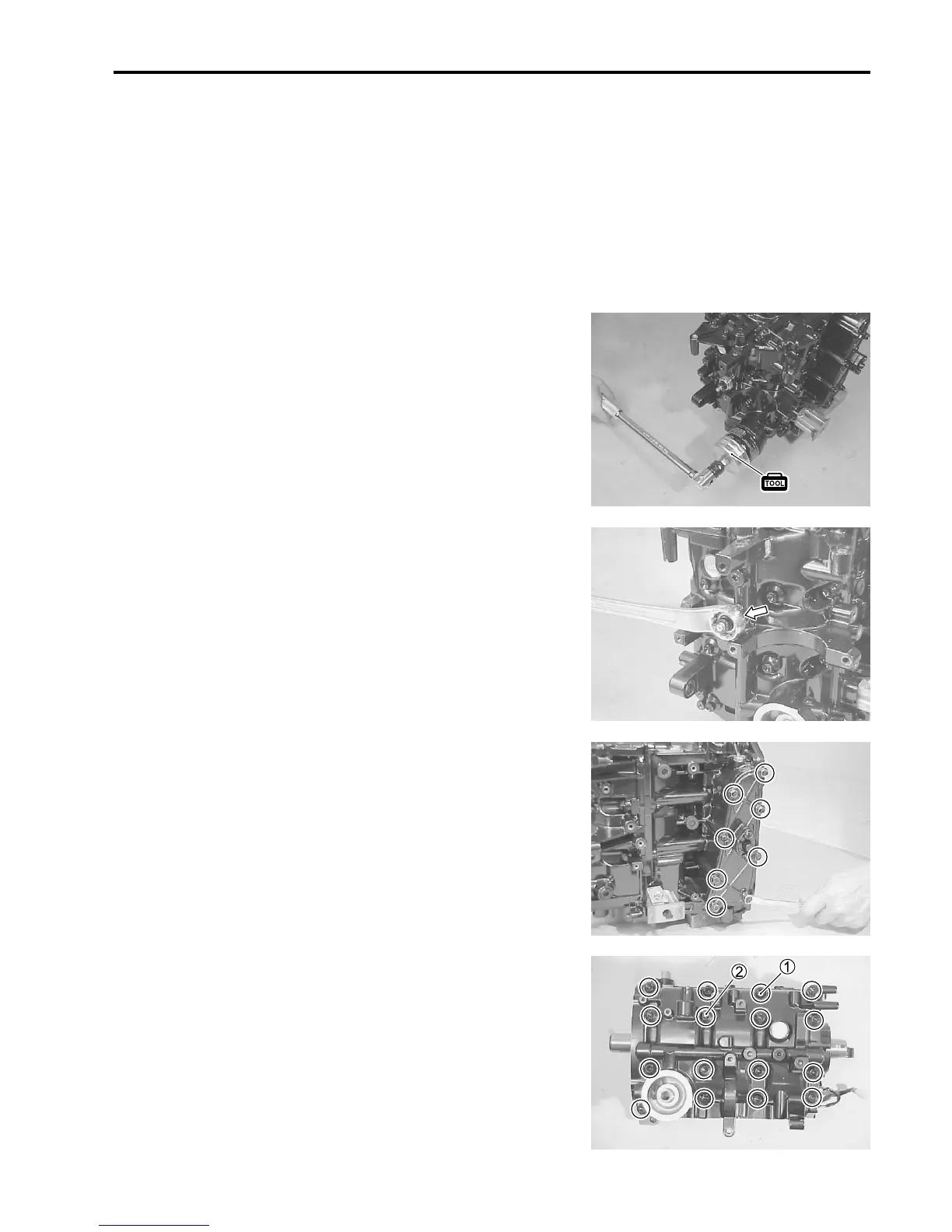

Remove oil filter
[ 09915-47340 : Oil filter wrench
Remove oil pressure switch.
CYLINDER / CRANKSHAFT / PISTON
DISASSEMBLY
Before performing service work in this section:
• Remove power unit (see page 7-2 to 7-6)
• Remove timing chain (see page 7-11 to 7-12)
• Remove cylinder head (see page 7-17)
Remove eight (8) bolts 1.
Remove eight (8) bolts 2.
Remove crankcase from cylinder block.
Remove the eight (8) bolts securing the exhaust cover plate to
cylinder, then remove the exhaust cover plate.
