7-38 POWER UNIT

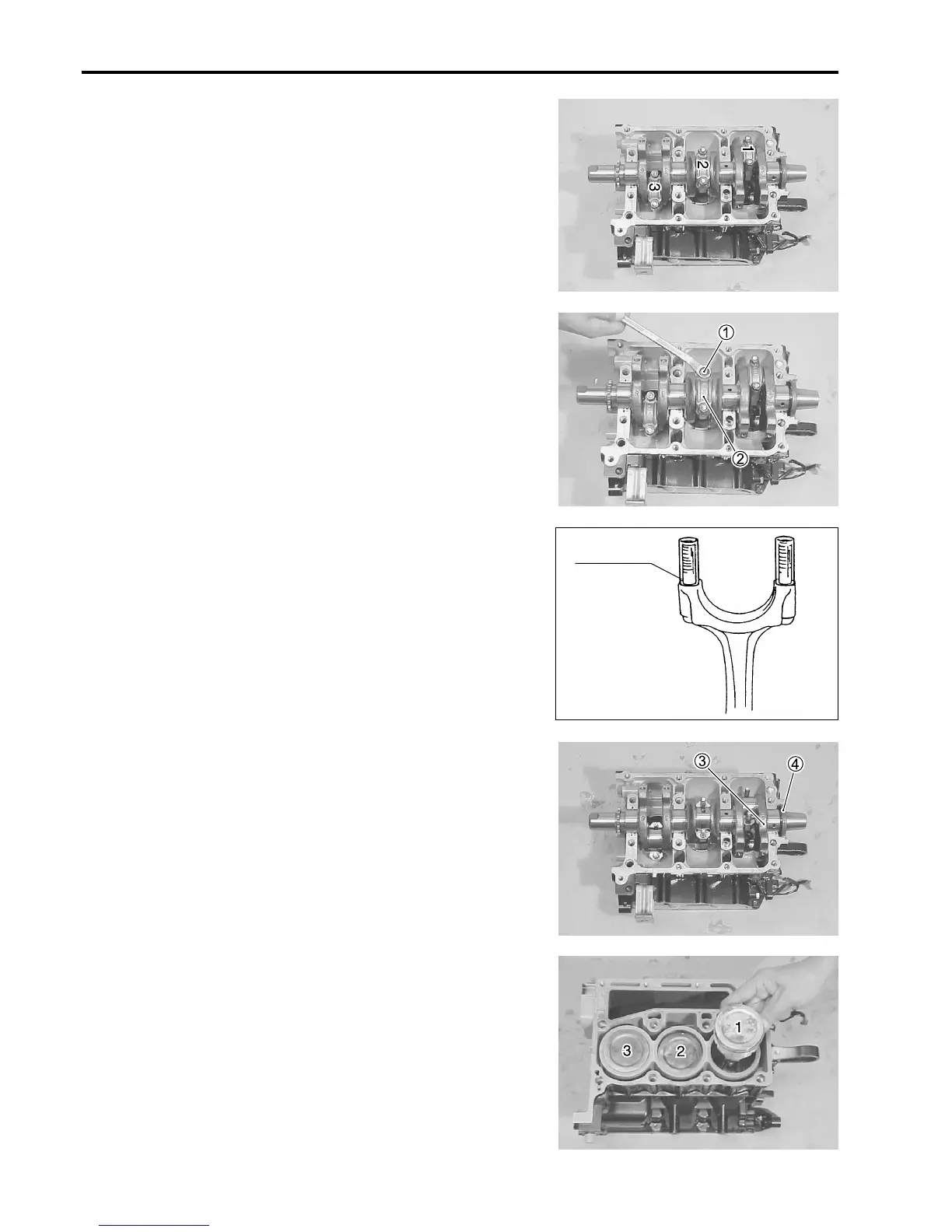

Remove all conrod cap nuts 1 and conrod caps 2.
NOTE:
For proper assembly, mark cylinder number on all pistons,
conrods, and conrod caps, using quick drying paint.
NOTE:
To prevent damage to crank pin and cylinder walls, install a piece
of hose over threads of rod bolts.
Mark cylinder number on pistons using quick dry paint.
Push piston (with conrod) out through the top of cylinder bore.
NOTE:
• To prevent damage to piston rings, decarbon top of cylinder
bore wall before removing piston.
• Reassemble each conrod cap to its original position after
removing piston form boer.
Remove cranckshaft 3.
Remove oil seal 4 form cranckshaft.
Guide hose
