2-6 PERIODIC MAINTENANCE
GEAR OIL
Change initially after 20 hours (1 month) and every 100
hours (6 months) thereafter.
(1) Place the outboard motor upright on a level surface.
(2) Place a container under the lower unit.
(3) Remove the lower gear oil drain plug before the gear oil
level plug and drain the gear oil.

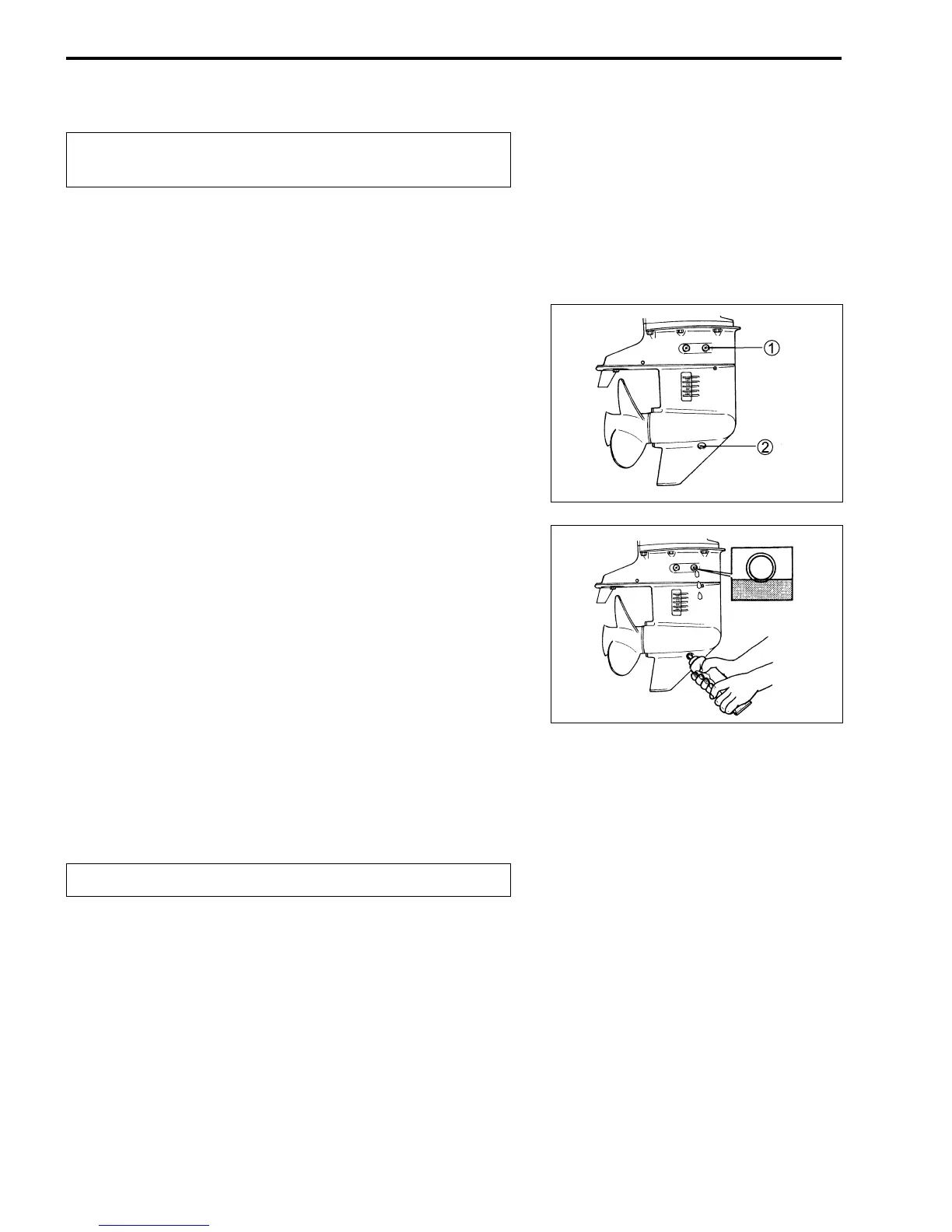

1 Oil level plug
2 Oil drain plug
(4) Fill with the recommended gear oil through the oil drain
hole until oil just starts to flow out from the oil level hole.
Gear oil amount : 230 ml ( 7.8 / 8.1 US / Imp. oz)
Recommended oil :
Suzuki Outboard Motor Gear Oil or SAE # 90
Hypoid gear oil
(5) Install the oil level plug before removing the oil filler tube
from the drain hole.
(6) Install the oil drain plug.
Do not re-use gaskets. Always use a new gasket.
NOTE:
To avoid insufficient injection of gear oil, check the gear oil
level 10 minutes after doing the procedure in the step (6). If the
oil level is low, slowly inject the gear oil up to the correct level.
