Suzuki DF 30 - Reassembly

MID UNIT 8-23
43 N
.
m
(4.3 kg-m, 31.0 Ib-ft)

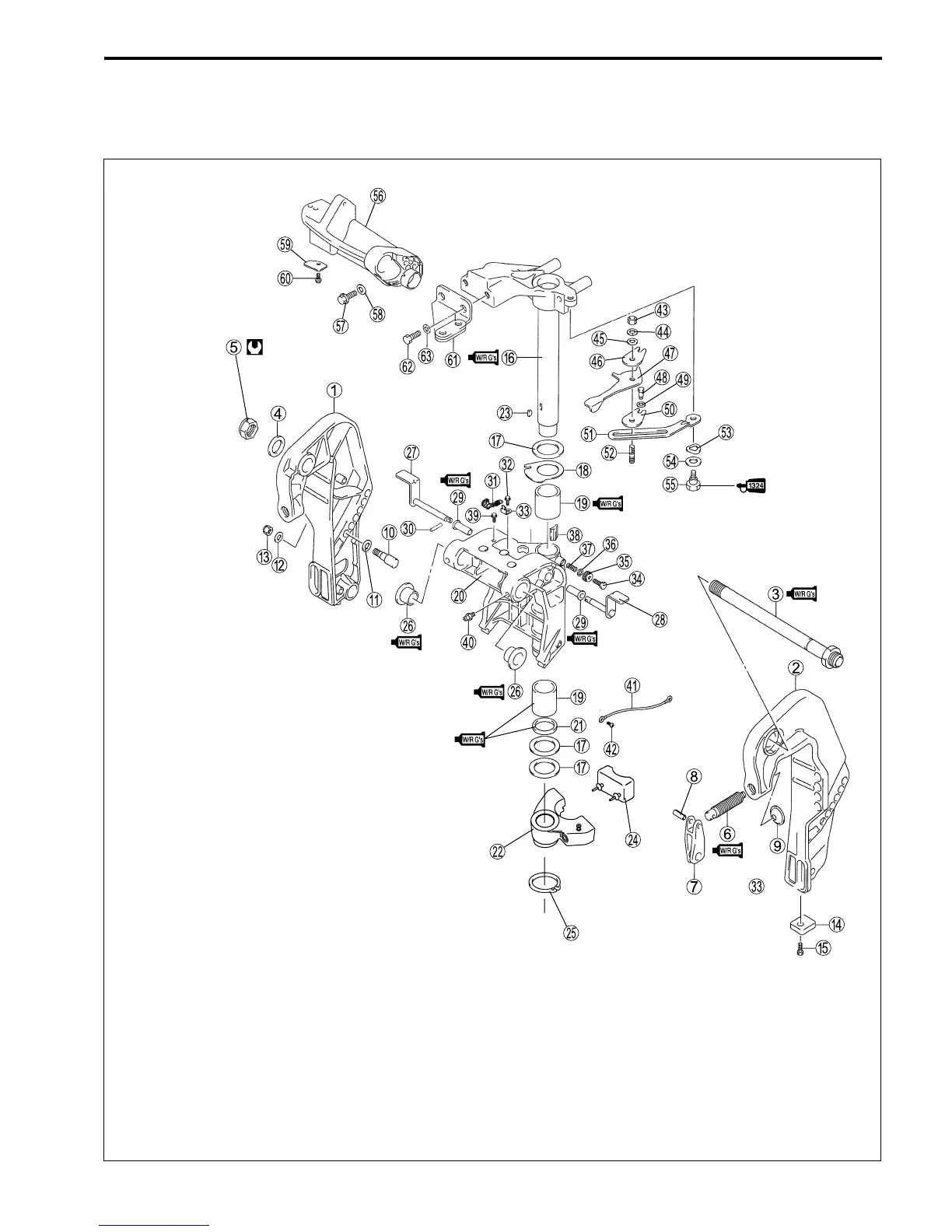

REASSEMBLY
Reassembly is reverse order of removal with special attention
to the following steps.
1 Clamp bracket STBD
2 Clamp bracket PORT
3 Clamp bracket shaft
4 Washer
5 Nut
6 Clamp screw
7 Clamp handle
8 Pin
9 Clamp plate
0 Tilt pin
A Washer
B Washer
C Nut
D Anode
E Bolt
F Steering Bracket
G Washer
H Upper plate
I Bush
J Swivel bracket
K Oil seal
L Lower mount bracket
M Key
N Lower thrust mount
O Circlip
P Bush
Q Tilt lock lever STBD
R Tilt lock lever PORT
S Bush
T Pin
U Tilt lock spring
V Bolt
W Plate
X Bolt
Y Cover
Z Washer
[ Spring
\ Steering adjuster
] Bolt
^ Grease nipple
a Bonding wire
b Screw
[Tiller handle model]
c Nut
d Washer
e Washer
f Steering lock plate
g Steering adjuster
h Bolt
i Washer
j Steering lock plate
k Steering adjuster plate
l Steering lock shaft
m Wave washer
n Washer
o Bolt
p Tiller handle bracket
q Bolt
r Washer
s Throttle cable plate
t Bolt
[R/T model]
u Steering bracket attachment
v Bolt
w Washer
