8-6 MID UNIT

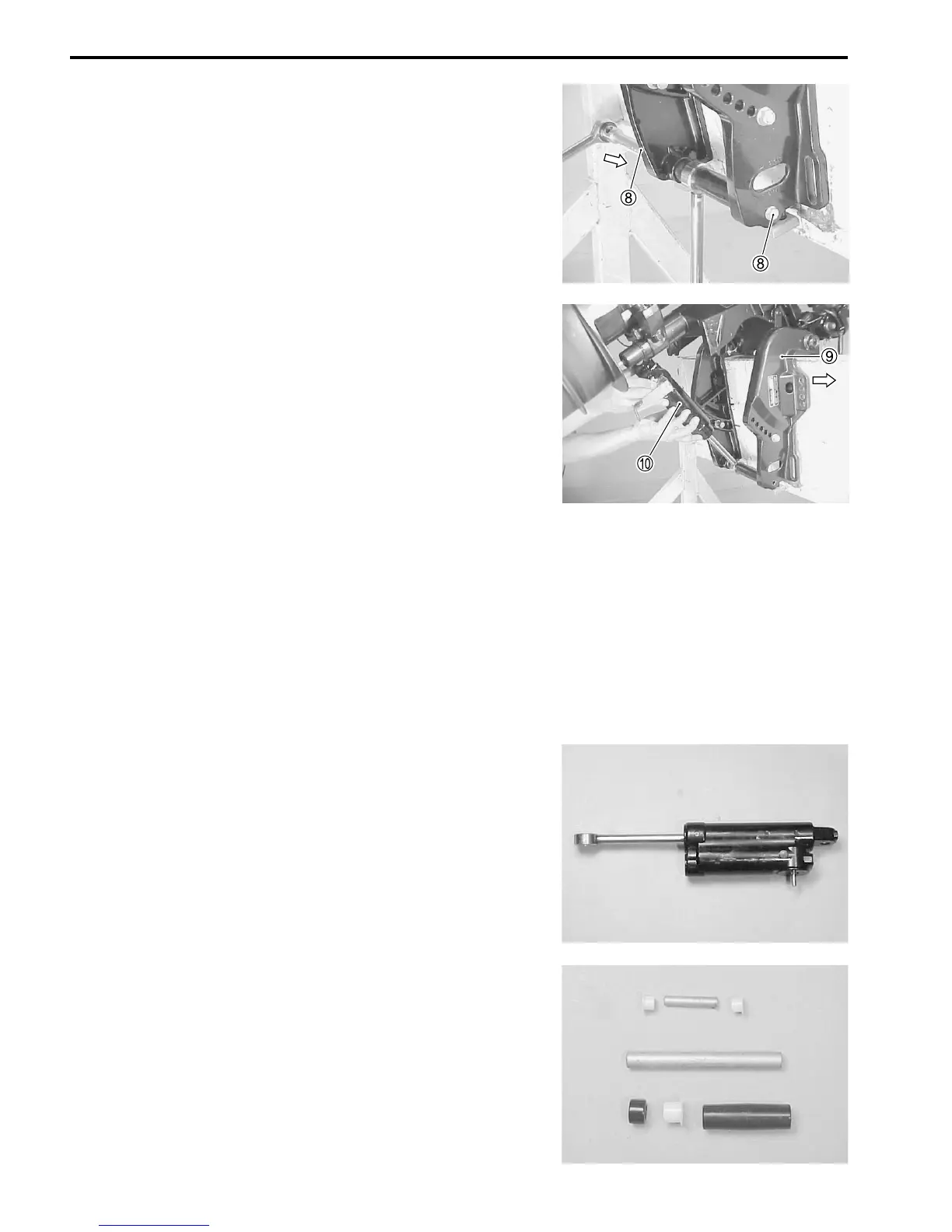

Slide the STBD clamp bracket 9 fully outward to the right hand
side.
Remove the gas cylinder 0 from between the clamp brackets.
INSPECTION
NOTE:
If any component is found to be excessively worn, cracked,
defective or damaged in any way, it must be replaced.
Gas assist tilt cylinder
Check gas assist tilt cylinder.
If cracks, defects or other damage is found, replace the cylin-
der assembly complete.
Bushings
Check all bushings.
If excessive wear or other damage is found, replace bushing.
If bushing fit is loose when installing, replace bushing.
Remove the tilt cylinder lower shaft bolts 8.
To Next Page
