6-8 RECOIL STARTER
• Install the friction plate 3 (with friction spring 4) and se-
cure it with the bolt 2.
Apply Thread Lock 1342 to the thread of the bolt.
INSTALLATION
Installation is reverse order of removal with special attention to
the following.
• Check to ensure that all removed parts are back in place.
• Check Neutral start interlock function.
NOTE :

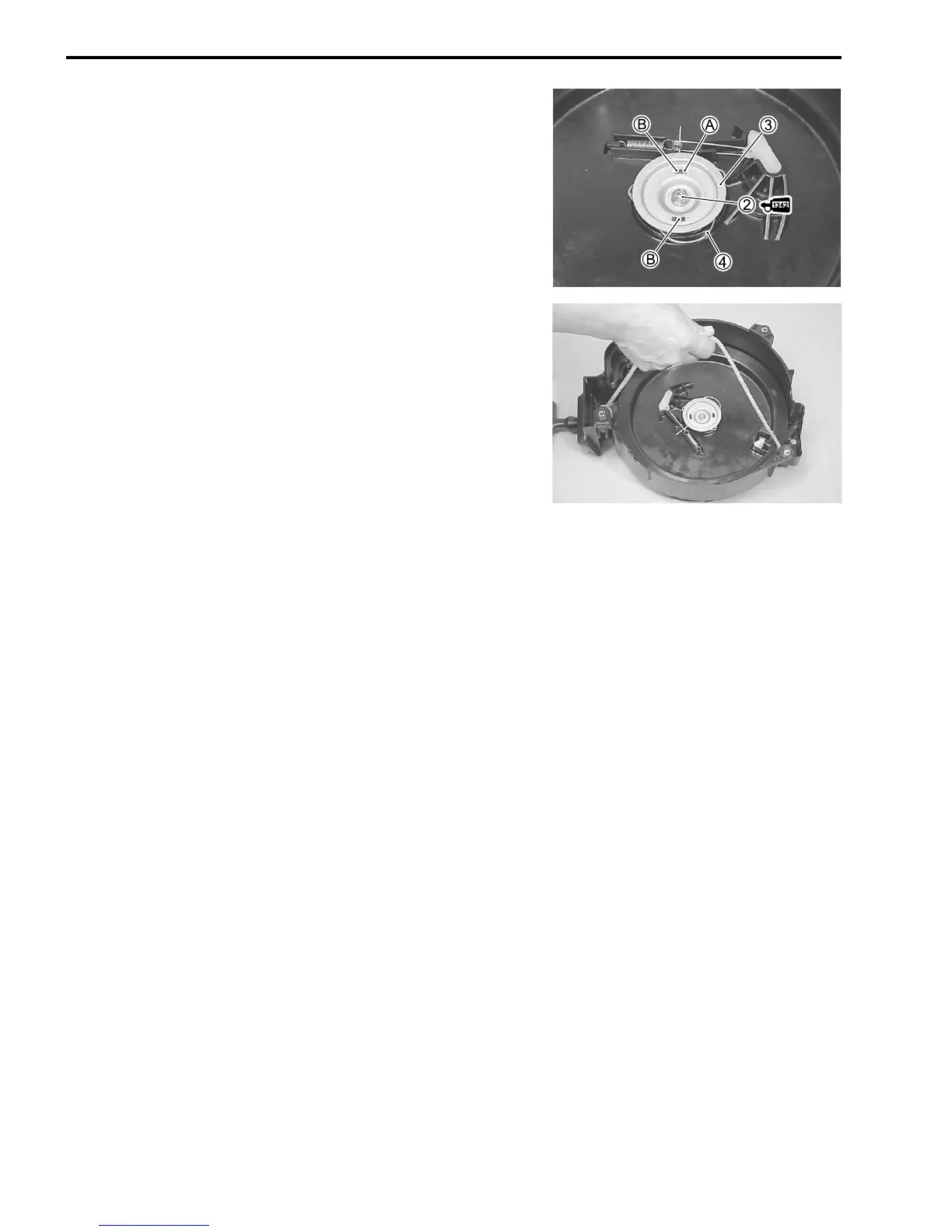

• Twist friction plate slightly to align holes
A
in plate with
square lugs
B
on center boss.
• After assembling, guide the rope into notch in reel and
rotate reel approximately 5 turns counterclockwise until
spring is tensioned.
