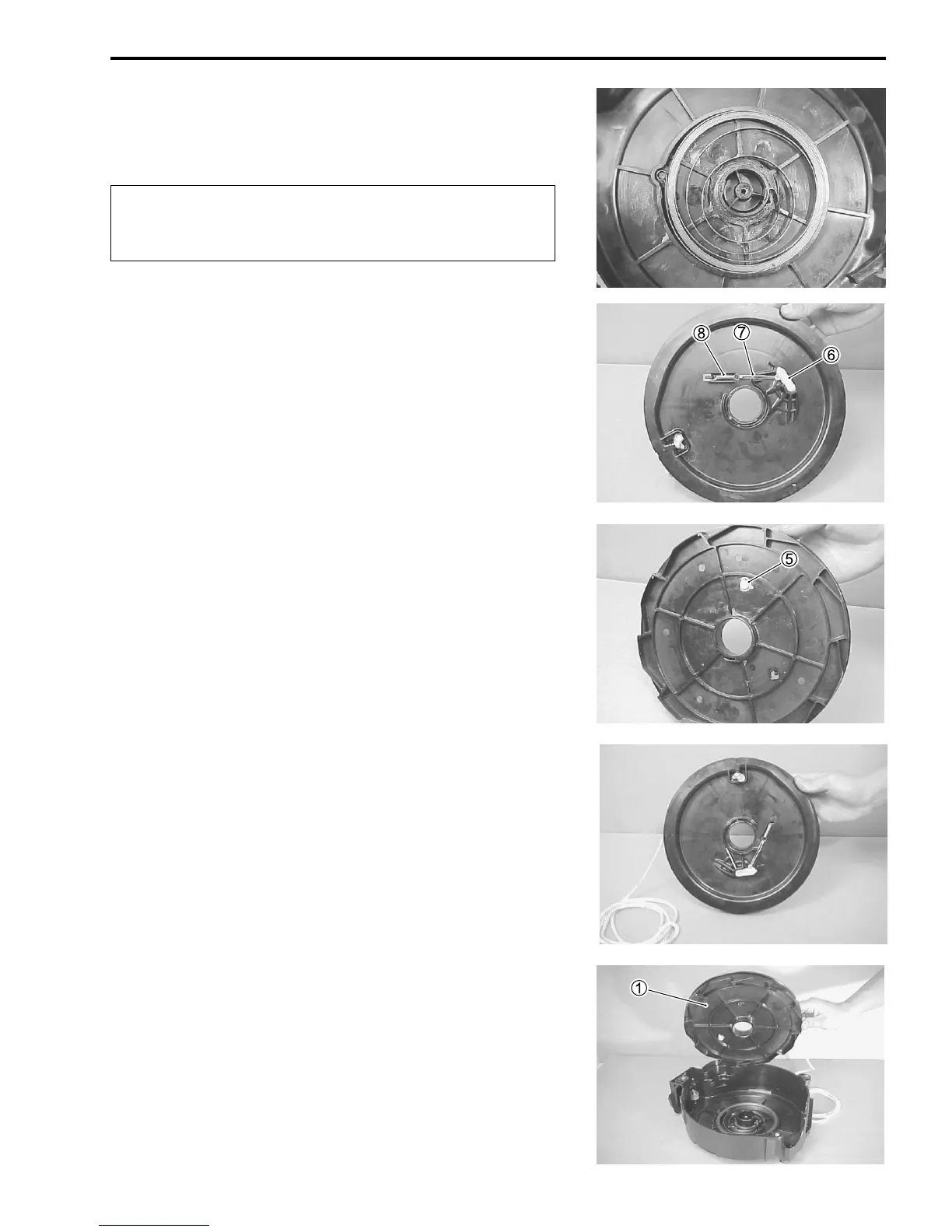

RECOIL STARTER 6-7
• Secure the outer end of the recoil spring 9 on the boss in
the recoil case A and wind spring inward towards the center
of the case in a counterclockwise direction.
Because of the coiled tension in the recoil spring, wear
safety glasses and hand protection when winding or
unwinding this components.
• Install the return spring 8, ratchet guide 7 and ratchet 6.
• Secure the ratchet with E-ring 5.
• Install the recoil rope.
• Install the reel 1.
NOTE :
Align groove in reel with bent end of spring.
