5-4 FUEL SYSTEM
4. Remove the E-ring and choke rod 4 from the bottom car-
buretor. (Tiller handle model)
6. Remove fuel pump. (See page 5-14)
5. Remove throttle link rod 5 from throttle cam.
Remove the bolt and fuel filter bracket.
CARBURETORS
"
Before servicing the fuel system, read and understand
“PRECAUTION ON FUEL SYSTEM SERVICE” in the pre-
vious section.

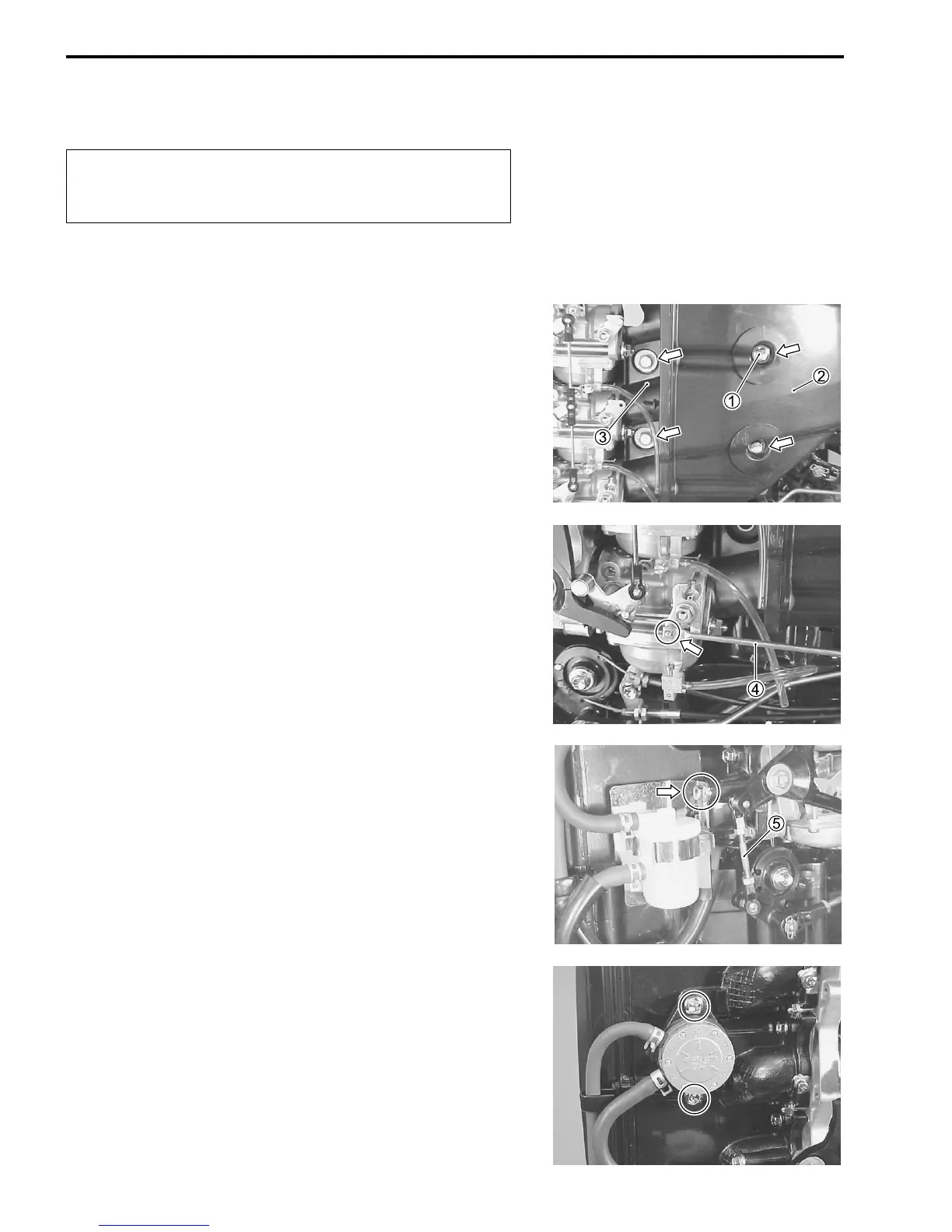

REMOVAL
1. Remove recoil starter. (Manual start model)
Remove flywheel cover. (Electric start model)
Remove the STBD side lower cover.
2. Remove the bolts 1 securing silencer case 2.
3. Remove the bolts securing the air silencer pipe 3 to crank
case.
