9-4 POWER TRIM AND TILT
POWER TRIM AND TILT UNIT
REMOVAL

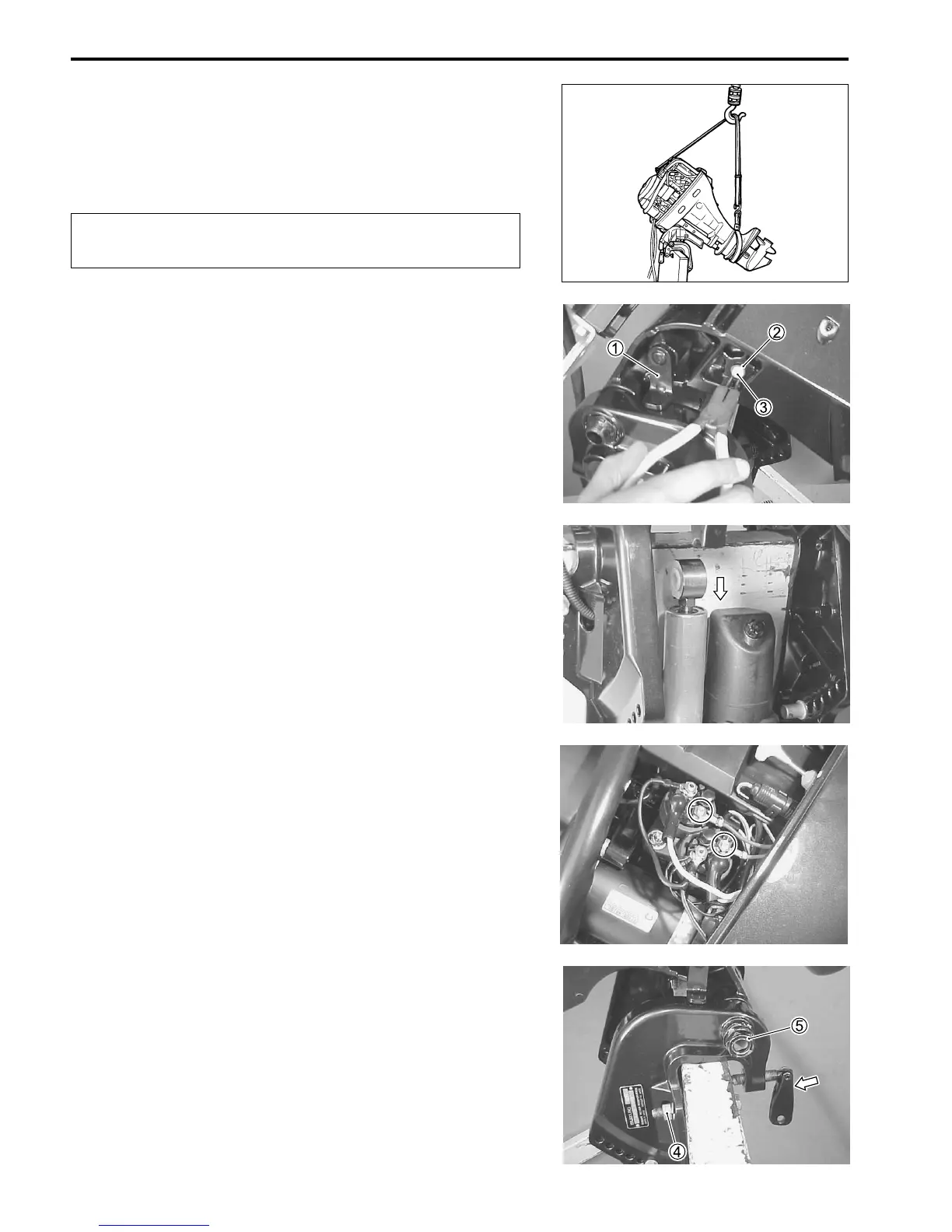

Raise the engine to the full tilt position and lower the manual tilt
lock levers 1.
"
During the following procedures, the engine must be
firmly secured and its weight fully supported. (see right)
Remove the tilt rod snap ring 2 and push tilt cylinder upper
shaft pin 3 out.
Lower tilt rod to full down position and disconnect the battery
cable.
Disconnect the PTT motor cable wire leads (G, Bl) from the
PTT relays.
Remove the PTT motor cable from engine lower cover.
Remove the two STBD motor mounting bolts 4.
Loosen the STBD clamp screw.
Loosen the clamp bracket shaft nut 5.
NOTE:
Complete removal of the clamp bracket shaft nut is not required.
Nut need only be loosened as far as the end of the shaft threads
to facilitate removal of the PTT unit.
