Suzuki DF 30 - Assembly & Installation

10-12 LOWER UNIT
ASSEMBLY & INSTALLATION
Assembly & Installation are reverse of disassembly with spe-
cial attention to following steps.

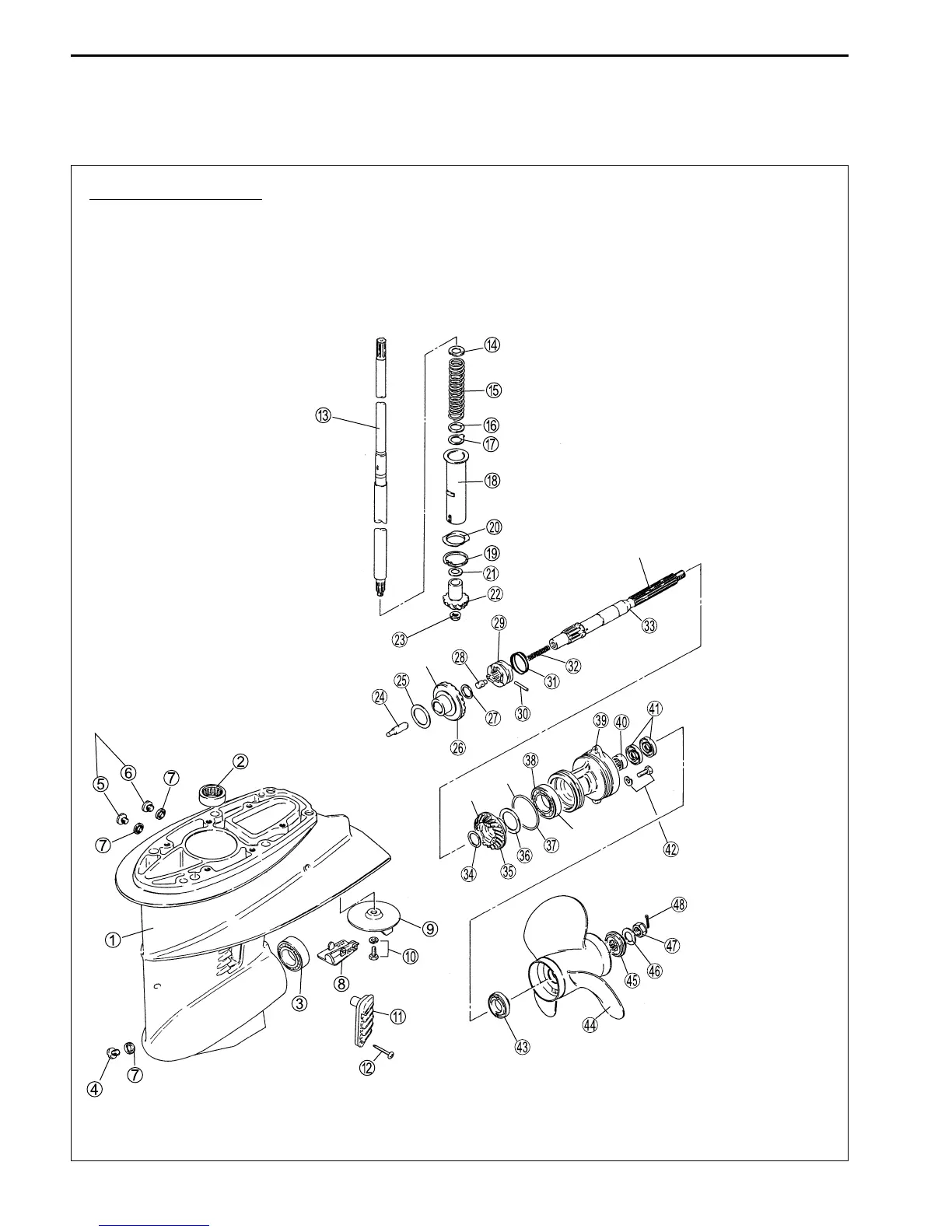

System construction
T Dog pin
U Dog spring
V Return spring
W Propeller shaft
X Thrust washer
Y Reverse gear
Z Shim
[ O-ring
\ Bearing
] Propeller shaft
bearing housing
^ Bearing
a Oil seal
b Bolt
c Propeller bush
stopper
d Propeller
e Spacer
f Washer
g Nut
h Cotter pin
1 Gearcase
2 Bearing
3 Bearing
4 Drain plug
5 Level plug
6 Flush plug
7 Gasket
8 Sub water filter
9 Trim tab
0 Bolt
A Water filter
B Screw
C Driveshaft
D Washer
E Spring
F Thrust washer
G Washer
H Preload spring collar
I Circlip
J Barrier
K Back up shim
L Pinion gear
M Nut
N Push rod
O Shim
P Forward gear
Q Thrust washer
R Push pin
S Clutch dog shifter
18 N
.
m
(1.8 kg
.
m, 13.0 lb-ft)
13 N
.
m (1.3 kg
.
m, 9.5 lb-ft)
13 N
.
m (1.3 kg
.
m, 9.5 lb-ft)
18 N
.
m
(1.8 kg
.
m, 13.0 lb-ft)
8 N
.
m
(0.8 kg
.
m, 5.8 lb-ft)
M
K
I
!
!
!
!
M
!
K
K
K
K
M
M
K
K
