LOWER UNIT 10-13
8 N
.
m
(0.8 kg
.
m, 5.8 lb-ft)
23 N
.
m
(2.3 kg
.
m, 16.5 lb-ft)

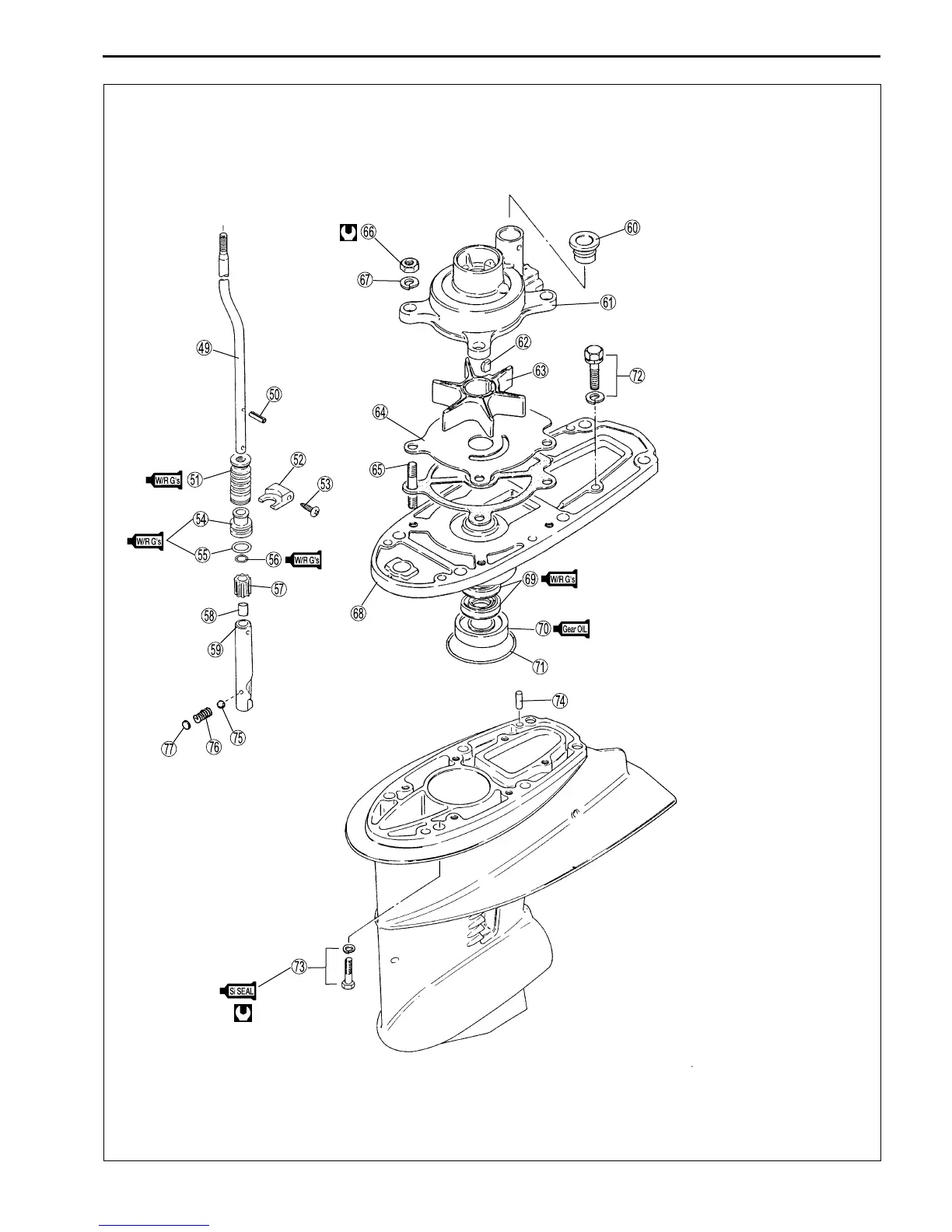

i Shift rod
j Pin
k Boot
l Stopper
m Screw
n Shift rod guide
o O-ring
p O-ring
q Magnet
r Holder
s Shift cam
t Grommet
u Water pump case
v Key
w Water pump impeller
x Under panel
y Stud bolt
z Nut
{ Washer
| Driveshaft bearing housing
} Oil seal
~ Bearing
; O-ring
: Bolt
, Bolt
. Dowel pin
/ Ball
+ Spring
* Notch plate
