MID UNIT 8-3
Remove cotter pin and washer from shift link rod.
Remove shift link rod from shift lever.
Disconnect emergency stop switch lead wire.
Disconnect engine start button lead wire.
Remove two bolts and handle bracket.

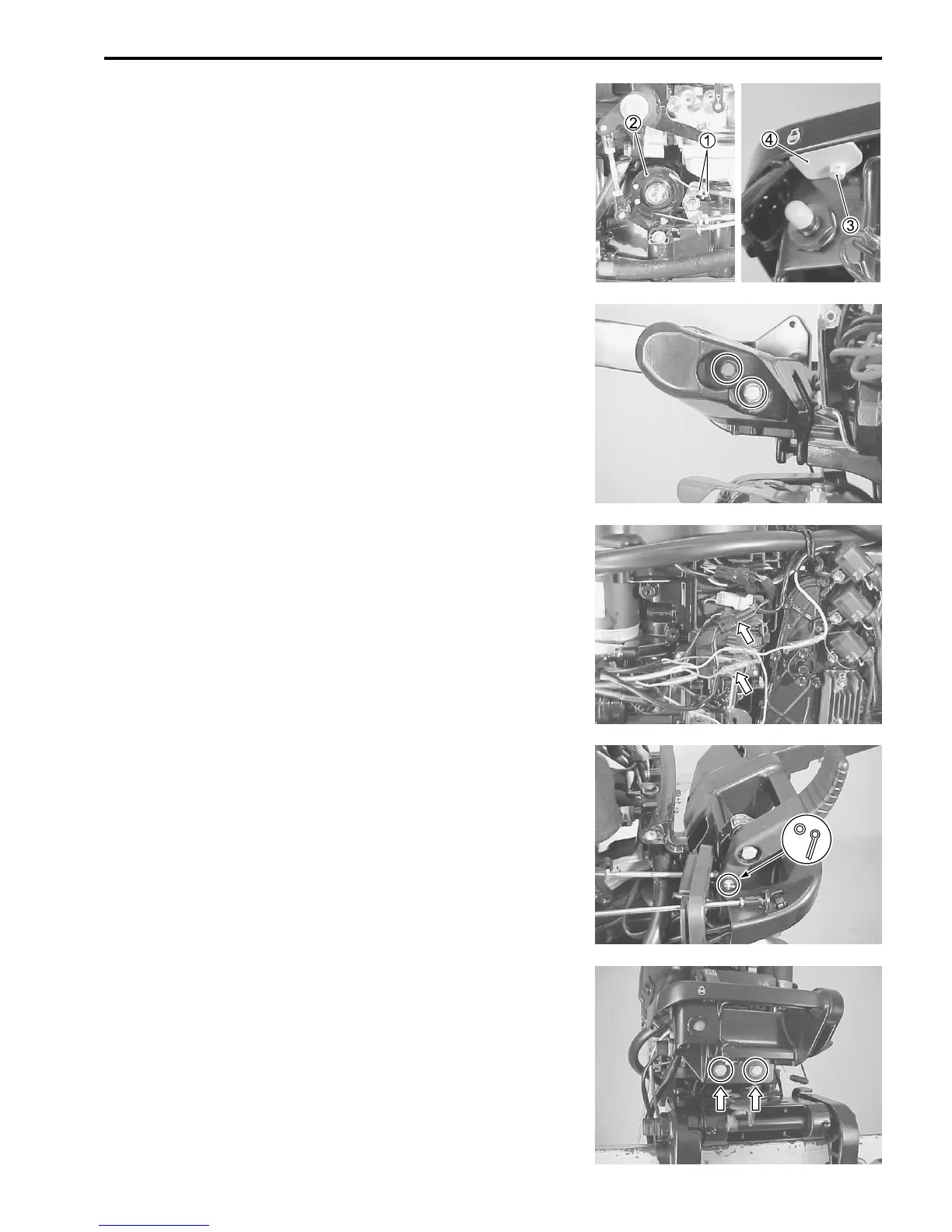

TILLER HANDLE / HANDLE BRACKET
REMOVAL
Remove the STBD side lower cover.
Loosen lock nut 1.
Remove throttle cables from throttle drum 2.
Remove bolt 3 and plate 4.
Remove two bolts and handle cover.
Remove tiller handle and throttle cable assembly.
