ELECTRICAL 4-5
190 N
.
m
(19.0 kg-m, 137.5 Ib.-ft.)
REMOVAL / INSTALLATION
REMOVAL
Prior to removing electrical parts :
• Disconnect battery cables from battery.
• Disconnect spark plug cap from all spark plugs.
Battery charge coil
• Remove flywheel. (See page 3-17.)
• Remove three (3) screws securing the battery charge coil.
• Disconnect charge coil lead wire connectors from rectifier &
regulator and CDI unit.
1 Bolt (1)
2 Washer (1)
3 Key (1)
4 Flywheel (1)
5 Battery charge coil (1)
6 Screw (3)
7 Rectifier & regulator (1)
8 Bolt (2)
9 Fuse case (1)

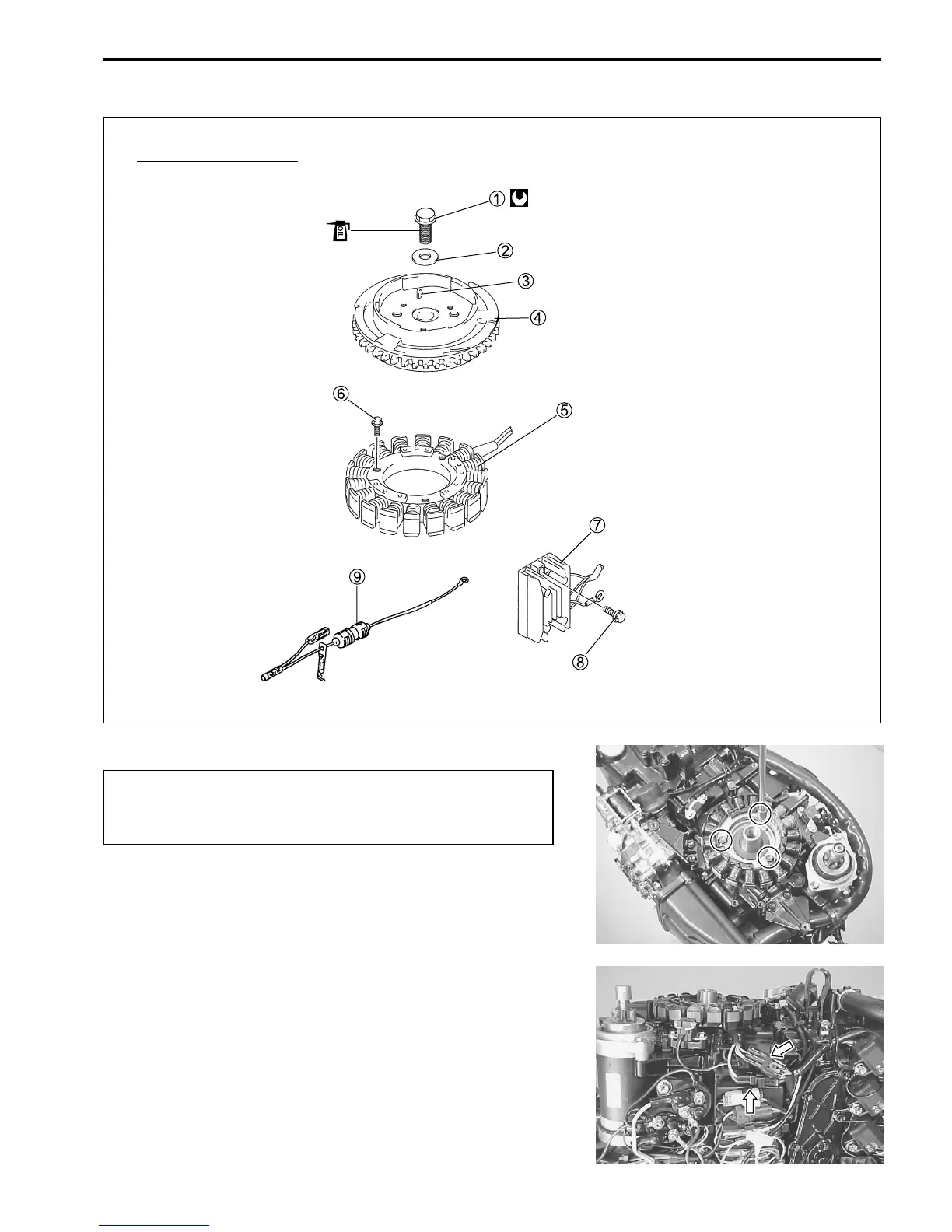

System construction
To Next Page
