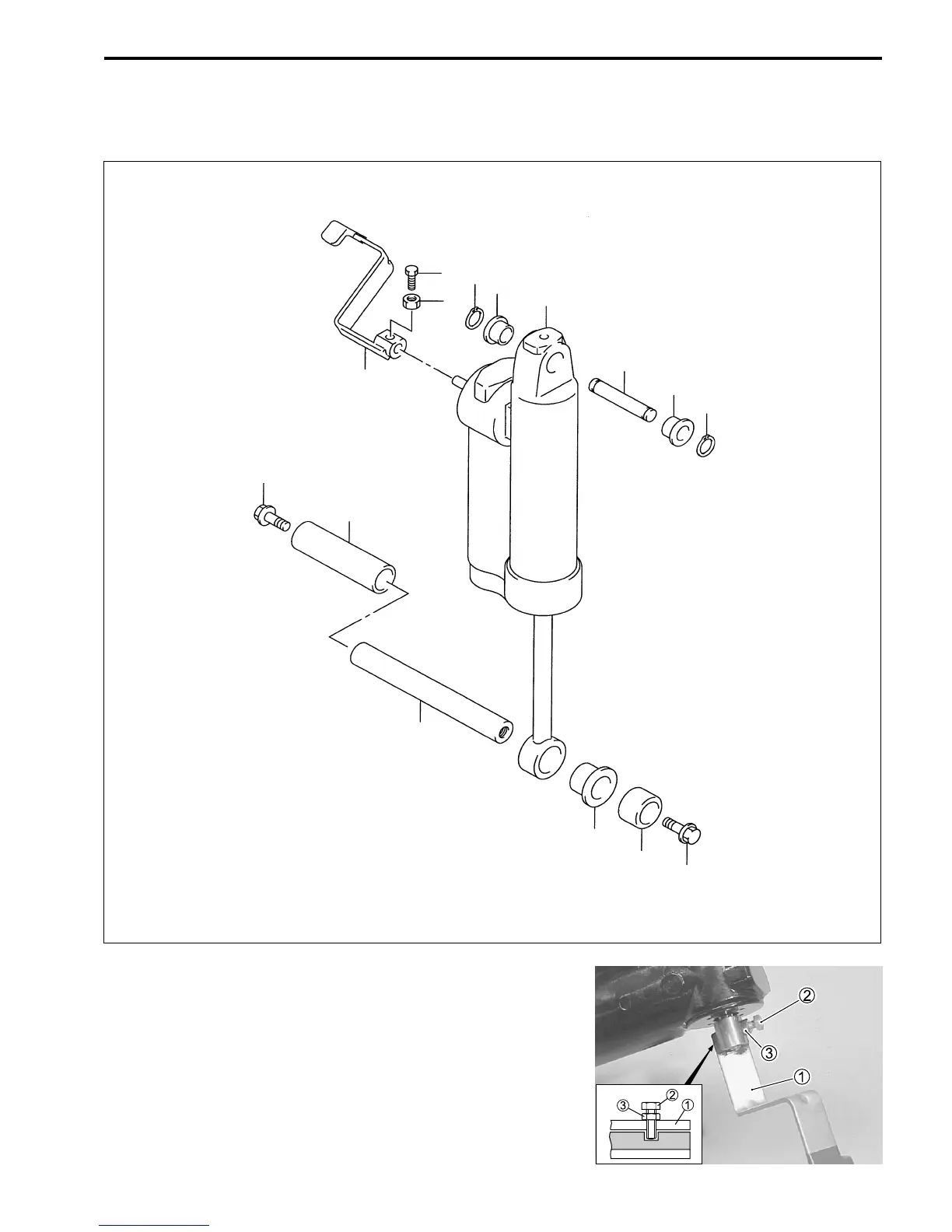

MID UNIT 8-7
1
2
3
4
5
6
7
8
9
10
11
12
7
12
10
INSTALLATION
Installation is reverse order of removal with special attention to
following steps.
Release lever
Install release lever 1, bolt 2 and lock nut 3 as shown in
figure.
Tighten lever bolt 2 and lock nut 3 securely.
1. Release lever
2. Lower coller (STBD)
3. Lower coller (PORT)
4. Gas cylinder
5. Tilt cylinder lower shaft
6. Tilt cylinder upper shaft
7. Upper bush
8. Lower bush
9. Bolt
10. Bolt
11. Nut
12. Snap ring
