DF25/30 “K3” (2003) MODEL 12-13
Ignition coil
Tester probe connection
Red (+) Black (–)
No.1
No.2 High tension cord Black
No.3
3. Measure resistance.
Secondary coil resistance : 4.8 – 7.2 k
If measurement exceeds specification, replace ignition coil.
NOTE:
Primary coil resistance has not been changed.
ENGINE CONTROL AND ELECTRICAL

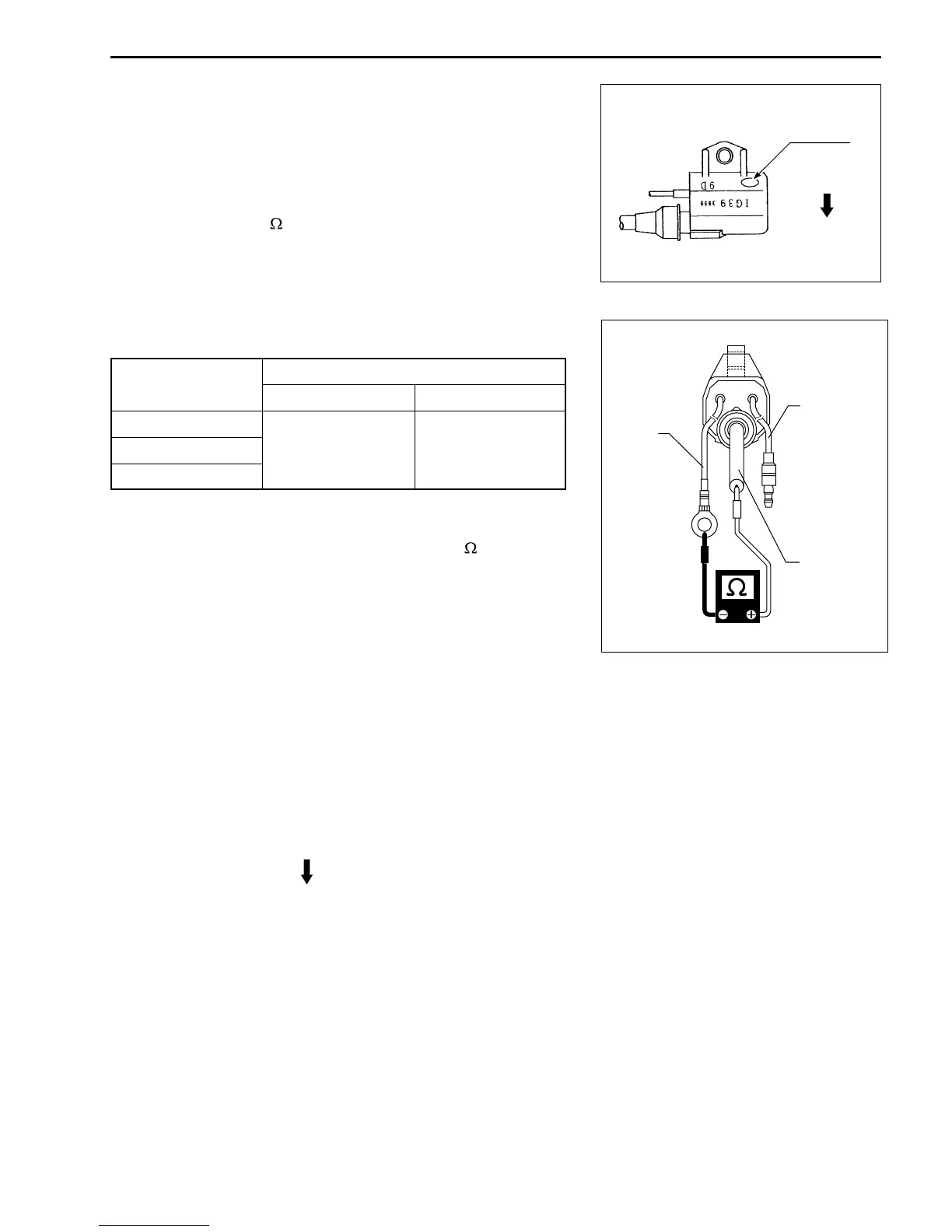

IGNITION COIL
The ignition coil has been changed in secondary coil resistance.
[[
[[
[ 09930-99320 : Digital tester
UU
UU
U Tester range :
(Resistance)
Secondary side
1. Remove spark plug cap from high tension cord.
2. Connect tester probe to Black coil lead wire and high ten-
sion cord as shown.
CDI UNIT
The CDI unit has been changed in internal circuit for buzzer.
Early: Continuous signal is output to buzzer when the cau-
tion system activates.
Late : Intermittent signals are output to buzzer when the cau-
tion system activates.
NOTE:
The buzzer sounding pattern when the caution system activates
is the same as the pattern on the earlier year model.
White
Black
H
.
T cord
I.D.mark
Early : None
Late : S12
To Next Page
