8-20 MID UNIT
SWIVEL BRACKET, STEERING
BRACKET AND CLAMP BRACKET

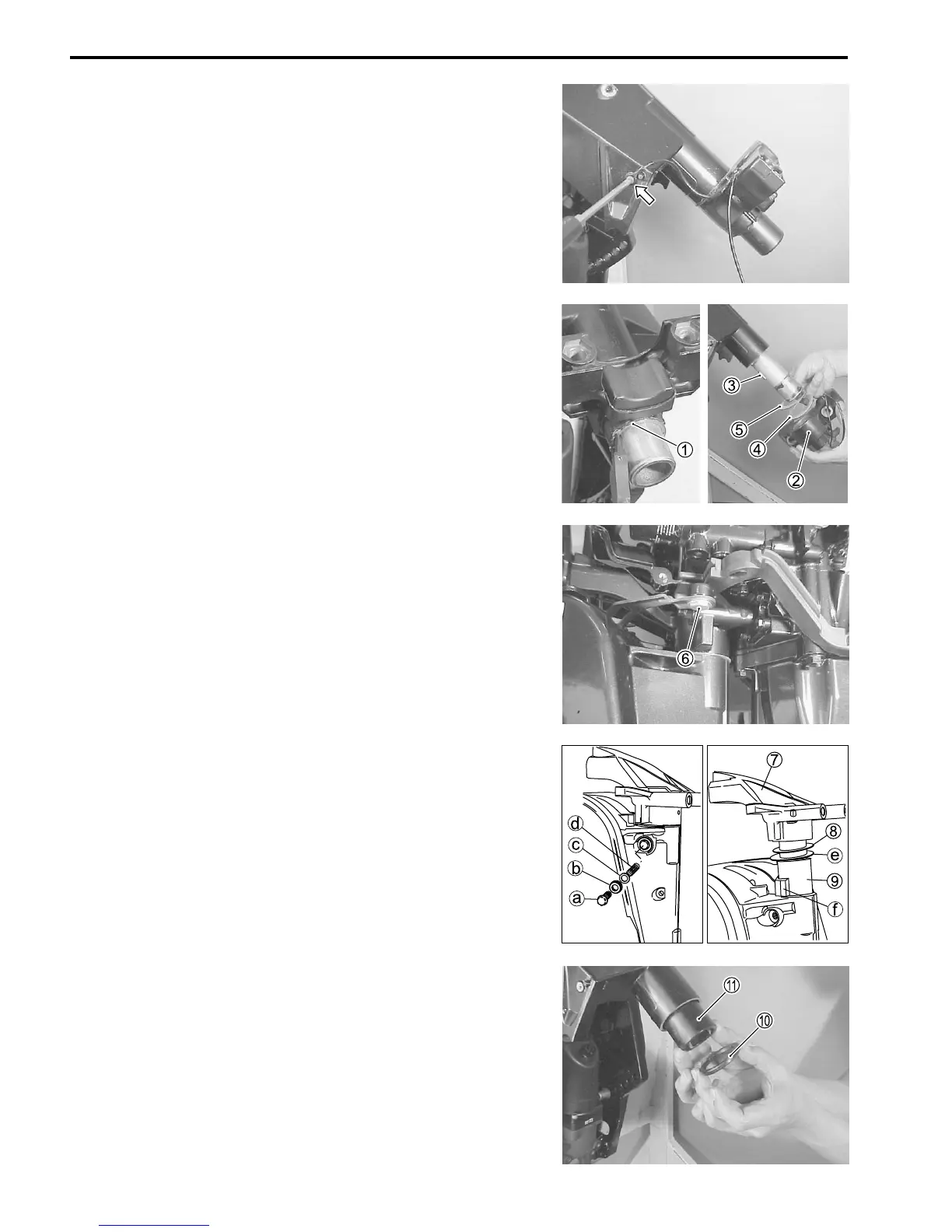

REMOVAL
Remove driveshaft housing / oil pan. (See page 8-9)
Remove screw and bonding wire from swivel bracket.
Remove the bolt 6 securing steering adjuster plate to the steer-
ing bracket. (Tiller handle model)
Remove swivel bracket seal 0 and lower bush A.
Remove circlip 1.
Remove lower mount bracket 2 from the steering shaft.
Account for key 3, shim 4 and washer 5.
NOTE:
Before removing lower mount bracket, tear black paint off from
pilot shaft lower portion with sand paper for easy removing.
Remove steering adjuster bolt a, cover b, washer c and spring
d.
Lift steering bracket 7 upward to remove from swivel bracket.
Remove washer 8, plate e, upper bush 9 and steering ad-
juster f from bracket.
