Suzuki DF 30 - Disassembly

FUEL SYSTEM 5-7
NOTE :
• Only for pilot screw covered type carburetor :
Do not remove cover and pilot screw.

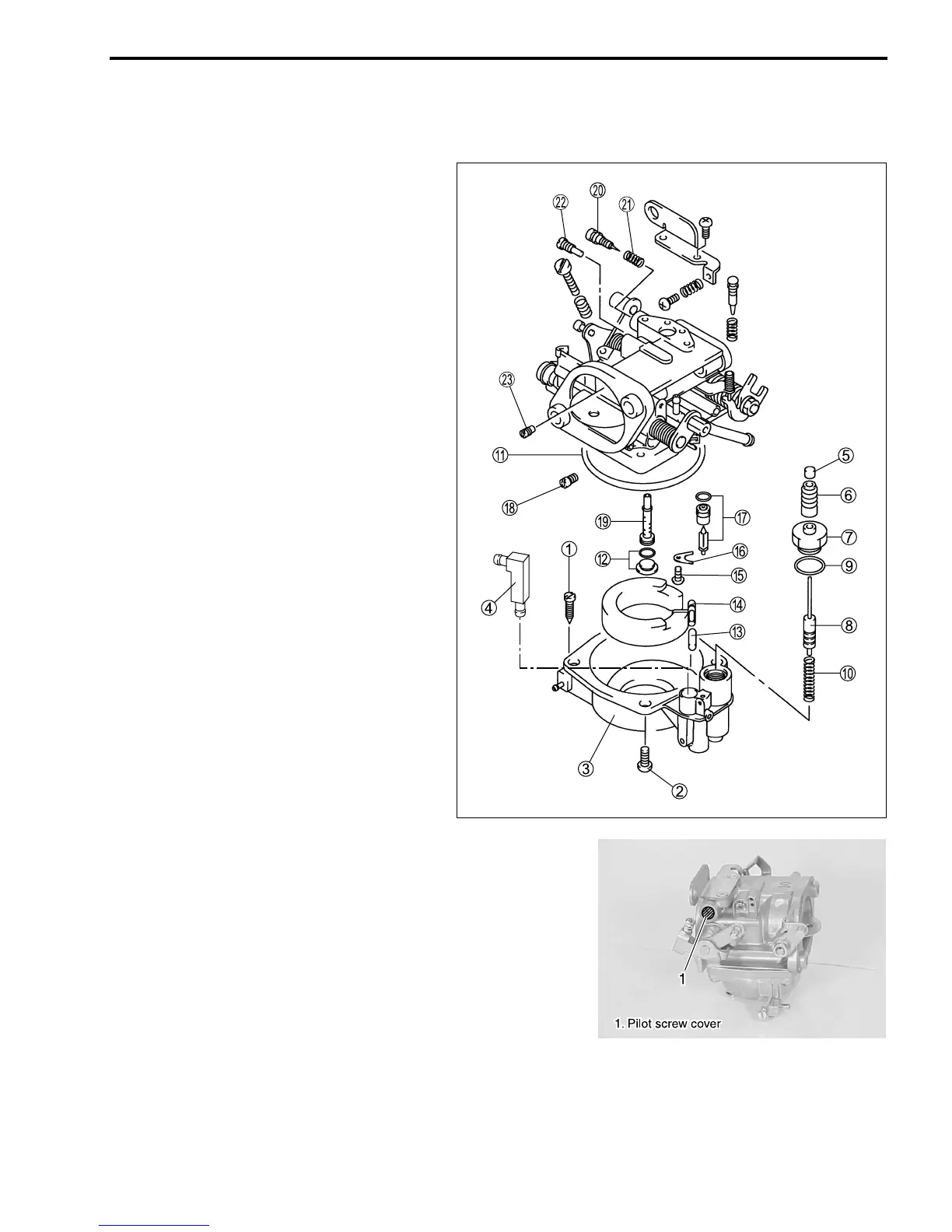

DISASSEMBLY
When disassembling carburetor, refer to the construction dia-
gram.
Remove :
• Drain screw 1
• Screw 2
• Float chamber 3
• Tube 4
• Cap 5
• Cap 6
• Holder 7
• Plunger 8
• O-ring 9
• Spring 0
• Float chamber gasket A
• Main nozzle cap and O-ring B
• Float pin C
• Float D
• Screw E
• Plate F
• Needle valve assembly G
• Main jet H
• Main nozzle I
• Pilot screw J
• Spring K
• Pilot jet L
• Main air jet M
