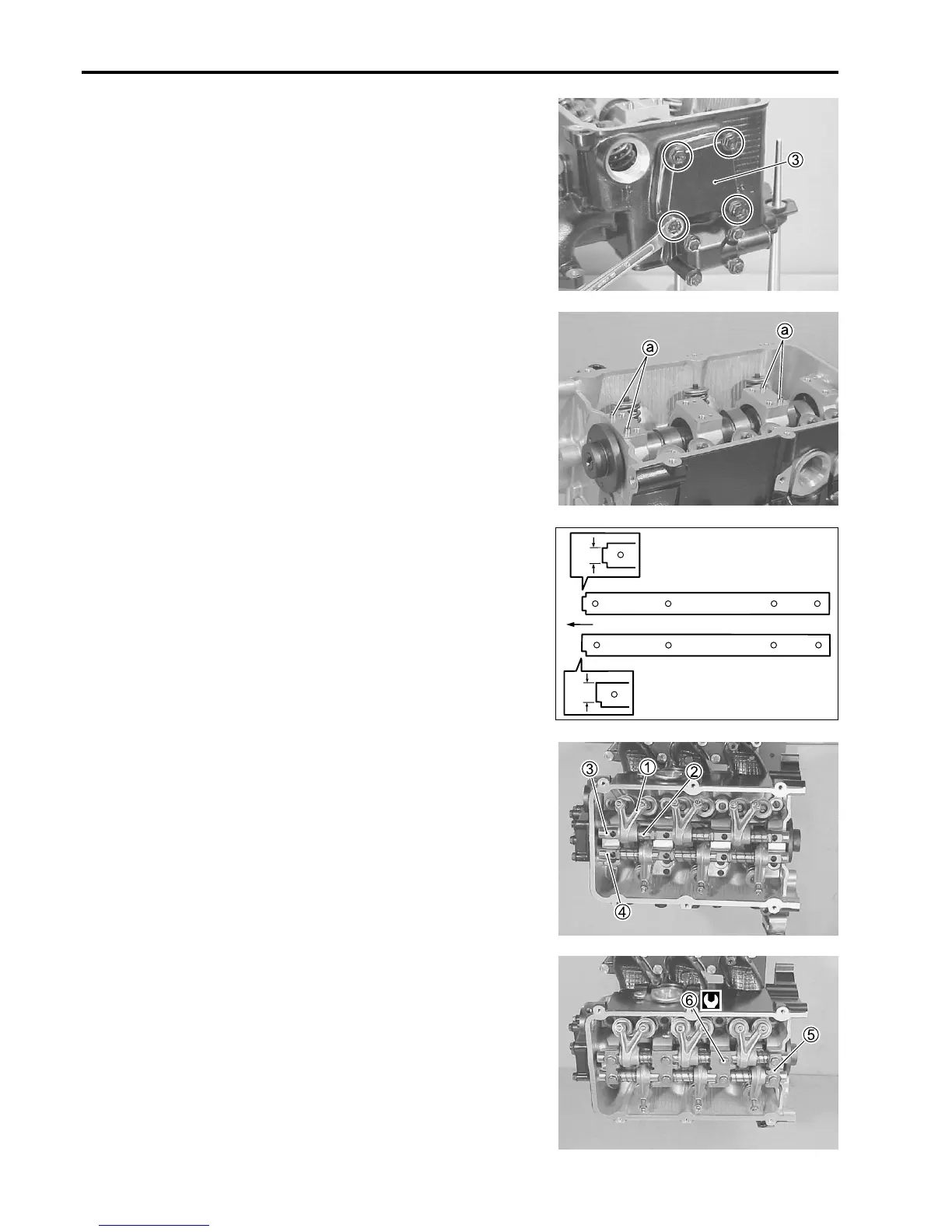

7-36 POWER UNIT
ROCKER ARM / SHAFT
Install dowel pins a.
Install gasket and upper cylinder head cover 3, then tighten
bolts securely.
Install rocker arm shaft breackets 5, and bolts 6, then tighten
rocker arm shaft bolts securely.
! Rocker arm shaft bolt : 19 N
.
m (1.9 kg-m, 13.5 lb.-ft.)
Apply engine oil to rocker arms and rocker arm shaft.
Install rocker arms 1, rocker arm springs 2, intake rocker arm
shaht 3 and exhaust rocker arm shaft 4.
NOTE:
• Reassemble each rocker arm to its original position.
• Intake rocker arm shaft differs from exhast one in shape as
shown. When assembling, make sure of shaft shape and in-
stalling direction.
Intake rocker arm shaft
Exhaust rocker arm shaft
Flywheel side
To Next Page
