7-16 POWER UNIT

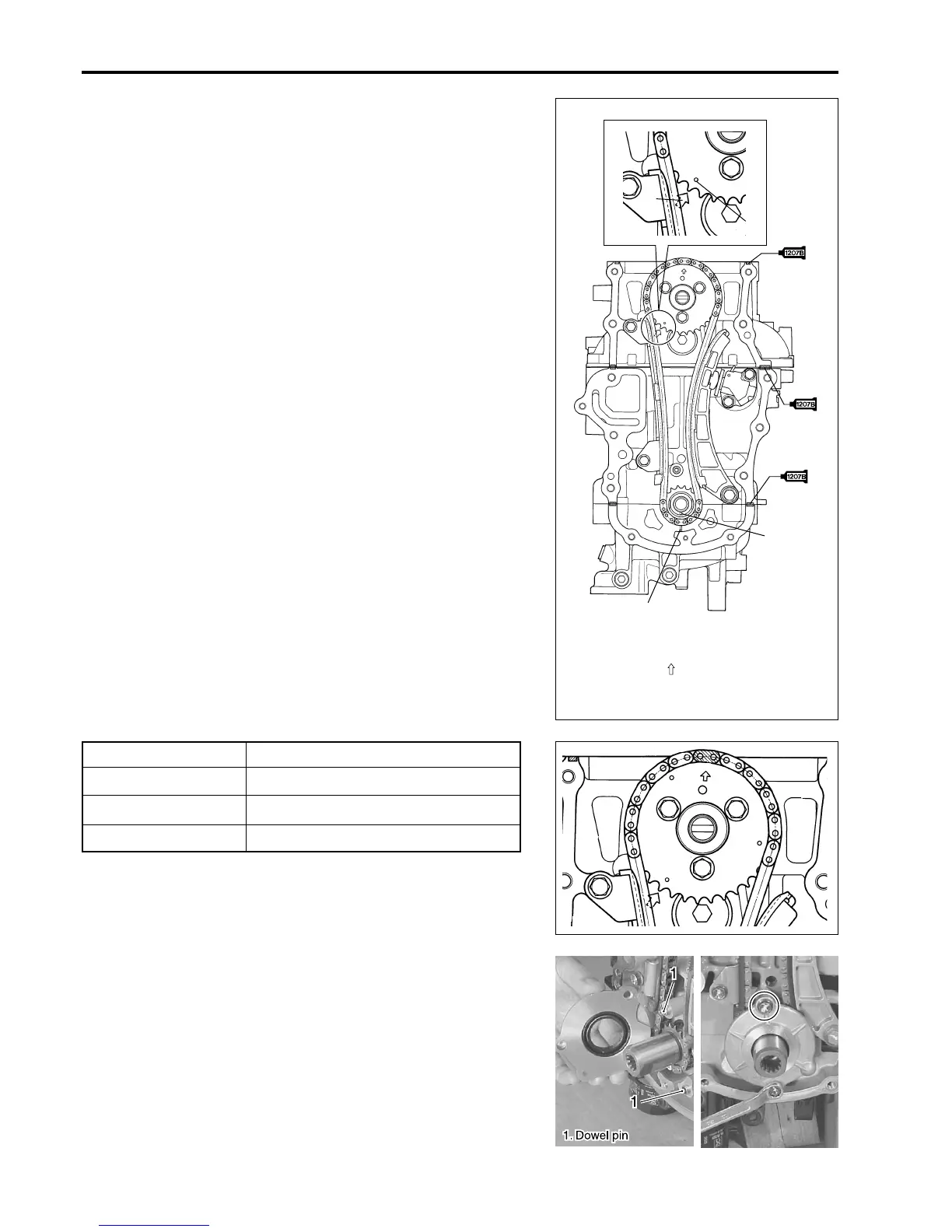

(10) Turn crankshaft normal running direction 2 revolutions and
check that match marks are aligned as shown in figure.
NOTE:
Before installing power unit, apply sealant to hatched part (6
parts) shown in the illustration right.
C
99000-31140 : Suzuki Bond 1207B
(11) Adjust valve clearance (see page 2-9)
To bring each piston to Top Dead Center (TDC) on com-
pression stroke, align each match mark on camshaft sprocket
with match mark on cylinder head block.
(12) Apply oil to oil seal lip.
Install dowel pins and under oil seal housing, then tighten
bolts securely.
Match mark TDC cylinder number
• 1 No. 1 cylinder
• 2 No. 2 cylinder
• 3 No. 3 cylinder
1
2
3
1
2
3
4
1
1. Match mark ( • 1) on camshaft sprocket
2. Match mark ( ) on cylinder head
3. Match mark on crank shaft
4. Match mark on crankcase
To Next Page
