7-32 POWER UNIT

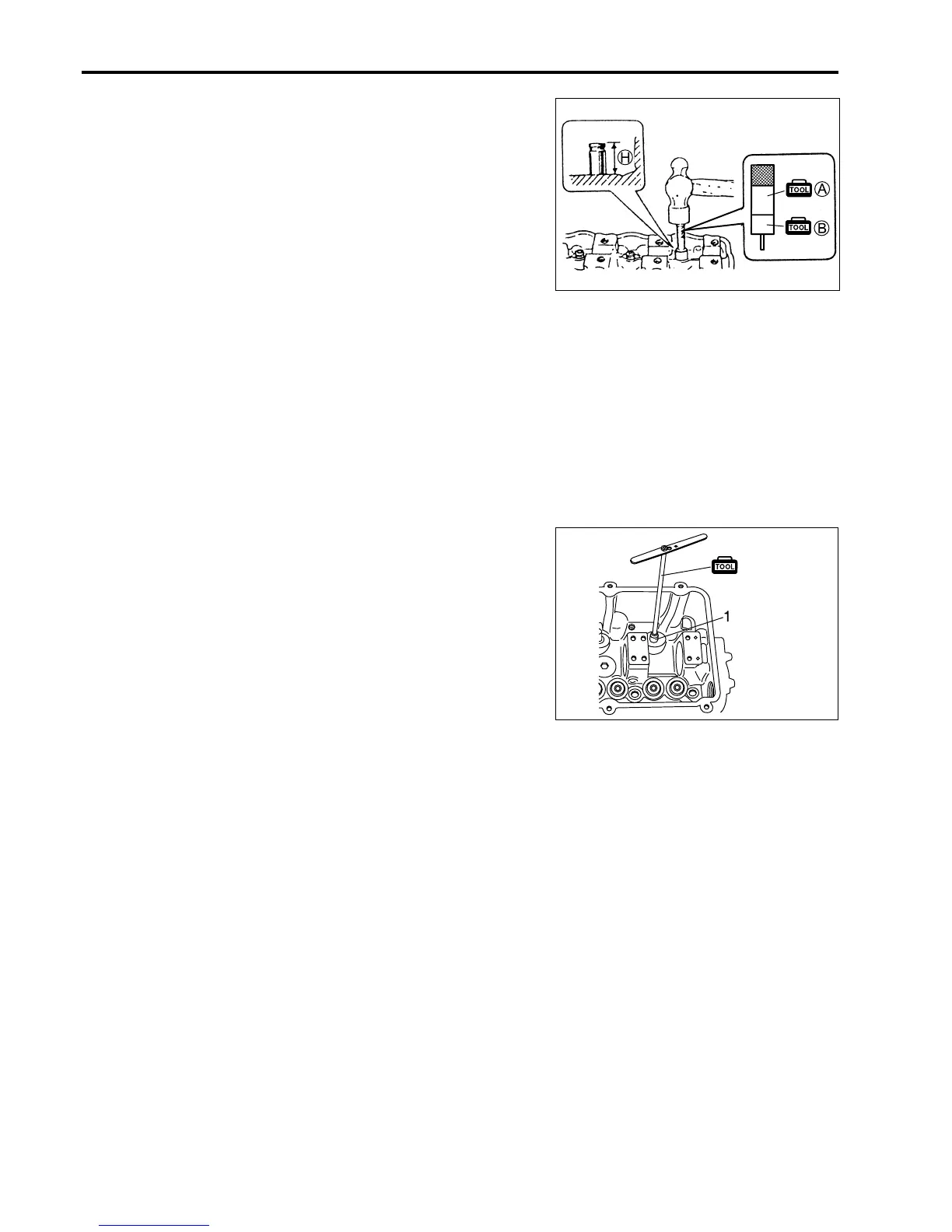

[ 09916-58210 : Valve guide installer handle A
09917-88230 : Valve guide installer attachment B
Valve guide protrusion H
Standard :
IN & EX 14.0 mm (0.55 in.)
(4) Ream valve guide bore with «
5.5 mm reamer.
[ 09916-34550 : Valve guide reamer (
««
««
«
5.5 mm)
09916-34542 : Reamer handle
NOTE:
Clean and oil valve guide bore after reaming.
(3) Install valve guide to cylinder head.
• Heat cylinder head to a temperature of 80 – 100°C (176
– 212°F).
Apply heat uniformly so that head will not be distorted.
• Use special tools to drive new valve guide into hole.
Drive in new valve guide until special tool (valve guide in-
staller attachment) contacts cylinder head.
• After installing, check valve guide protrusion
H.
1. valve guide
