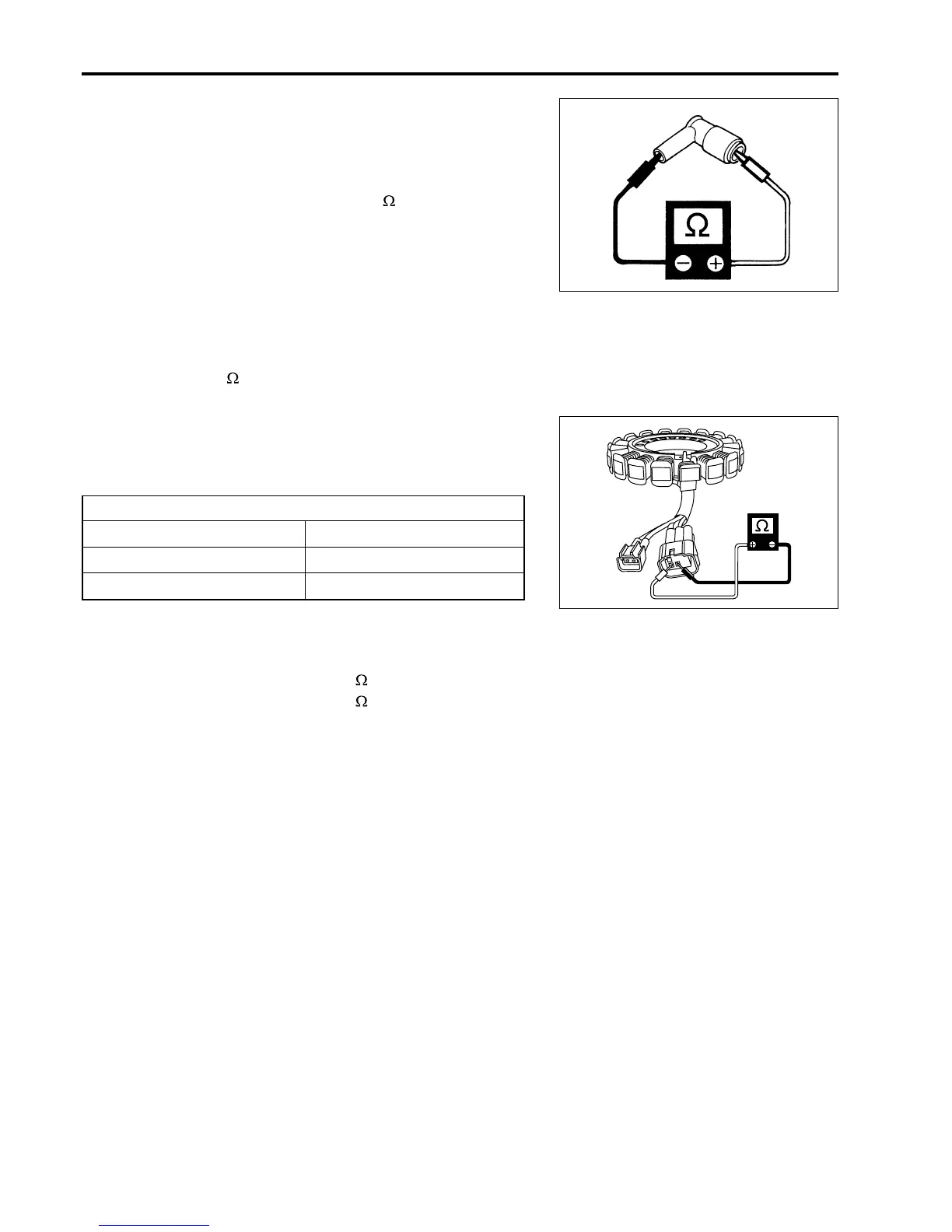

3-8 ENGINE CONTROL
Tester probe connection
Red (+) Black (–)
White
Brown Green
Green
Spark plug cap
1. Remove spark plug cap from high tension cord.
2. Connect tester probes to both contact ends of cap.
3. Measure resistance.
Spark plug cap resistance : 4 – 6 k
If measurement exceeds specification, replace spark plug cap.
POWER SOURCE COIL
[[
[[
[ 09930-99320 : Digital tester
UU
UU
U Tester range :
(Resistance)
1. Disconnect power source coil lead wire connector from CDI
unit.
2. Connect tester probe to coil lead wires as shown.
3. Measure resistance
Power source coil resistance :
White – Green 10.1 – 15.1
Brown – Green 10.1 – 15.1
If measurement exceeds specification, replace power source coil.
