ENGINE CONTROL 3-17

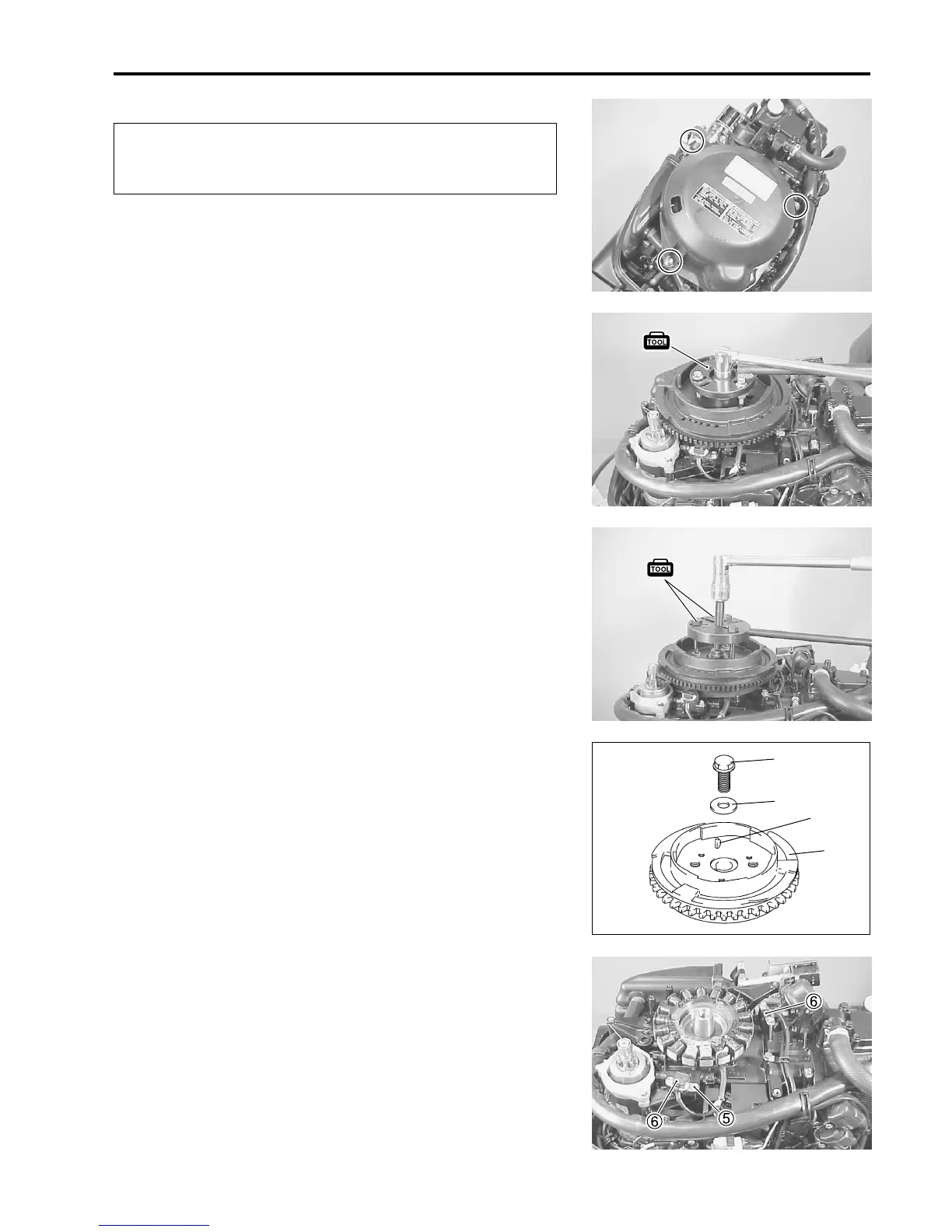

REMOVAL
Prior to removing Flywheel :
• Disconnect battery cables from battery.
• Remove all spark plug caps from the spark plug.
1. Remove flywheel cover. (Electric start model)
Remove recoil starter. (Manual start model)
2. Loosen flywheel bolt 2 – 3 turns.
[ 09930-48720 : Flywheel holder
NOTE:
Do not remove flywheel bolt at this time.
This bolt prevents damage to the crankshaft when using flywheel
remover tools.
3. Using special tools, loosen flywheel from crankshaft.
[[
[[
[ 09930-39411 : Flywheel remover
09930-39420 : Flywheel remover bolt
4. Remove flywheel bolt 1, washer 2, flywheel 3 and key 4.
5. Remove screws 5 and CKP sensors 6, then disconnect
CKP sensor connector.
1
2
3
4
