4-18 ELECTRICAL
3 – 4.5N
.
m
(0.3 – 0.45kg
.
m)

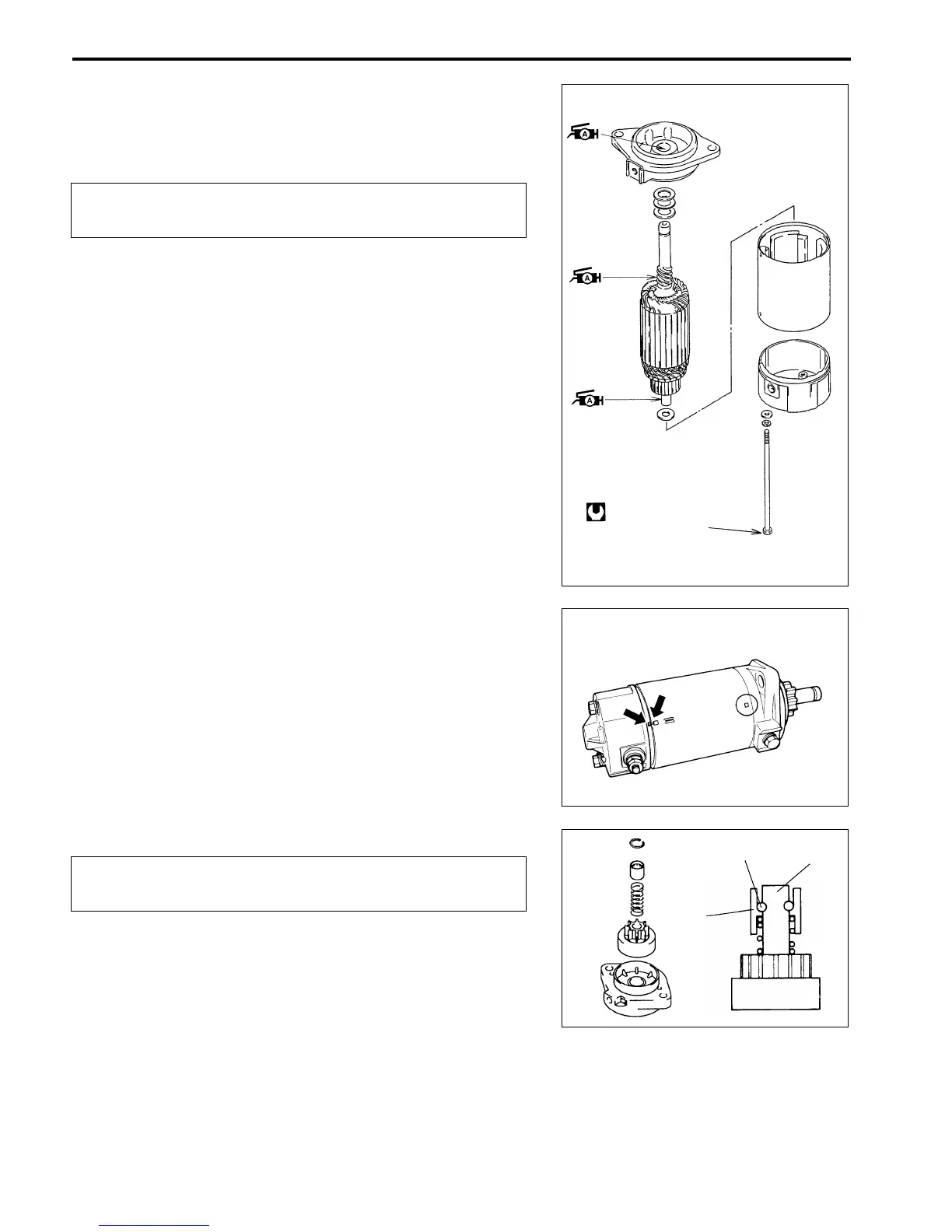

ASSEMBLY
Assembly is reverse of disassembly with special attention to fol-
lowing steps.
When installing armature, exercise care to avoid break-
ing brushes.
Apply grease to armature shaft and shaft holes.
W 99000-25010 : Suzuki Super Grease “A”
Align the notch in the cover (Front & Rear) with the tab on the
stator when assembling.
"
Wear safety grasses when disassembling and reassem-
bling stopper ring.
Install pinion, spring, pinion stopper and stopper ring.
NOTE:
Make sure stopper ring
1
fit tightly in pinion stopper
2
and
armature shaft
3
.
1
2
3
To Next Page
